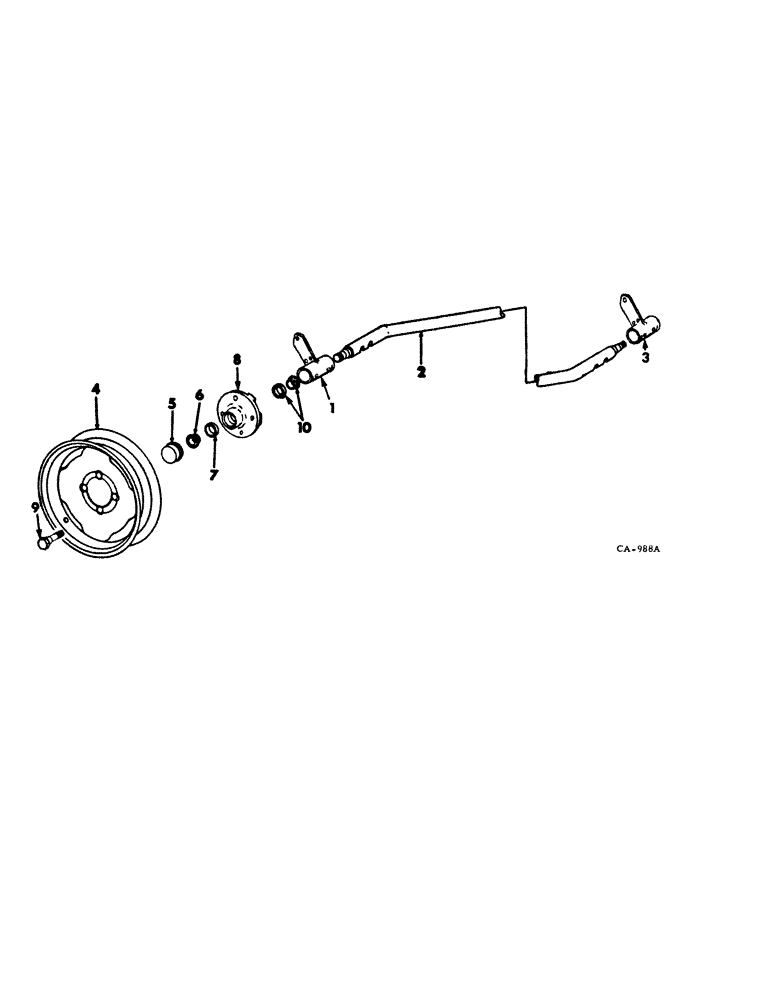

Запчасти Case IH 35 (D-06) - AXLE AND WHEELS, HYDRAULIC DRIVEN RAKES

1

540821R1

SUPPORT

axle LH

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 znd hex-hd cap

3шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

3шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 znd hex-hd cap

2шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

2шт.

2

540823R1

AXLE

1шт.

69442D

NUT

3/4-16 slt hex. jam

2шт.

575813R1

WASHER

25/32 x 1-1/4 x 11 ga

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

3

540822R1

SUPPORT, axle RH

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 znd hex-hd cap

3шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

3шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 znd hex-hd cap

2шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

2шт.

4

662994R91

WHEEL

ASSY, 15 inch, used w/tire 5.00-14 4 ply type I-3 traction implement non-directional

1шт.

4

463036R1

WHEEL (STEERING)

WHEEL ASSY, 14 inch, used w/tire 7.00-14 in. or 7.50-14 in.

1шт.

5

651194R1

CAP

wheel hub

2шт.

6

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, wheel hub outer roller cone

2шт.

6

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

7

651814R1

BEARING CUP

BEARING, wheel hub outer roller cup

2шт.

8

465492R2

HUB

wheel

2шт.

9

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2-20 x 15/16 C-Z conical hd

8шт.

10

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL, wheel hub inner

2шт.

651817R1

BEARING CUP

CUP, wheel hub inner bearing, part of 602957R91

2шт.

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.
