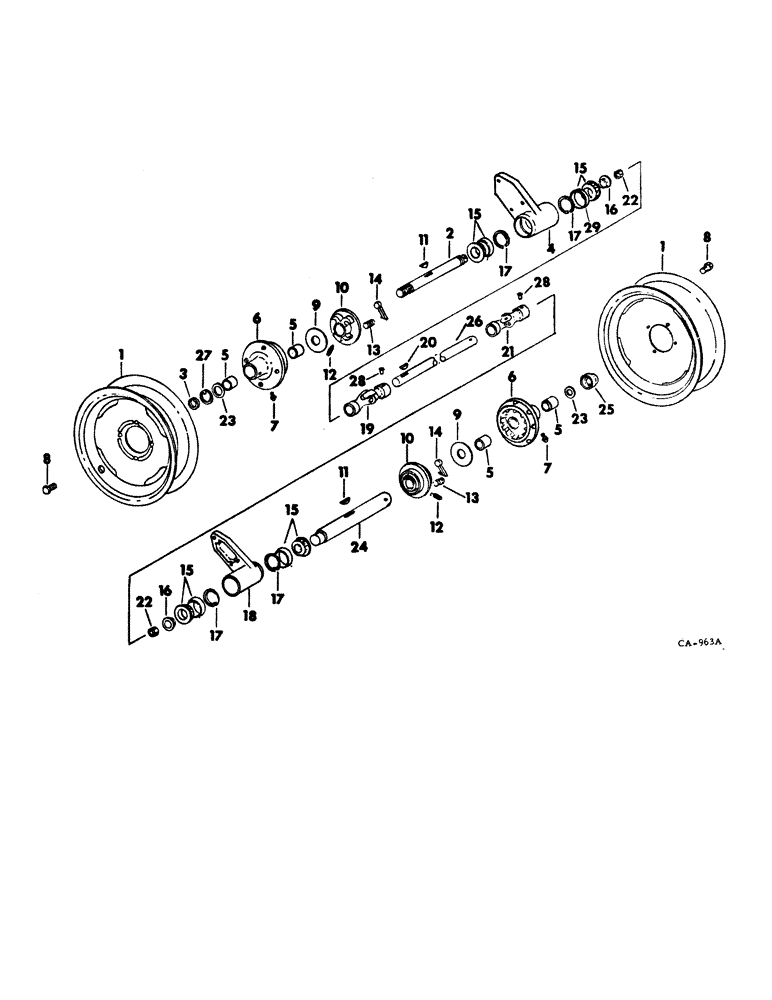

Запчасти Case IH 35 (D-04) - AXLE AND WHEELS, GROUND DRIVEN RAKES
№
Артикул
Название
Примечание
Количество
1
662994R91
WHEEL
ASSY, 15 inch, used w/tire 5.00-15 4 ply tire I-3 traction implement non-directional
1шт.
387897R91
VALVE STEM
VALVE, TR415 tire
1шт.
2
540810R1
SHAFT
left axle
1шт.
3
548628R1
RING
retaining
1шт.
4
540816R1
SUPPORT
axle LH
1шт.
5
470595R1
BUSHING,31.79mm ID x 34.92mm OD x 32mm L
4шт.
6
540811R1
HUB
& RATCHET
2шт.
7
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
2шт.
8
351079R1
BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"
1/2-20 x 15/16 C-Z conical hd
8шт.
9
540812R1
WASHER
2шт.
10
540813R1
HUB
pawl
2шт.
11
540824R1
KEY
5/16 x 1-9/16 hi-pro
2шт.
12
540814R1
SET SCREW,Hex Soc, 1/2"-20 x 1 1/4"
SCREW, 1/2-20 x 1-1/4 C-Z cup-pt hex-soc set
2шт.
124934
HOSE
1/2-20 C-Z hex. jam
2шт.
13
540815R1
SPRING
compression
2шт.
14
DC500
PAWL
2шт.
15
602957R91
BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W
W/SEAL, roller
4шт.
651817R1GV
BEARING CUP
Value, Bearing Cup
4шт.
16
471171R1
SPRING WASHER
WASHER, spring retainer
2шт.
17
457381R1
RING
retaining
4шт.
18
540819R1
SUPPORT
axle RH
1шт.
19
540825R91
JOINT
ASSY, single, for components, see list of parts under details of single joint assy
1шт.
20
124553
WOODRUFF KEY,#15, 1/4" x 1", HT
1шт.
21
540826R91
JOINT
ASSY, single, for components, see list of parts under details of single joint assy
1шт.
616169R1
PIN, 3/8 x 1-7/8 std-hd hardened 3/8" x 1 7/8"
1шт.
648002
KNIFE
1/8" x 3/4"
1шт.
22
26244R1
LOCK NUT,1 1/4"-12, G5
NUT, 1-1/4-12 cad nylon insert (replaces 20042R1)
2шт.
23
608700R1
WASHER
1-9/32 x 2 x 16 ga C-Z
2шт.
24
540818R1
SHAFT
right axle
1шт.
25
540820R1
CUP WASHER
cup
1шт.
21962R1
PIN, 1/4 x 2-1/8 C-Z std-hd
1шт.
648002
KNIFE
1/8" x 3/4"
1шт.
26
540817R1
AXLE
center
1шт.
27
617542R1
WASHER
special keyed
1шт.
28
14456R1
RIVET, 3/8 x 2 rd-hd
2шт.
Выбрано товаров: 36
