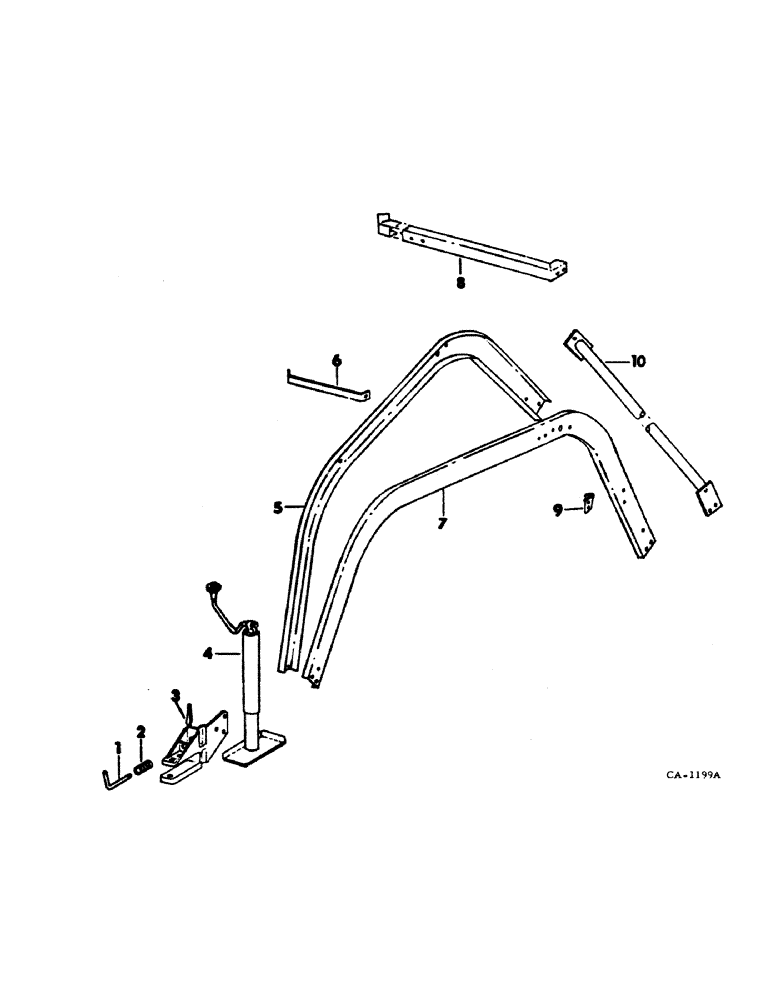

Запчасти Case IH 35 (D-03) - MAIN FRAME, HITCH AND JACK

1

540738R1

PIN

jack

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

2

540739R1

SPRING

compression

1шт.

3

540737R1

TRAILER HITCH

HITCH

1шт.

181698

BOLT,Hex, 1/2" - 20 x 1 1/4", Gr 5

SCREW, 1/2-20 x 1-1/4 znd hex-hd cap

6шт.

484781R1

NUT

1/2-20 C-Z hex. flange lock

6шт.

4

540748R1

JACK

parking

1шт.

5

540747R1

CHANNEL

frame RH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 znd hex-hd cap

2шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 znd hex-hd cap

3шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 znd hex-hd cap, 3 used w/ground drive rakes

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock, 1 per screw

1шт.

6

540741R1

BRACE

front

1шт.

7

55079C1

CHANNEL

W/PRODUCT GRAPHICS, 55054C1 and 61907C1, frame LH, will work for 540740R1

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 znd hex-hd cap

4шт.

180176

SCREW,Hex, 1/2" - 13 x 1 3/8", Gr 5

1/2-13 x 1-3/8 znd hex-hd cap

1шт.

27927DA

WASHER

17/32 x 7/8 x 8 ga C-Z

2шт.

22006R1

BOLT, 1/2 x 1-1/4 znd sq-nk crg

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 znd hex-hd cap, 3 used w/ground drive rakes

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock, 1 per bolt or screw

1шт.

8

540742R1

BRACE

center

1шт.

9

540743R1

BRACKET, stabilizer

1шт.

10

540744R1

BRACE

ASSY, rear, used w/ground drive rakes

1шт.
