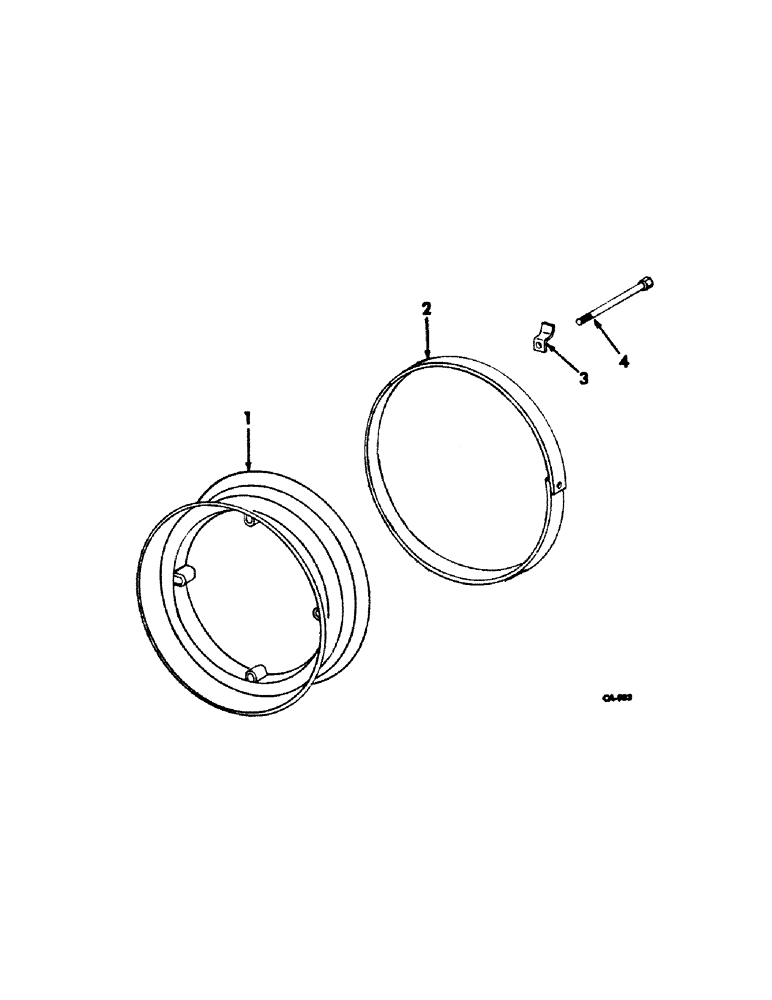

Запчасти Case IH 35 (D-19) - DUAL WHEEL ATTACHMENT / RECOMMENDED HYDRAULIC CONNECTIONS

1

540770R1

RIM ASSY, wheel - 15 in., for 5.00-15 4 ply rated tubeless type I-3 traction implement non-directional tire

2шт.

387897R91

VALVE STEM

VALVE, TR415 tire

1шт.

2

540837R1

BAND, spacer

2шт.

3

540838R1

CLIP, wheel bolt

8шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

8шт.

19696R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 znd nylon insert

8шт.

4

21469R1

BOLT,Hex, 1/2" - 13 x 7 3/4", Gr 5

SCREW, 1/2-13 x 7-3/4 znd hex-hd cap

8шт.

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

UNION, hydraulic 37 deg flared tube reducer, 1-1/16-12 straight thread to 7/8-14 straight thread, for hydraulic driven rake w/dolly wheel attachment

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 2 for hydraulic driven rakes with parking jack, 6 for hydraulic driven rakes w/dolly wheel att

1шт.

392277R1

UNION

str male reducer, 1-1/16-12 straight thread to 7/8-14 straight thread, for hydraulic driven rakes with parking jack

2шт.

395149R1

QUICK MALE COUPLING

COUPLING, 7/8-14 self-sealing male pipe, 2 for hydraulic driven rakes

1шт.

464046R91

HOSE ASSY.

HOSE ASSY, 1/2 ID x 75 in. long hyd, for hydraulic driven rakes with parking jack

2шт.

475228R91

HOSE

ASSY, 1/2 ID x 120 in. long hyd, for hydraulic driven rakes w/dolly wheel attachment

2шт.

584802R1

CONNECTOR, ELEC

UNION, 7/8-14 cdp str thd o-ring Boss, for hydraulic driven rakes w/dolly wheel attachment

2шт.
