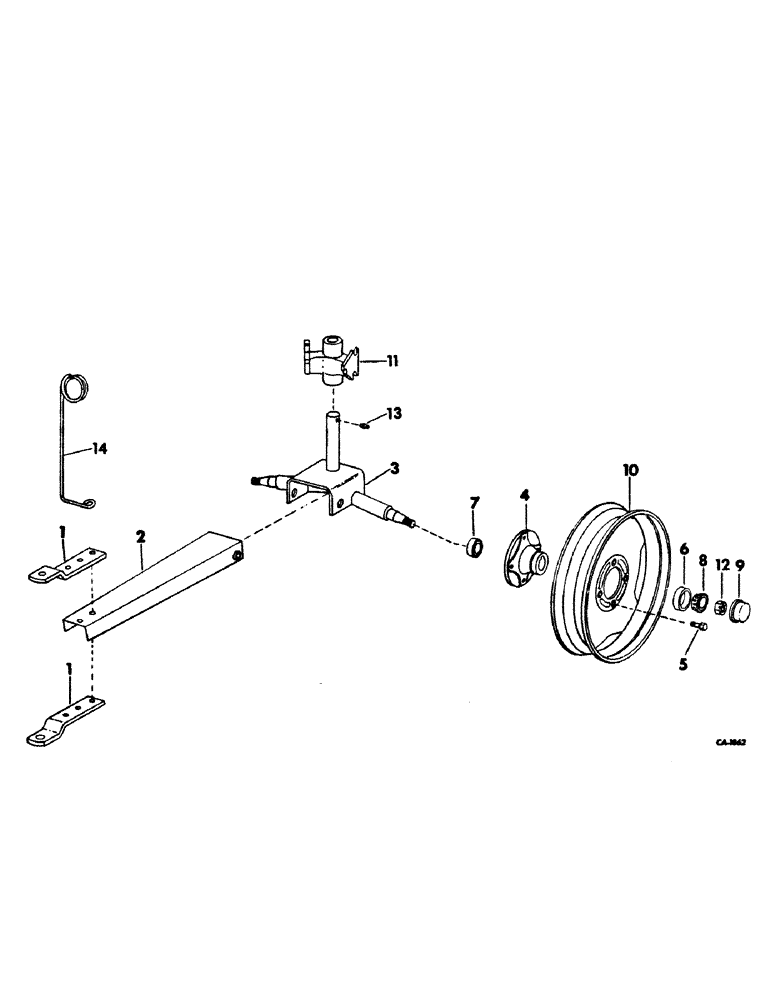

Запчасти Case IH 35 (D-18) - DOLLY WHEELS ATTACHMENT

1

464604R1

SUPPORT

STRAP, hitch

2шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 znd hex-hd cap, for safety chain passing link

1шт.

896124C1

WASHER, .531 x 2.50 x .25, for safety chain passing link

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 znd hex-hd cap

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

2шт.

2

547279R1

TOW BAR

TONGUE ASSY

1шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

3/4-10 x 7 znd hex-hd

1шт.

21844R1

WASHER

25/32 x 1-1/8 x 16 ga C-Z

3шт.

18444R1

NUT,3/4"-10, GB

3/4-10 nylon insert lock

1шт.

3

547282R1

AXLE

ASSY

1шт.

21749R1

WASHER

1-9/32 x 2-1/2 x 16 ga C-Z

4шт.

20341R1

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

4

465492R2

HUB

wheel

2шт.

5

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2-20 x 15/16 C-Z wheel

8шт.

6

651814R1

BEARING CUP

BEARING, wheel hub outer cup

2шт.

7

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL, wheel hub inner

2шт.

8

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING, wheel hub outer cone

2шт.

8

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

9

651194R1

CAP

wheel hub

2шт.

10

455169R92

WHEEL

ASSY, 15 inch

2шт.

11

547286R1

PIVOT

dolly wheel

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg

6шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

6шт.

12

69442D

NUT

3/4-16 slt hex. jam

2шт.

575813R1

WASHER

25/32 x 1-1/4 x 11 ga

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

13

16982R91

FITTING

1/4-28 NS str lub

1шт.

14

464962R1

SUPPORT

hydraulic hose, not part of dolly wheel att

1шт.
