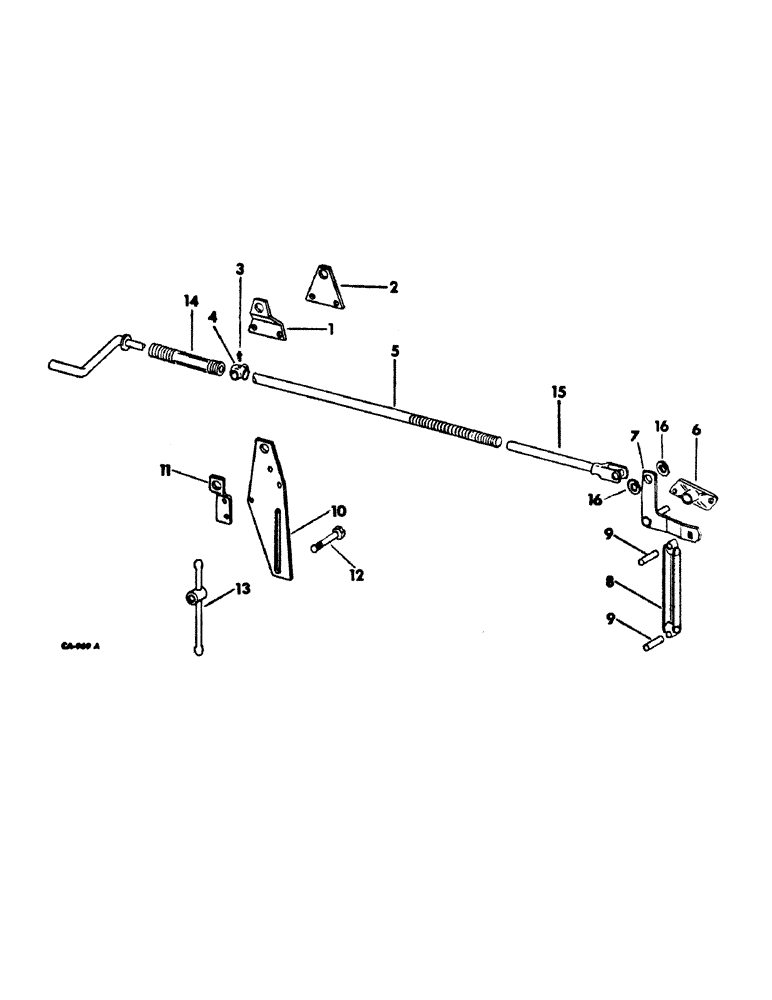

Запчасти Case IH 35 (D-17) - LINKAGE

1

540766R1

BRACKET

swivel

1шт.

2

540767R1

PLATE

swivel

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

2шт.

3

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub

2шт.

4

540754R1

PIVOT

SWIVEL

2шт.

5

540768R1

ROD

SCREW ASSY, RH lift

1шт.

5

540755R1

ROD

SCREW ASSY, LH lift

1шт.

6

540765R1

PIVOT

bellcrank

2шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub

2шт.

7

540761R1

LEVER

BELLCRANK ASSY

2шт.

21714R1

WASHER

29/32 x 1-1/2 x 11 ga C-Z

6шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

2шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

17148R1

BOLT,Short NK, 1/2"-13 x 2 1/4", G2

1/2 x 2-1/4 znd sq-nk crg

2шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

4шт.

8

540763R1

STRAP

ASSY, lift

2шт.

9

457793R2

SPACER

pivot

4шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z hex. two-way lock

4шт.

10

540749R1

PLATE

pitch adjusting

1шт.

180176

SCREW,Hex, 1/2" - 13 x 1 3/8", Gr 5

1/2-13 x 1-3/8 znd hex-hd cap, used w/ground driven rakes

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 znd hex-hd cap, used w/hydraulic driven rakes

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z, used w/hydraulic driven rakes

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

1шт.

11

540753R1

BRACKET

swivel

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

1шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 znd hex-hd cap

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

2шт.

12

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8-11 x 2-1/2 znd sq-nk crg

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

13

540750R1

NUT

ASSY

1шт.

14

540757R1

SPRING

compression

2шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

4шт.

15

540758R1

ROD

PIPE ASSY, lift

2шт.

22928R1

HEADED PIN,3/4" x 2"

PIN, 3/4 x 2 C-Z std-hd hts

2шт.

16

473871R1

WASHER

PAD

4шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

2шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.
