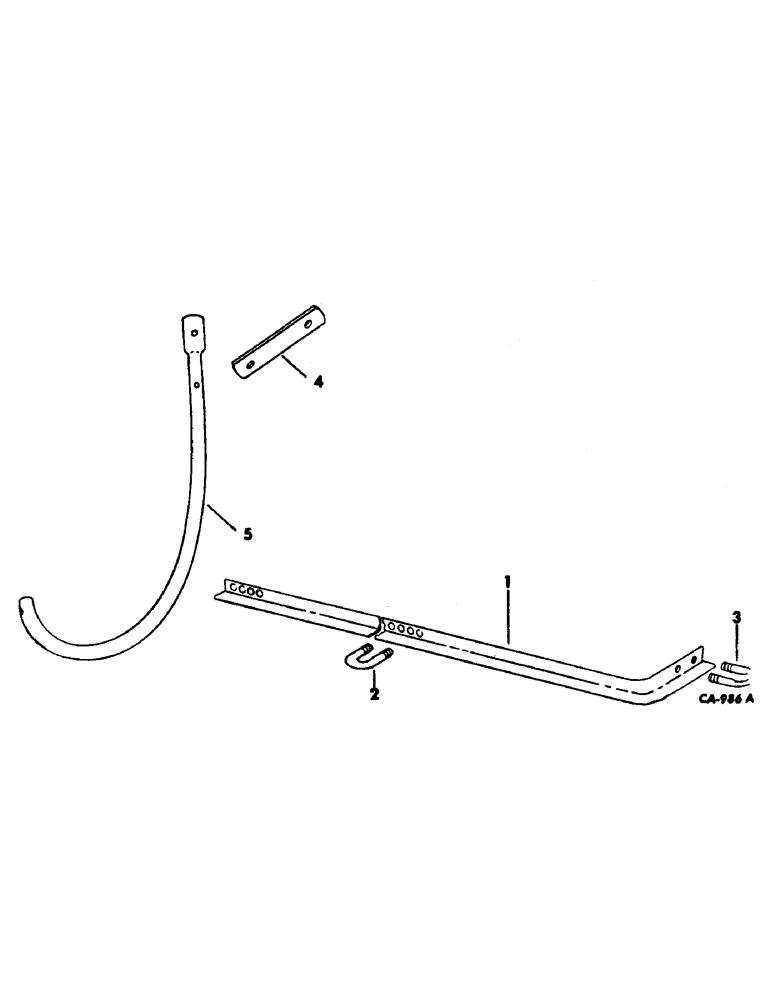

Запчасти Case IH 35 (D-16) - STRIPPER BRACE AND ANGLE

1

483147R1

ANGLE

stripper brace

1шт.

2

23272K

BOLT,3/8" - 16 x 1 3/8"

U-BOLT

6шт.

473371R1

FLANGE NUT

NUT, 3/8-16 C-Z hex. flange lock

12шт.

3

645151R1

BOLT,3/8" - 24

U-BOLT

1шт.

666639R1

LOCK NUT,3/8"-24, GB

NUT, 3/8-24 hex. lock

2шт.

4

457862R2

BRACE

RH end stripper

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

1шт.

473371R1

FLANGE NUT

NUT, 3/8-16 C-Z hex. flange lock

1шт.

5

473513R1

STRIPPER

RH end

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 znd hex-hd mach

1шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2-13 x 2-1/2 znd hex-hd mach

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2-13 x 2-1/4 znd hex-hd mach

1шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

3шт.
