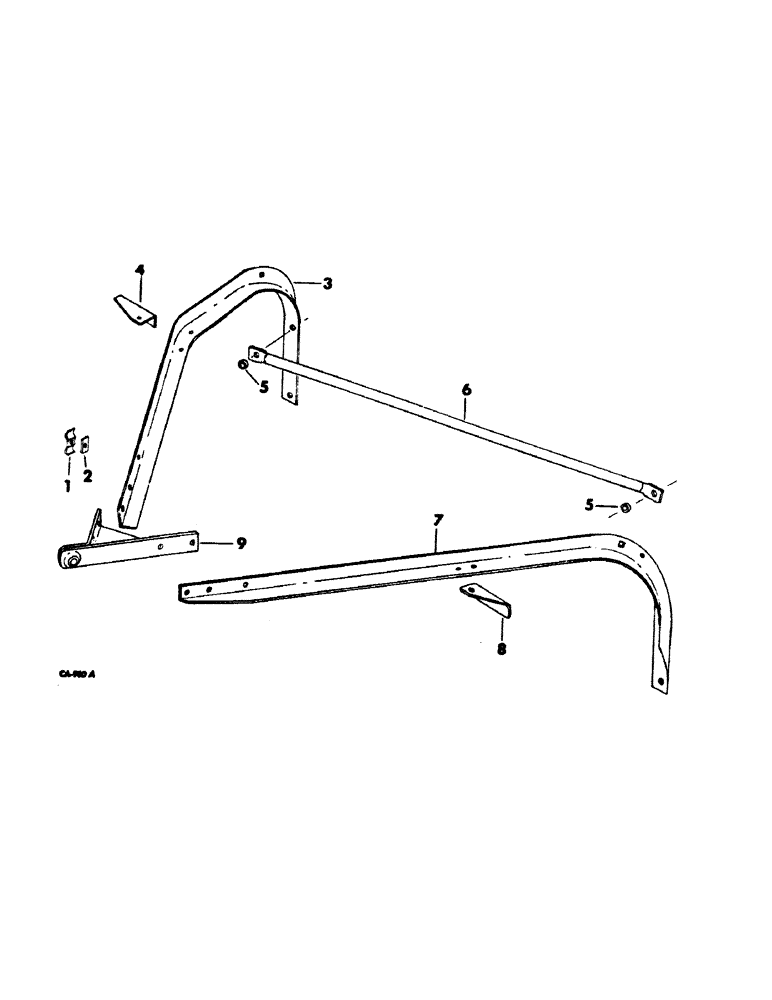

Запчасти Case IH 35 (D-15) - SUBFRAME
№
Артикул
Название
Примечание
Количество
1
573037R1
CLAMP, hyd tube, used w/hydraulic driven rakes
2шт.
18675R1
BOLT,Short NK, 5/16"-18 x 1 3/4", G2
5/16 x 1-3/4 znd sq-nk crg
1шт.
18676R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 2
BOLT, 5/16 x 2-1/4 znd sq-nk crg
1шт.
483303R1
LOCK NUT
5/16-18 hex. lock
2шт.
2
540801R1
PAD
rubber, used w/hydraulic driven rakes
4шт.
3
540794R1
ANGLE, subframe RH
1шт.
180173
BOLT,Hex, 1/2" - 13 x 1", Gr 5
1/2-13 x 1 znd hex-hd cap
3шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2-13 C-Z hex. flange lock
3шт.
17148R1
BOLT,Short NK, 1/2"-13 x 2 1/4", G2
1/2 x 2-1/4 znd sq-nk crg
1шт.
607895R1
WASHER
17/32 x 1 x 11 ga C-Z
2шт.
4
540793R1
BRACKET
right frame
1шт.
180173
BOLT,Hex, 1/2" - 13 x 1", Gr 5
1/2-13 x 1 znd hex-hd cap
2шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2-13 C-Z hex. flange lock
2шт.
5
540796R1
SPACER
stabilizer
2шт.
6
540795R1
PIPE
basket stabilizer
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
SCREW, 1/2-13 x 1-1/4 znd hex-hd cap
1шт.
180176
SCREW,Hex, 1/2" - 13 x 1 3/8", Gr 5
1/2-13 x 1-3/8 znd hex-hd cap
1шт.
20601R1
WASHER
17/32 x 1-1/4 x 11 ga C-Z
2шт.
474848R1
LOCK NUT,1/2"-13, GB
NUT, 1/2-13 C-Z hex. two-way lock
2шт.
7
540790R1
ANGLE
subframe LH
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
SCREW, 1/2-13 x 1-1/4 znd hex-hd cap
1шт.
180173
BOLT,Hex, 1/2" - 13 x 1", Gr 5
1/2-13 x 1 znd hex-hd cap
3шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2-13 C-Z hex. flange lock
4шт.
17148R1
BOLT,Short NK, 1/2"-13 x 2 1/4", G2
1/2 x 2-1/4 znd sq-nk crg
1шт.
607895R1
WASHER
17/32 x 1 x 11 ga C-Z
2шт.
8
540792R1
BRACKET
left frame
1шт.
180173
BOLT,Hex, 1/2" - 13 x 1", Gr 5
1/2-13 x 1 znd hex-hd cap
2шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2-13 C-Z hex. flange lock
2шт.
9
540785R1
BALL
ASSY
1шт.
180174
BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5
SCREW, 1/2-13 x 1-1/8 znd hex-hd cap
4шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2-13 C-Z hex. flange lock
4шт.
Выбрано товаров: 31
