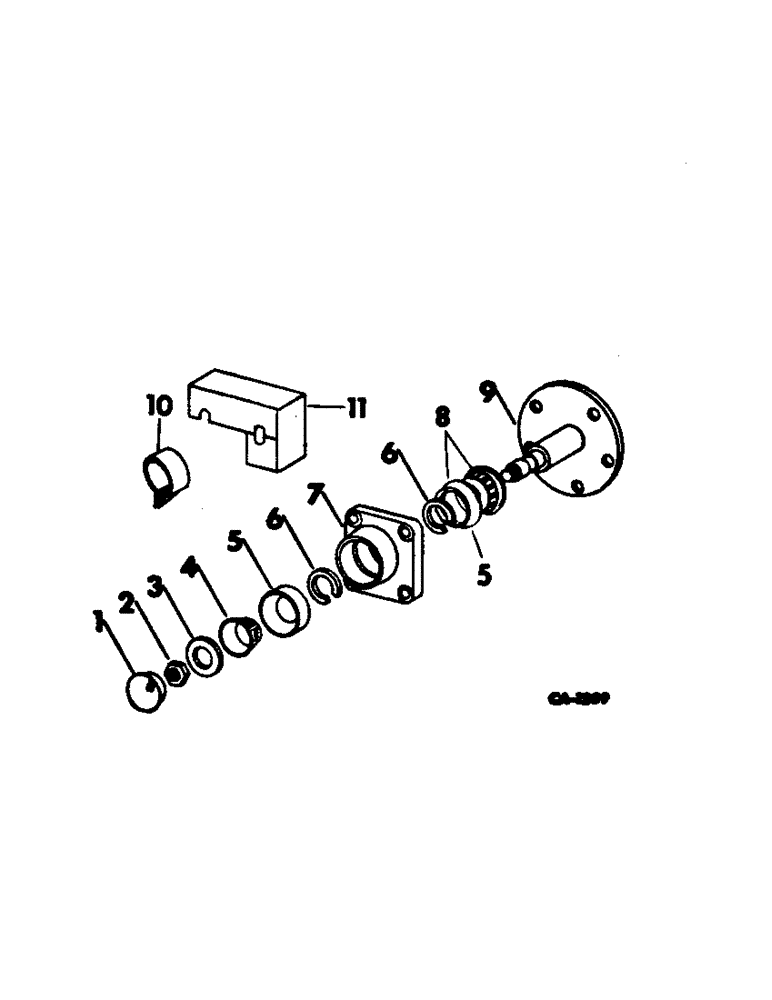

Запчасти Case IH 35 (D-14) - SPIDER WHEEL SHAFT

1

663906R1

CAP

spider wheel hub

1шт.

2

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 C-Z slt hex.

1шт.

3

446257

WASHER,3/4" x 1 3/4" x .148"

13/16 x 1-3/4 x .148 C-Z

1шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, RH hub roller cone

1шт.

5

651817R1

BEARING CUP

BEARING, RH hub roller cup

1шт.

5

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

6

457381R1

RING

bearing retaining

2шт.

7

473363R1

HOUSING

HUB, spider wheel bearing RH

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 znd hex-hd cap

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

4шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z, 4 used w/hydraulic driven rakes

1шт.

8

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL, RH hub

1шт.

651817R1

BEARING CUP

CUP, RH hub brg, part of 602957R91

1шт.

9

473364R92

NOZZLE HOLDER

SHAFT ASSY, basket RH

1шт.

137228

COTTER PIN,5/32" x 1 1/2"

PIN, SPLIT (COTTER), 5/32" x 1 1/2"

1шт.

180144

RETAINER

7/16-14 x 7/8 znd hex-hd cap

5шт.

540842R1

NUT

7/16-14 C-Z hex. flange lock

5шт.

10

473393R1

SHIELD

shaft, left side, used w/ground driven rakes

1шт.

180044

SPRING

SCREW, 1/4-20 x 2 znd hex-hd cap

1шт.

21549R1

WASHER

9/32 x 3/4 x 18 ga C-Z

1шт.

9413946

LOCK NUT,1/4"-20, GA

NUT, 1/4-20 cad hex. lock

1шт.

11

473297R1

SHIELD

jackshaft, right side, used w/ground driven rakes

1шт.

11

480390R1

SHIELD, jackshaft, left side, used w/hydraulic driven rakes

1шт.
