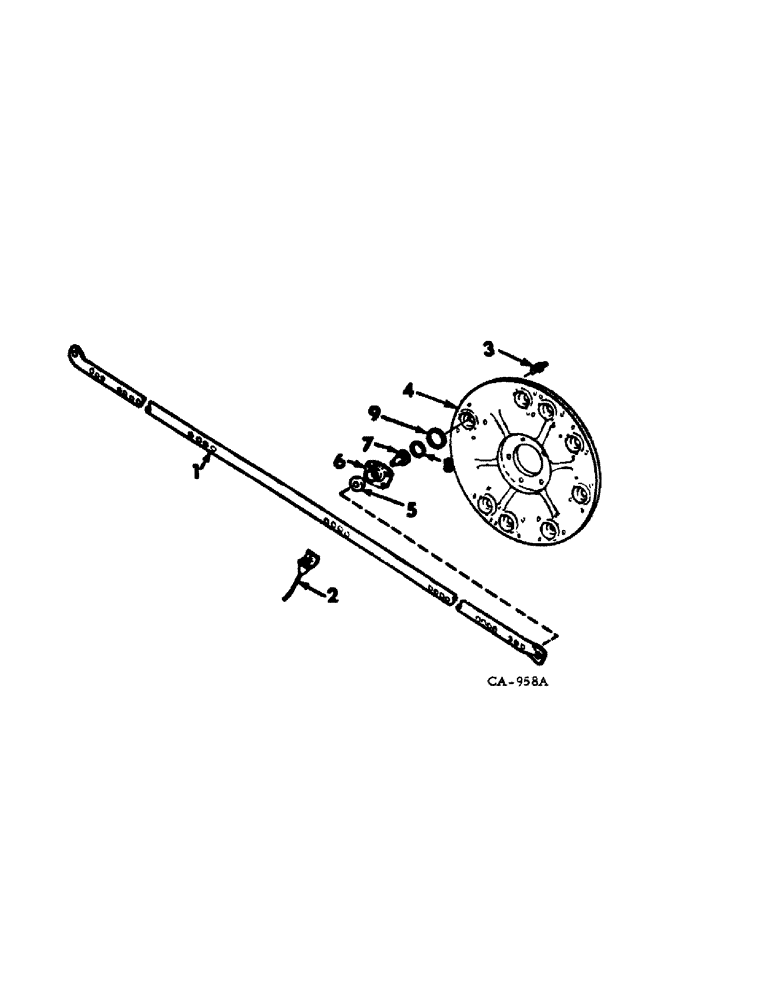

Запчасти Case IH 35 (D-13) - SPIDER DISC AND TOOTH BAR

1

544152R91

PIPE

W/INSTALLING INSTRUCTIONS, tooth, will work for 540844R1, 4 for machines w/4 tooth pipes

5шт.

2

473378R91

TOOTH

rubber mounted, 76 for machines w/4 tooth pipes

95шт.

541938R1

BOLT,Sq Nk, 5/16" - 18 x 2"

5/16-18 x 2 znd special sq-nk crg, 1 per tooth

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z hex. flange lock, 1 per tooth

1шт.

3

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 special taper drive thd self-tap. lub, 2 per tooth pipe

1шт.

4

473358R2

DISC

spider

2шт.

5

473385R1

CAP WASHER

SEAL, housing, 2 per tooth pipe, for steel housing, 473381R1

1шт.

5

545569R1

SEAL

housing, 2 per tooth pipe, for aluminum housing

1шт.

6

545574R91

HOUSING

ASSY, 2 per tooth pipe, replaces housing, 473381R1, composed of

1шт.

545568R1

RETAINER

HOUSING

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Hex, 3/8"-16 x 1", G5

4шт.

545569R1

SEAL

1шт.

469668R1

WASHER

4шт.

477243R1

WASHER,25/32" x 2" x .060"

1шт.

6

545568R1

RETAINER

HOUSING, tooth pipe bearing, 2 per tooth pipe

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Hex, 3/8"-16 x 1", G5, 4 per housing

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z, 4 per housing

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z hex. lock, 4 per housing

1шт.

7

ST437

BALL BEARING,1.27" ID x 1.8504" OD x 0.5512"

BEARING, tooth pipe ball, 2 per tooth pipe

1шт.

473873R1

LOCK NUT,3/4"-16, GB

NUT, 3/4-16 C-Z hex. two-way lock, 1 per bearing

1шт.

477243R1

WASHER,25/32" x 2" x .060"

25/32 x 2 x 16 ga C-Z, 1 per bearing

1шт.

8

473383R1

RING

tooth pipe bearing, 2 per tooth pipe

1шт.

9

473382R1

GASKET

housing, 2 per tooth pipe, used only w/housing, 473381R1

1шт.
