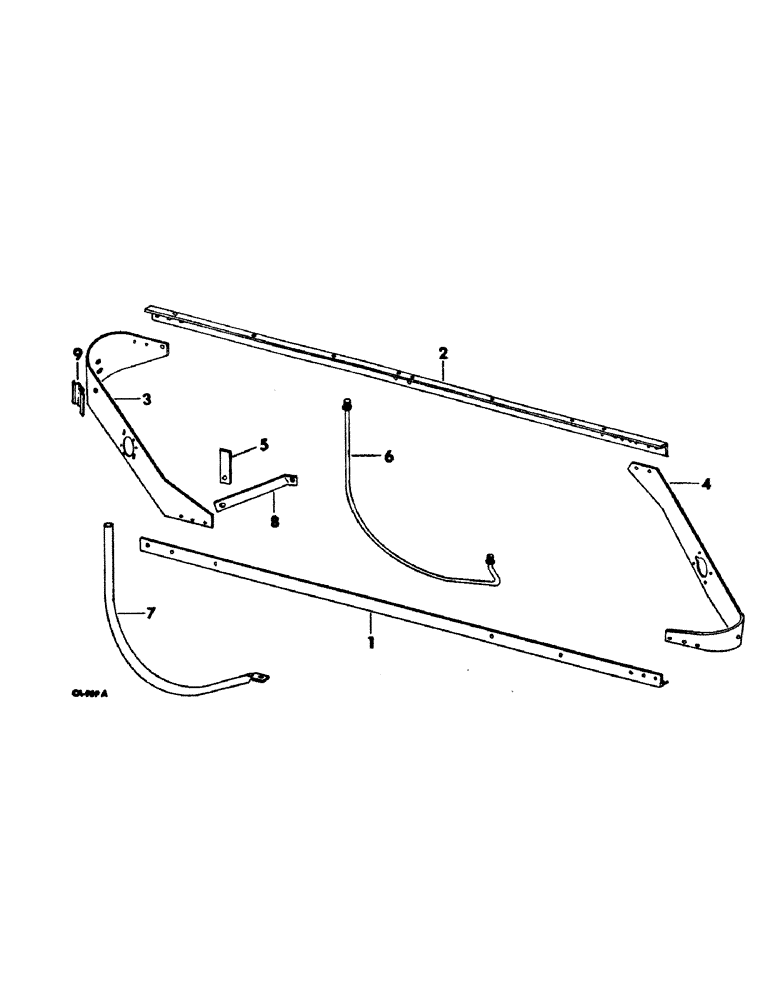

Запчасти Case IH 35 (D-12) - BASKET

1

540798R2

ANGLE

rear frame

1шт.

180176

SCREW,Hex, 1/2" - 13 x 1 3/8", Gr 5

1/2-13 x 1-3/8 znd hex-hd cap, 4 used w/ground driven rakes, 5 used w/hydraulic driven rakes

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 znd hex-hd cap, used w/ground driven rakes

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

5шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

5шт.

2

540797R1

ANGLE, front frame

1шт.

180176

SCREW,Hex, 1/2" - 13 x 1 3/8", Gr 5

1/2-13 x 1-3/8 znd hex-hd cap

4шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

4шт.

3

540800R1

FRAME, left end

1шт.

477913R1

BOLT, 1/2 x 1-1/2 long nk crg

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

1шт.

4

473368R2

FRAME

right end

1шт.

5

540799R1

BAR, knuckle transport, used w/ground driven rakes

1шт.

6

542331R1

STRIPPER

6шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

12шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 C-Z hex. two-way lock

12шт.

7

473374R1

ROD

STRIPPER, left end

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 znd hex-hd cap

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

3шт.

8

540802R1

STRAP

basket

1шт.

9

398976R1

BRACKET

SOCKET, light bracket

1шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 znd hex-hd cap

1шт.

540842R1

NUT

7/16-14 C-Z hex. flange lock

1шт.

480093R1

TOOL

stripper straightening

1шт.
