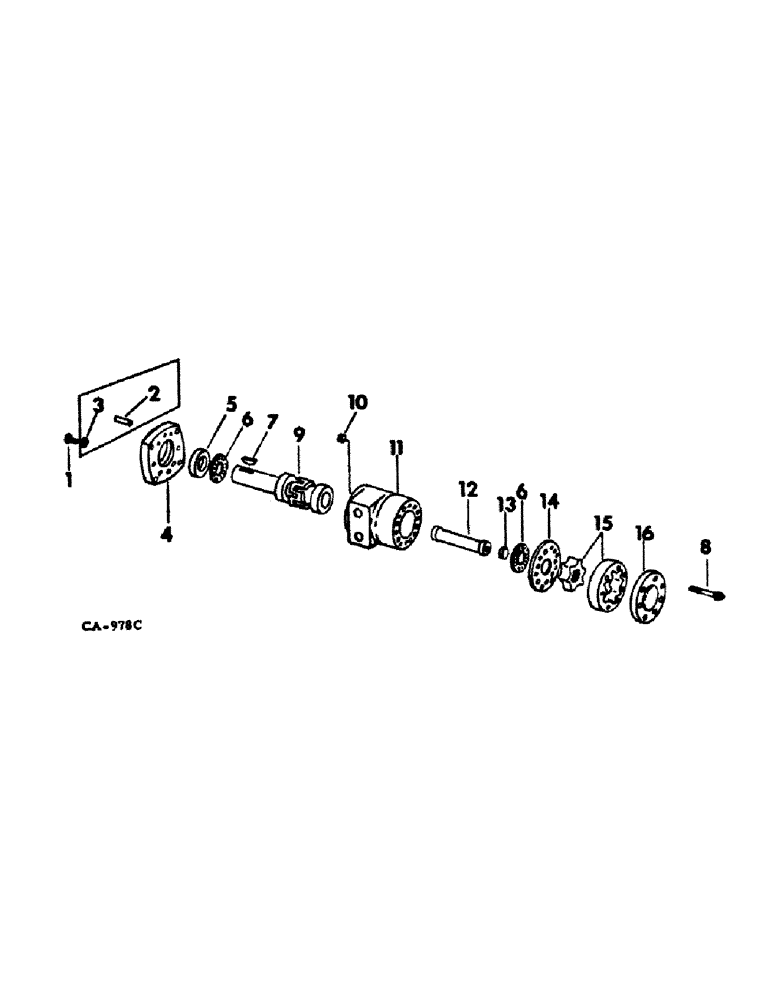

Запчасти Case IH 35 (D-11) - HYDRAULIC DRIVE MOTOR

634733R92

MOTOR HOUSING

MOTOR ASSY, hydraulic, B7M, replaces B4M and B5M motors

1шт.

1

1413632R1

12 PT SCREW,Flg, 5/16" - 24 x 7/8", Gr 8

SCREW, 5/16-18 x 7/8 12 pt wrench drive cap, for B5M and B7M

4шт.

2

21997R1

LOCK PIN,1/4" x 1", Slotted

Pin, , for B4M and B5M 1/4" x 1", Slotted

4шт.

3

23060R1

LOCK WASHER,Int Tooth, 5/16"

WASHER, 5/16 C-Z int-tooth lock, for B4M and B5M

4шт.

4

FLANGE, mounting, for B5M motors, discontinued for service

1шт.

4

FLANGE, mounting, for B4M motors, discontinued for service

1шт.

4

63790C1

FLANGE

mounting, for B7M motors

1шт.

5

653946R1

SPACER

RACE, bearing, for B4M

1шт.

5

63779C1

BEARING CUP,27.94mm ID x 42.16mm OD x 10.16mm L

RACE, bearing, for B5M and B7M

1шт.

6

BEARING, thrust, 2 for B4M, discontinued for service

1шт.

6

63780C91

THRUST BEARING

thrust, 2 for B5M and B7M

1шт.

7

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

8

57950C1

SCREW,12 Pt Flg, 5/16"-18 x 2 3/4", G8

5/16-24 x 2-3/4 12 pt wrench drive cap

7шт.

9

SHAFT, output, not serviced separately, order hydraulic motor assy

1шт.

10

653948R1

PLUG

housing

1шт.

11

HOUSING, not serviced separately, order hydraulic motor assy

1шт.

12

DRIVE, order hydraulic motor assy (NSS)

1шт.

13

SPACER, for B4M, discontinued for service

1шт.

13

63781C1

SPACER

for B5M and B7M

1шт.

14

653943R1

LARGE PLATE

PLATE, spacer, for B4M and B5M

1шт.

14

63791C1

PLATE

RETAINER, spacer, plate, for B7M

1шт.

15

GEROTOR SET, not serviced separately, order hydraulic motor assy

1шт.

16

CAP, end, for B4M and B5M, discontinued for service

1шт.

16

63792C1

CAP

end, for B7M

1шт.

KIT, hyd motor repair, for B4M and B5M, discontinued for service

1шт.

63789C1

KIT

hyd motor repair, for B7M

1шт.
