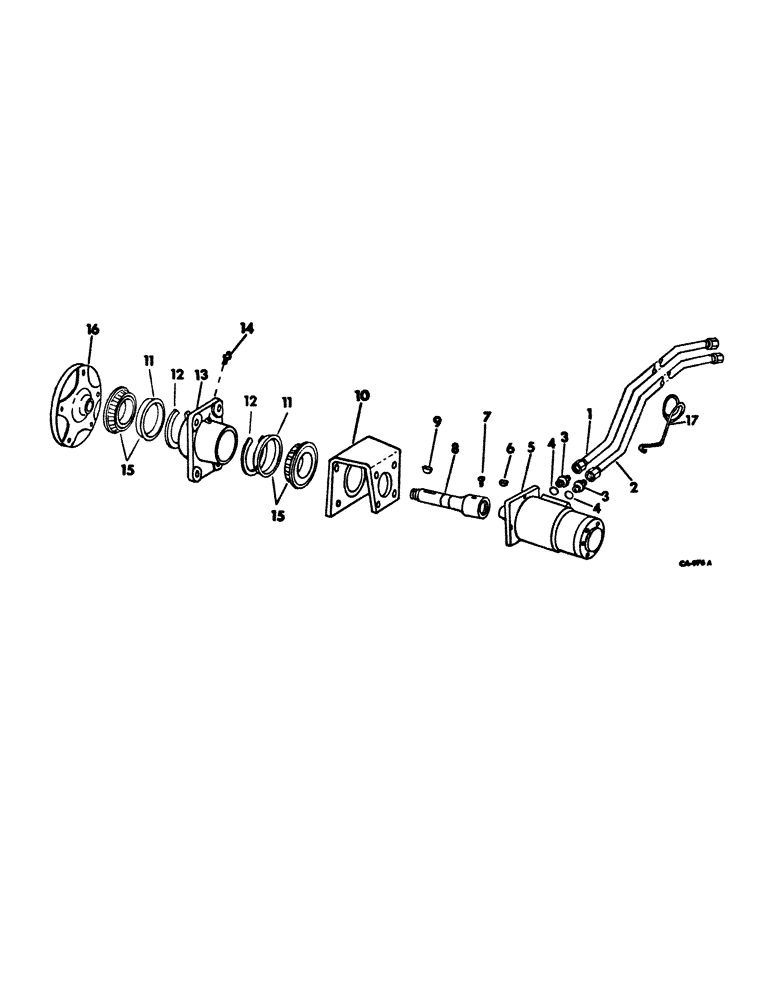

Запчасти Case IH 35 (D-10) - DRIVE, HYDRAULIC DRIVEN RAKES

1

540831R1

TUBE

ASSY, upper

1шт.

2

540829R1

TUBE

ASSY, lower

1шт.

3

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 37 deg hyd flared type short swivel reducer

2шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

2шт.

5

634733R92

MOTOR HOUSING

MOTOR ASSY, hydraulic, B7M, for components, see list of parts under details of hydraulic drive motor

1шт.

6

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

7

127796

SET SCREW,Sq Hd, 1/4"-20 x 3/4"

Cup Pt, Machines built 1969 & 1970 Sq Hd, 1/4"-20 x 3/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

7

191951

SCREW,Hdls Hex Skt, 5/16" - 18 x 3/4", Cup Pt

5/16-18 x 1-1/8 znd hex-sock cup-pt set, machines built 1971 & since

1шт.

120376

NUT,5/16"-18, G5

1шт.

8

541198R1

SHAFT

drive

1шт.

446257

WASHER,3/4" x 1 3/4" x .148"

13/16 x 1-3/4 x .148 C-Z

1шт.

69442D

NUT

3/4-16 slt hex. jam

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

9

124557

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

KEY, 5/16 x 1-1/8 Woodruff C

1шт.

10

540827R1

BRACKET

motor

1шт.

540843R1

SCREW

3/8-16 x 3/4 C-Z whiz flange

4шт.

11

651817R1

BEARING CUP

CUP, drive shaft bearing, part of 602957R91

2шт.

11

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

12

457381R1

RING

retaining

2шт.

13

473360R1

HOUSING

HUB, bearing

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 znd hex-hd cap

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

4шт.

14

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 special taper drive thd self-tap. lub, bearing hub

1шт.

15

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

ASSY, drive shaft

2шт.

16

473359R1

HUB

spider wheel

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16-14 x 1-1/4 znd hex-hd cap

5шт.

540842R1

NUT

7/16-14 C-Z hex. flange lock

5шт.

17

540839R1

SUPPORT

hydraulic hose

1шт.
