Запчасти Case IH 200 (08) - LEVER, MANUAL CONTROL

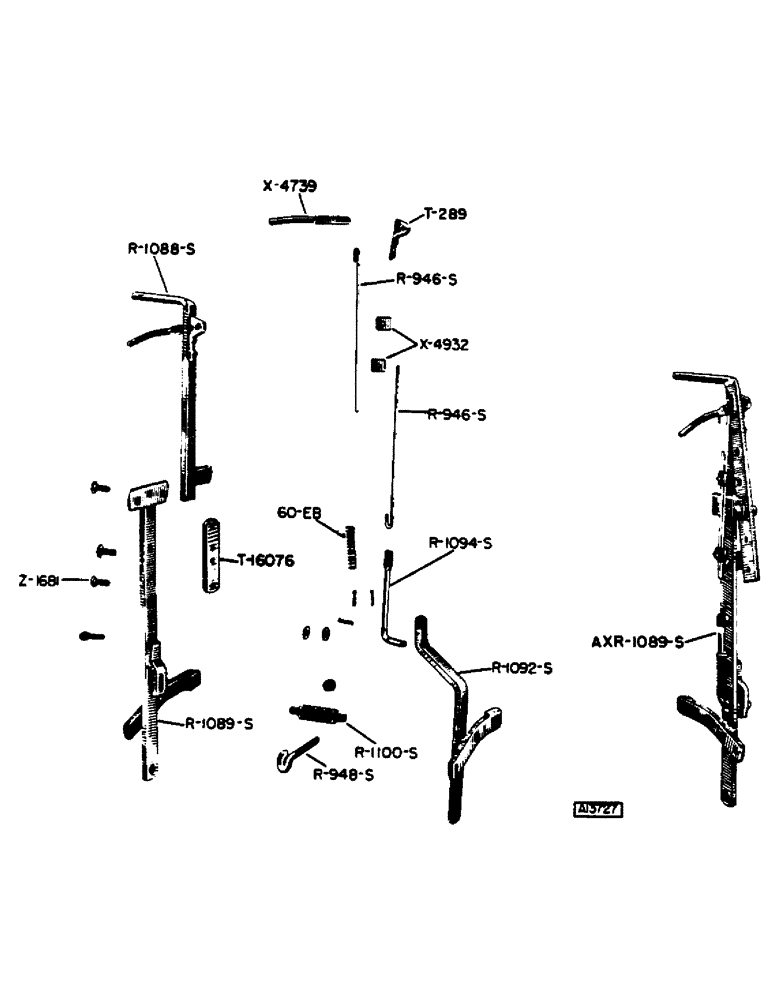

Схема запчастей Case IH 200 - (08) - LEVER, MANUAL CONTROL

Артикул

Название

Примечание

Количество

T16076

EXTENSION - lever (YR. 57-)

1шт.

R946S

ROD - latch (3/16" rd. x 13") (YR. 55-)

2шт.

R948S

EYEBOLT - assisting spring and anchor (1/2" rd. x 7-3/16") (YR. 55-)

1шт.

1/2" N.C. nut

1шт.

R-1088-S

LEVER - upper, w/T289 bracket and X4739 handle (Use T22904) (YR. 55-59)

1шт.

R1089S

LEVER - lower (YR. 55-)

1шт.

7/16" x 1-1/4" N.C. hex hd. bolt

2шт.

AXR1089S

LEVER - lower cpt. w/R1089S, R109FS, 60EB, (2)R946S, (4) X4932, T289 and X4739 (YR. 55-)

1шт.

R1092S

LEVER SIDE (YR. 55-)

1шт.

R1094S

PLUNGER - raising lever (3/8" rd. x 8") (YR. 55-)

1шт.

1/8" x 3/4" cotter pin

3шт.

5/16" x 3/4" cotter pin w/13/32" eye

1шт.

R1100S

ANCHOR - assisting spring (YR. 55-)

1шт.

T289

BRACKET - lever latch handle (YR. 55-)

1шт.

1/4" x 7/8" rd. hd. rivet

1шт.

1/4" x 1-1/8" rd. hd. rivet

2шт.

X4739

HANDLE - latch (YR. 55-)

1шт.

X4932

CLAMP - latch rod (YR. 55-)

4шт.

1/4" x 3/4" carriage bolt w/lockwasher and hex nut

2шт.

Z1681

PLOW BOLT

BOLT - plow (7/16" x 1-1/4" P#3) for R1089S (YR. 55-)

1шт.

60EB

SPRING

- latch rod (7/16" I.D. x 19/32" O.D. x 3" long, 14-1/2 coils, compression) (YR. 55-)

1шт.

T22904

LEVER - hand (Consists of (1) R-1088-S, (1) T289, (1) X4739 and (2) 1/4" x 7/8" rd. hd. rivets (45-414) (YR. 60-)

2шт.

Выбрано товаров: 22
