Запчасти Case IH 200 (07) - TRACTOR HITCH, MANUAL CONTROL

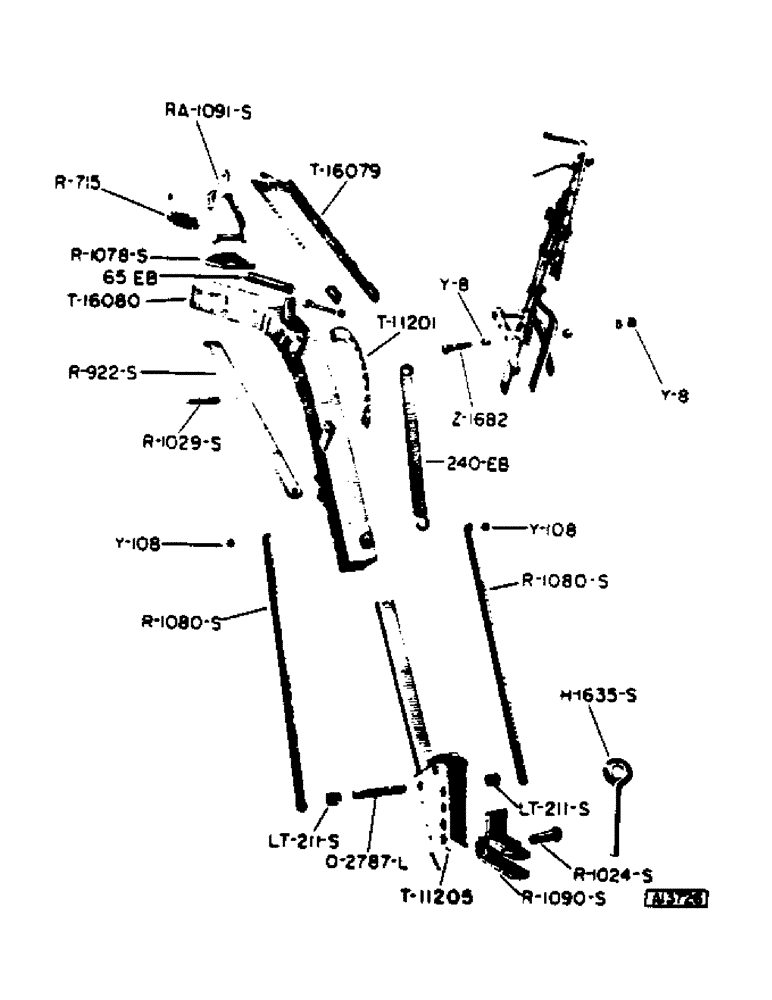

Схема запчастей Case IH 200 - (07) - TRACTOR HITCH, MANUAL CONTROL

Артикул

Название

Примечание

Количество

T11201

QUADRANT (YR. 57-)

1шт.

7/16" x 1-1/4" N.C. hex bolt w/lockwasher and hex nut

2шт.

T11203

TONGUE - cpt. (Use T16080) (YR. 55-57)

1шт.

T11205

PLATE - hitch, cpt. (YR. 57-)

1шт.

T16079

STRAP - saddle (YR. 57-)

1шт.

T16080

TONGUE - cpt. (YR. 57-)

1шт.

H1635S

PIN - draft (3/4" rd. x 12") (YR. 55-)

1шт.

LT211S

BUSHING - lift strap, front (3/4" rd. x 1-1/16" (YR. 55-)

2шт.

O2787L

BEARING - lever strap (3/8" rd. x 5") (YR. 55-)

1шт.

R715

BEARING - pivot, 18 ft. link (YR. 55-)

1шт.

1/8" straight Lincoln fitting #5000

1шт.

1/2" x 1" N.C. hex bolt w/lockwasher less nut

1шт.

5/8" x 6" N.C. hex bolt w/lockwasher and hex nut

1шт.

R922S

SUPPORT - tongue (YR. 55-)

1шт.

1/2 x 1-1/2" N.C. hex. bolt w/lockwasher and hex. nut

1шт.

R1024S

PIN - rivet (3/4" x 2-1/2" rd. hd. drilled) for R1090S (YR. 55-)

1шт.

3/16" x 1-1/2" cotter pin

1шт.

R1029S

BEARING - lever (3/8" x 3-5/8" reamed to 1/2") (YR. 55-)

1шт.

T1032S

PLATE - hitch (Use T11205) (YR. 55-57)

1шт.

R1078S

SUPPORT - pivot bearing (YR. 55-)

1шт.

1/2" x 5" N.C. hex bolt w/lockwasher and hex nut

1шт.

R1080S

STRAP - lever (YR. 55-)

2шт.

1-1/4" x 9/16" x 16 ga. washer

4шт.

1/2" x 1-1/2" N.C. hex bolt w/lockwasher and hex nut

2шт.

7/16" x 5-3/4" N.C. hex bolt w/lockwasher and hex nut

1шт.

R1086S

STRAP - saddle (Use T16079) (YR. 55-57)

1шт.

R1087S

TONGUE (Use T16080) (YR. 1955)

1шт.

1-1/4" x 9/16" x 16 ga. washer

2шт.

1/2" x 4-1/2" N.C. hex bolt w/lockwasher and hex nut

1шт.

R1090S

CLEVIS - hitch (YR. 55-)

1шт.

RA1091S

ARM - pivot, lift link, cpt. (YR. 55-)

1шт.

R1098S

QUADRANT (Use T11201) (YR. 55-57)

1шт.

7/16" x 1-1/4" N.C. hex bolt w/lockwasher and hex nut.

2шт.

Y8

BUSHING - saddle strap and lever (3/8" rd. x 13/32") (YR. 55-)

2шт.

Y108

BUSHING - lift strap (3/8" rd. x 13/32" reamed to 1/2") (YR. 55-)

2шт.

Z1682

PLOW BOLT

BOLT - plow (7/16" x 1-1/2" P#3 w/N.C. hex nut) for lever (YR. 55-)

2шт.

1-1/4" x 9/16" x 16 ga. washer

2шт.

7/16" lockwasher

2шт.

65EB

SPRING - assisting (YR. 55-)

1шт.

240EB

SPRING - assisting lift (1-5/16" O.D. x 7/8" I.D. x 15-3/4" long, 59 coils pull) (YR. 55-)

1шт.

Выбрано товаров: 40
