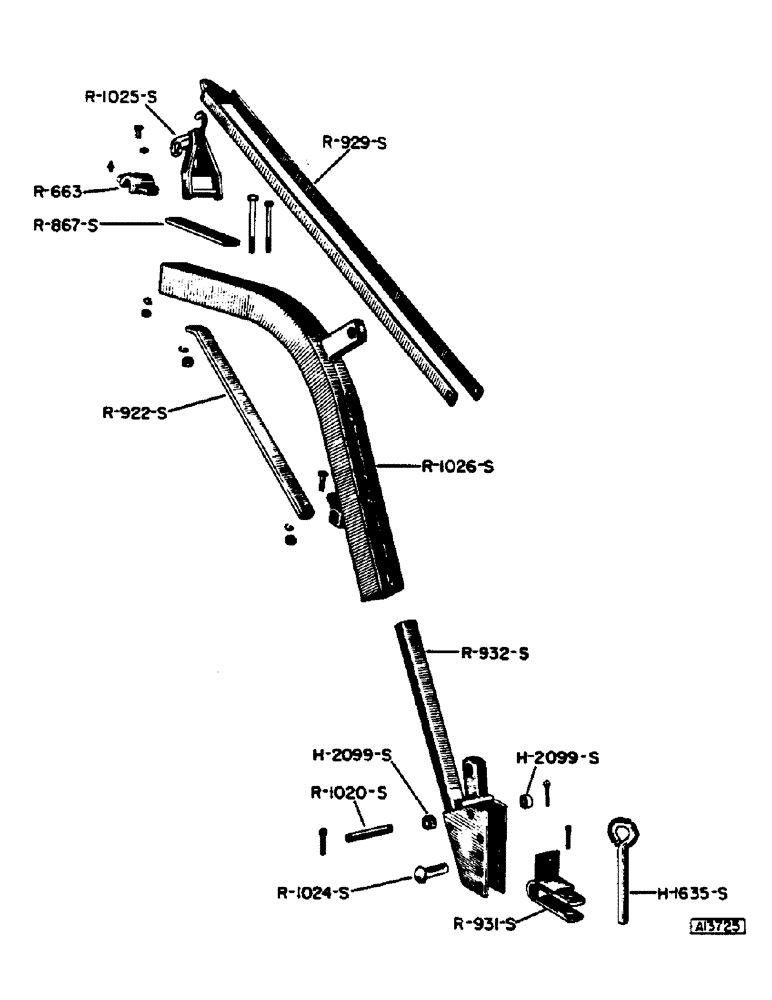

Запчасти Case IH 200 (06) - TRACTOR HITCH, HYDRAULIC CONTROL, 53-55

H1635S

PIN - draft (YR. 53-55)

1шт.

H2099S

SPACER - saddle strap, front (YR. 53-55)

2шт.

R663

BEARING - pivot lift link (YR. 53-55)

1шт.

1/8" straight Lincoln fitting #5000

1шт.

1/2" x 1" hex bolt N.C. thread w/lockwasher less nut

2шт.

R867S

SUPPORT - pivot bearing (YR. 53-55)

1шт.

1/2" x 4-1/2" hex bolt N.F. thread w/lockwasher and hex nut

1шт.

5/8" x 5-1/2" hex bolt N.F. thread w/lockwasher and hex nut

1шт.

R922S

SUPPORT - tongue (YR. 53-55)

1шт.

1/2" x 1-1/2" hex bolt N.F. thread w/lockwasher and hex nut

1шт.

R929S

STRAP - saddle (YR. 53-55)

1шт.

R931S

CLEVIS - hitch (YR. 53-55)

1шт.

R932S

PLATE - hitch (YR. 53-55)

1шт.

R1020S

PIN - drilled (5/8" rd. x 4-1/4") for hitch and saddle strap (YR. 53-55)

1шт.

3/16" x 1-1/2" cotter pin

2шт.

R1024S

PIN - rivet (3/4" x 2-1/2" drilled) for R931S clevis (YR. 53-55)

1шт.

3/16" x 1-1/2" cotter pin

1шт.

R1025S

ARM - pivot, lift link (YR. 53-55)

1шт.

R1026S

TONGUE (YR. 53-55)

1шт.
