Запчасти Case IH 200 (04) - TRACTOR HITCH, EAGLE HITCH

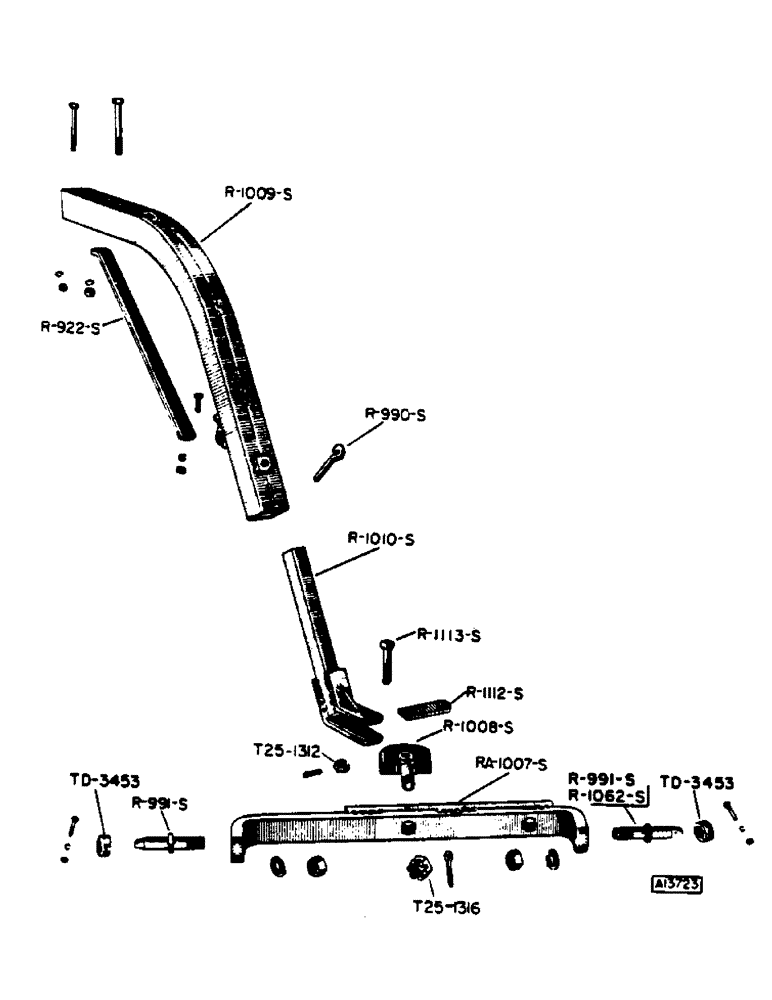

Схема запчастей Case IH 200 - (04) - TRACTOR HITCH, EAGLE HITCH

Артикул

Название

Примечание

Количество

TD3453

BLOCK - spacer, draft arm (YR. 58-)

2шт.

1/4" x 1-3/4" N.F. hex bolt w/lockwasher and hex nut

2шт.

R703

BLOCK - spacer, draft arm (Use TD3453) (YR. 53-58)

2шт.

1/4" x 1-3/4" N.C. hex bolt w/lockwasher and hex nut

2шт.

R922S

SUPPORT - tongue (YR. 53-)

1шт.

RB930S

STAND - hold up (See page 25) (YR. 53-55)

1шт.

1/4" x 2" cotter pin

1шт.

R990S

PIN - hitch (YR. 53-)

1шт.

3/16" x 1-1/4" cotter pin

1шт.

R991S

PIN - draft, Eagle Hitch (1-3/8" x 5-1/16") (See R1062S) (YR. 53-)

2шт.

7/8" lockwasher and N.F. hex nuts

2шт.

R1004S

BOLT - hex (3/4" x 3" N.F. thread drilled) for hitch (Use R1113S) (YR. 53-55)

1шт.

1/8" x 1" cotter pin

1шт.

RA1007S

DRAWBAR - Eagle Hitch (YR. 53-)

1шт.

1/8" straight Lincoln fitting #5000

1шт.

R-1008-S

PLATE - swivel, hitch (Use T60753) (YR. 53-59)

1шт.

3/16" x 2" cotter pin

1шт.

R1009S

TONGUE (YR. 53-)

1шт.

1/2" x 1-1/2" N.F. hex bolt w/lockwasher and hex nut

1шт.

1/2" x 4-1/2" N.F. hex bolt w/lockwasher and hex nut

1шт.

5/8" x 5" N.F. hex bolt w/lockwasher and hex nut

1шт.

R1010S

BAR - hitch (YR. 53-)

1шт.

R1062S

PIN - Eagle Hitch (1-3/8" x 5-1/16") for John Deere nos. 50, 60, and 70 tractors (See R991S) (YR. 54-)

2шт.

R1112S

BRACKET - Eagle Hitch (2" x 3/16" x 6") (YR. 55-)

1шт.

R1113S

BOLT - hex (3/4" x 3-1/4" N.F. thread drilled) (YR. 55-)

1шт.

T25-1312

NUT - (3/4" N.F. slotted) for R1004S bolt (YR. 53-)

1шт.

T25-1316

NUT - (1" N.F. slotted) for R1008S plate (YR. 53-)

1шт.

T60753

PLATE - swivel, hitch (Consists of (1) R-1008-S, (1) 1" N.F. slotted nut (25-1316) and (1) 3/16" x 2" cotter pin (132-99) (YR. 60-)

1шт.

Выбрано товаров: 28
