Запчасти Case IH 200 (22) - WHEEL BOX ASSEMBLY LEFT HAND, REGULAR

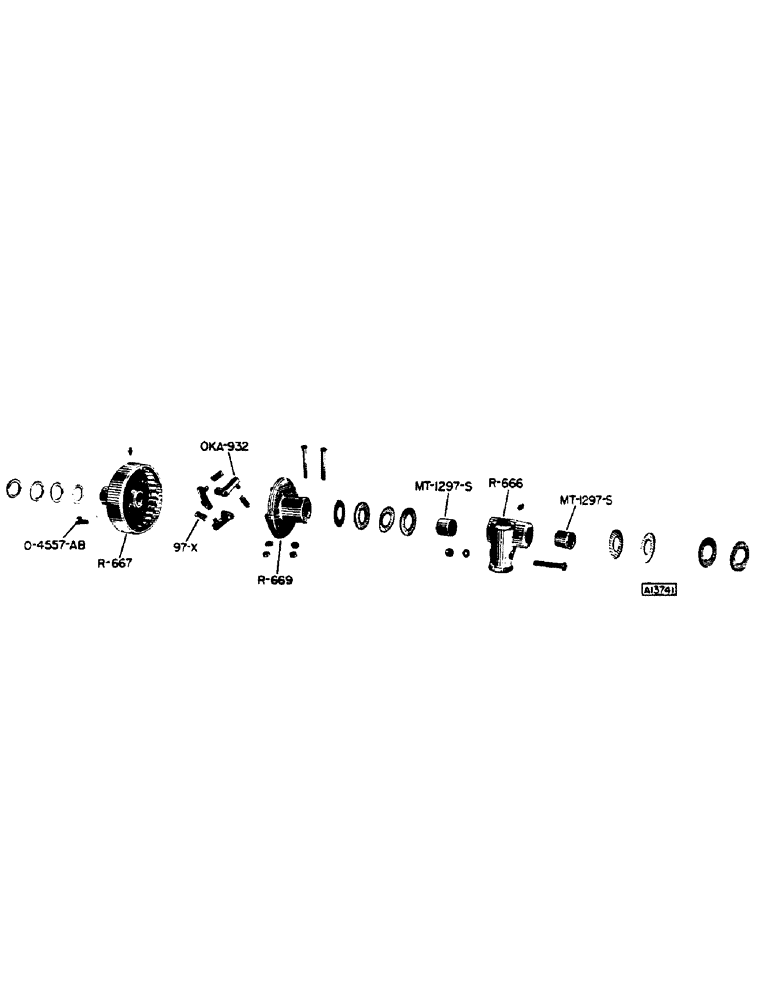

Схема запчастей Case IH 200 - (22) - WHEEL BOX ASSEMBLY LEFT HAND, REGULAR

Артикул

Название

Примечание

Количество

O4557AB

BOLT - wheel, for R667 hub (YR. 53-)

4шт.

MT1297S

BUSHING - adjusting bearing housing (YR. 53-)

2шт.

OKA932

PAWL - L.H. (YR. 53-)

3шт.

R666

HOUSING - L.H. adjusting bearing w/(2) MT1297S bushings (Use T22898) (YR. 53-59)

1шт.

1/8" straight Lincoln fitting #5000

1шт.

1/2" x 3" N.F. hex head bolt w/lockwasher and hex nut

1шт.

R667

HUB - wheel, for O2095FH wheel (YR. 53-)

1шт.

1/8" straight Lincoln fitting #5000

1шт.

R669

PLATE - pawl, L.H. (YR. 53-)

1шт.

1/8" straight Lincoln fitting #5000

1шт.

7/16" x 3-1/2" N.F. hex head bolt w/lockwasher and hex nut

2шт.

97X

SPRING

- pawl (9/16" I.D. x 1-1/2" long, 7 coil, compression) (YR. 53-)

3шт.

Выбрано товаров: 12
