Запчасти Case IH 200 (20) - RIGHT HAND WHEEL BOX, AXLE & GEAR CASE ASSEMBLY

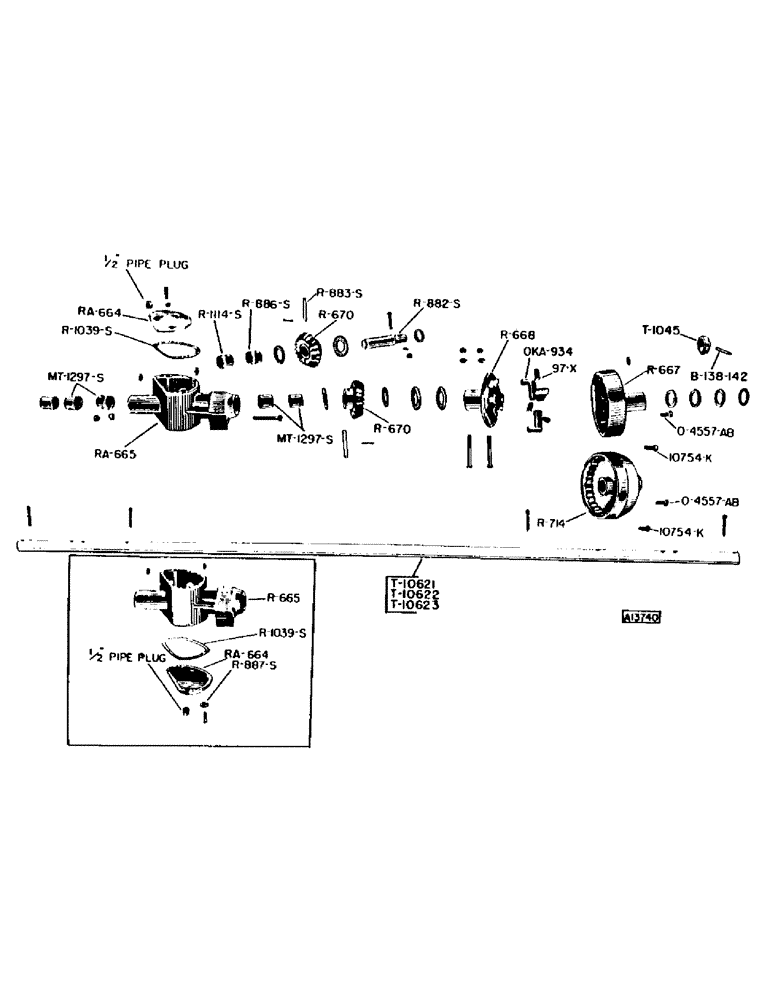

Схема запчастей Case IH 200 - (20) - RIGHT HAND WHEEL BOX, AXLE & GEAR CASE ASSEMBLY

Артикул

Название

Примечание

Количество

T1045

COLLAR - axle (YR. 55-)

2шт.

T10621

AXLE - main (1-1/2" x 83-3/8") regular (YR. 55-)

1шт.

2-1/4" x 1-9/16" x 16 ga. washer

1шт.

2-1/2" x 1-9/16" x 16 ga. washer

1шт.

3" x 1-17/32" x 20 ga. washer

1шт.

1/4" x 2" cotter pin

2шт.

T10622

AXLE - main (1-1/2" x 83-1/4") for dual wheels (YR. 55-)

1шт.

2-1/4" x 1-9/16" x 16 ga. washer

1шт.

2-1/2" x 1-9/16" x 16 ga. washer

1шт.

3" x 1-17/32" x 20 ga. washer

1шт.

1/4" x 2" cotter pin

3шт.

T10623

AXLE - main (1-1/2" x 75-1/8") for edible beans (YR. 55-)

1шт.

2-1/4" x 1-9/16" x 16 ga. washer

1шт.

2-1/2" x 1-9/16" x 16 ga. washer

1шт.

3" x 1-17/32" x 20 ga. washer

1шт.

1/4" x 2" cotter pin

2шт.

04557AB

BOLT - wheel (4 for R667 hub and 6 for R714 hub) (YR. 53-)

1шт.

10754K

X

BOLT - dual wheel (Outer half of dual wheel only) (YR. 53-)

6шт.

MT1297S

BUSHING - gear case and main axle (YR. 53-)

5шт.

OKA934

PAWL - R.H. (YR. 53-)

3шт.

RA-664

COVER - gear case, upper and lower (Use T60669) (YR. 1955)

2шт.

RA-664

COVER - gear case (Use T60669) (YR. 55-59)

1шт.

3/8" x 1-1/4" N.F. hex bolt w/lockwasher less nut

4шт.

1/2" standard pipe plug

1шт.

RA664

COVER - gear case (Upper & lower) (YR. 1955)

2шт.

RA664

COVER - gear cae (YR. 55-)

1шт.

3/8" x 1-1/4" N.F. hex bolt w/lockwasher less nut

4шт.

1/2" standard pipe plug

1шт.

RA-665

GEAR CASE w/(5) MT1297S, (1) R886S and (1) R1114S (Use T22812) (YR. 55-59)

1шт.

1/8" straight Lincoln fitting #5000

3шт.

1/2" x 3" N.F. hex bolt w/lockwasher and hex nut

1шт.

RA665

GEAR case - w/(5)MT1297S, (1) R886S and (1) R1114S bushing (YR. 55-)

1шт.

1/8" straight Lincoln fitting #5000

3шт.

1/2" x 3" N.F. hex bolt w/lockwasher and hex nut

1шт.

1/2" standard pipe plug

2шт.

R667

HUB - wheel, for O2095FH wheel (YR. 53-)

1шт.

1/8" straight Lincoln fitting #5000

1шт.

R668

PLATE - pawl, R.H. (YR. 53-)

1шт.

7/16" x 3-1/2" N.F. hex bolt w/lockwasher and hex nut

2шт.

R670

GEAR - bevel (20 teeth) (YR. 53-)

2шт.

R714

HUB - wheel, for dual wheels (YR. 53-)

1шт.

1/8" x 67-1/2 degree angle Lincoln fitting #5300

1шт.

R882S

SHAFT - output, gear case (1-1/2" rd. x 7") (YR. 53-)

1шт.

7/16" x 2-1/2" N.F. hex bolt w/lockwasher and hex nut

1шт.

2" x 1-3/8" x 20 ga. washer

1шт.

2-1/4" x 1-9/16" x 16 ga. washer

1шт.

3" x 1-17/32" x 20 ga. washer

1шт.

R883S

PIN - bevel gear (7/16" rd. x 3-5/16") (YR. 53-)

2шт.

1/8" x 3/4" cotter pin

2шт.

R884S

AXLE - main (1-1/2" x 83-3/8") (Regular) Use T10621 (YR. 53-55)

1шт.

R886S

BUSHING - outer, gear case output shaft (YR. 53-)

1шт.

R887S

WASHER - fibre, lower gear case cover bolt (YR. 53-55)

4шт.

R1039S

SEAL - felt, gear case covers (YR. 53-)

1шт.

R1055S

AXLE - main (1-1/2" rd. x 75-1/8") for edible beans (Use T10623) (YR. 53-55)

1шт.

R1070S

AXLE - main, for dual wheels (1-1/2" rd. x 83-3/8") (Use T10622) (YR. 53-55)

1шт.

R1114S

BUSHING - inner, gear case output shaft (YR. 53-)

1шт.

97X

SPRING

- pawl (9/16" I.D. x 1-1/2" long, 7 coils, compression) (YR. 53-)

3шт.

B138-142

ROLL pin (1/4" x 2") (YR. 55-)

2шт.

T22812

GEAR CASE (Consists of (1) RA665, (1) R886S and (5) MT1297S) (YR. 60-)

1шт.

T60669

COVER - gear case (Consists of (1) RA664 and (1) 1/2" standard pipe plug (221-4) (YR. 60-)

2шт.

Выбрано товаров: 60
