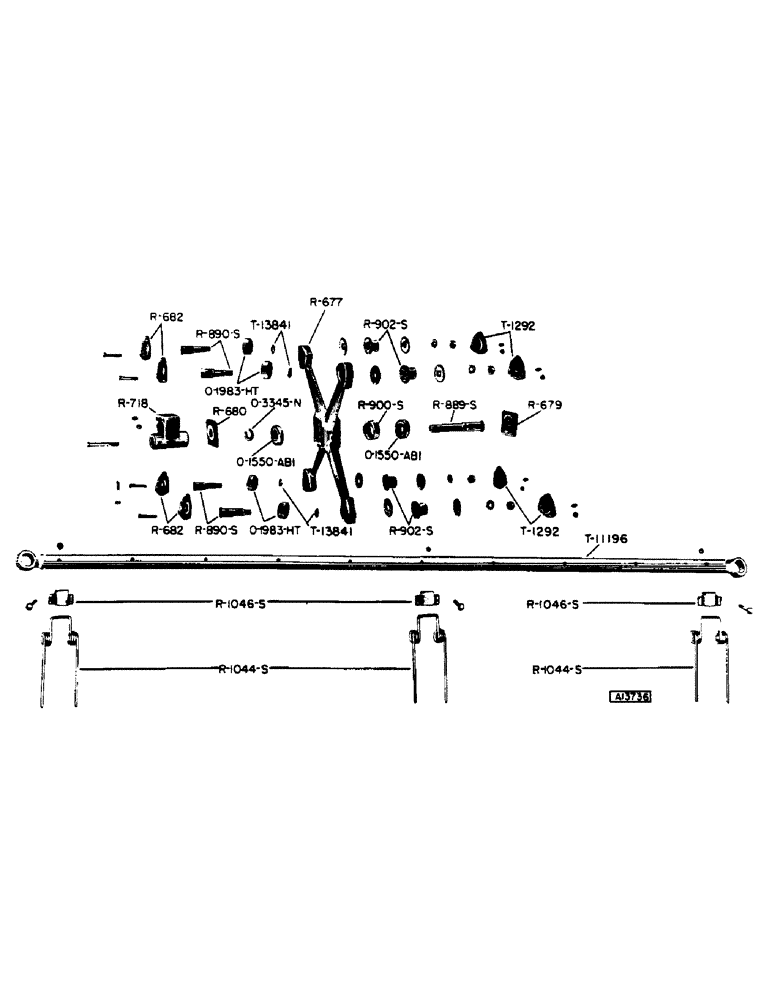

Запчасти Case IH 200 (17) - TOOTH PIPE & REEL SPIDER LEFT HAND REAR, BALL BEARING

T1292

CAP - bearing, tooth bar, plain (See R681) (YR. 57-)

4шт.

T11196

PIPE - tooth, cpt. (See R936S) (YR. 55-)

4шт.

T13841

SNAP RING - tooth bar bearing shaft (YR. 57-)

4шт.

O1550AB1

BEARING - hub, spider (N.D. #7206) (YR. 53-)

2шт.

VT2965

SNAP RING - tooth bar bearing shaft (Use T13841) (YR. 53-57)

4шт.

O1983HT

BEARING - tooth bar (N.D. #5205) (YR. 53-)

4шт.

O3345N

RING, SNAP

SNAP RING - spider hub (YR. 53-1)

1шт.

R677

SPIDER - reel, rear (YR. 53-)

1шт.

2-1/4" x 9/16" x 11 ga. washer (Outer)

4шт.

2-1/4" x 9/16" x 16 ga. washer (Inner)

4шт.

R679

CAP - hub, reel spider (Plain) (YR. 53-)

1шт.

1/8" straight Lincoln fitting #5000

1шт.

R680

CAP - hub, reel spider (Open) (YR. 53-)

1шт.

3/8" x 3-1/2" N.F. hex bolt w/lockwasher less nut

4шт.

R681

CAP - bearing, tooth bar (Plain) See T1292 (YR. 53-57)

4шт.

R682

CAP - bearing, tooth bar (Open) (YR. 53-)

4шт.

5/16" x 2" N.F. hex bolt w/hex nut

12шт.

R683

MOUNTING - shaft, rear spider (See R718) (YR. 53-55)

1шт.

3/8" x 2-1/2" N.F. hex bolt w/lockwasher and hex nut

1шт.

1/2" x 3-1/4" N.F. hex bolt w/lockwasher and hex nut

2шт.

R718

MOUNTING - shaft, rear spider (See R683) (YR. 55-)

1шт.

3/8" x 2-1/2" N.F. hex bolt w/lockwasher and hex nut

1шт.

1/2" x 3-1/4" N.F. hex bolt w/lockwasher and hex nut

2шт.

R889S

SHAFT - spider, rear (YR. 53-)

1шт.

R890S

SHAFT - bearing, tooth bar (YR. 53-)

4шт.

5/8" lockwasher and hex nut

4шт.

R900S

SPACER - bearing, for hub bearing (YR. 53-)

1шт.

R902S

BUSHING - rubber, tooth bar (YR. 53-)

4шт.

R936S

PIPE - tooth (See T11196) (YR. 53-55)

4шт.

R1044S

TOOTH

TEETH - rake (YR. 53-)

36шт.

R1046S

CLAMP

- rake teeth (YR. 53-55)

36шт.

3/8" x 2-1/2" carriage bolt w/lockwasher and hex nut

36шт.
