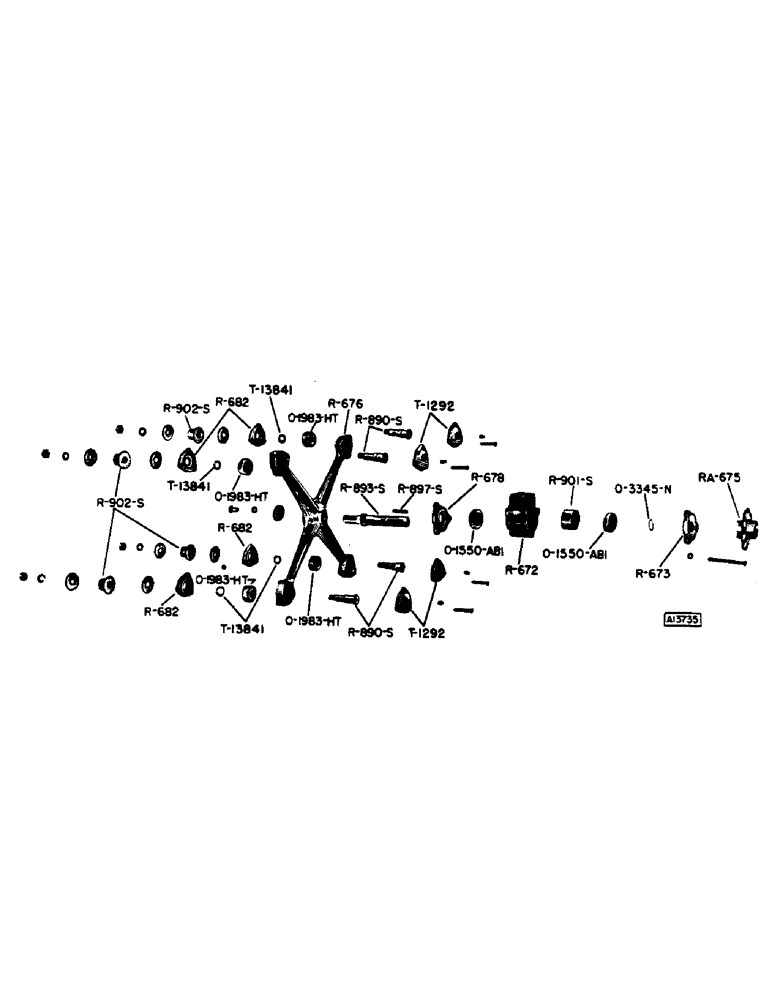

Запчасти Case IH 200 (16) - REEL SPIDER RIGHT HAND FRONT, BALL BEARING

T1292

CAP - bearing, tooth bar - plain (YR. 57-)

4шт.

1/8" straight Lincoln fitting #5000

4шт.

T13841

SNAP RING - bearing shaft, tooth bar (YR. 57-)

4шт.

O1550AB1

BEARING - spider hub (N.D. #7206) (YR. 53-)

2шт.

VT2965

SNAP RING - bearing shaft, tooth bar (Use T13841) (YR. 53-57)

4шт.

O1983HT

BEARING - tooth bar (N.D. #5205) (YR. 53-)

4шт.

O3345N

RING, SNAP

SNAP RING - reel drive shaft (YR. 53-)

1шт.

R672

HOUSING - bearing, reel shaft (YR. 53-)

1шт.

1/8" straight Lincoln fitting #5000

1шт.

R673

CAP - bearing, reel shaft (Plain) (YR. 53-)

1шт.

1/2" x 4" N.C. hex bolt w/lockwasher less nut

3шт.

RA675

SPROCKET - driven, 9 tooth (On reel) (YR. 53-)

1шт.

R676

SPIDER - reel, front (YR. 53-)

1шт.

2-1/4" x 9/16" x 11 ga. washer (Outer)

4шт.

2-1/4" x 9/16" x 16 ga. washer (Inner)

4шт.

R678

CAP - bearing, reel shaft (Threaded) (YR. 53-)

1шт.

R681

CAP - bearing, tooth bar (Plain) (Use T1292) (YR. 53-57)

4шт.

1/8" straight Lincoln fitting #5000

4шт.

R682

CAP - bearing, tooth bar (Open) (YR. 53-)

4шт.

R890S

SHAFT - bearing, tooth bar (YR. 53-)

4шт.

5/8" lockwasher and hex nut

4шт.

R-893-S

SHAFT - drive, reel (Use T25069) (YR. 53-60)

1шт.

2" x 1/2" x 1/4" washer

1шт.

1/2" x 1" N.C. hex bolt w/lockwasher less nut

1шт.

R897S

KEY - drive, reel sprocket (5/16" square x 2-1/4") (YR. 53-)

1шт.

R901S

SPACER - bearing, front spider (YR. 53-)

1шт.

R902S

BUSHING - rubber, tooth bar (YR. 53-)

4шт.

T25069

SHAFT - drive, reel (YR. 61-)

1шт.
