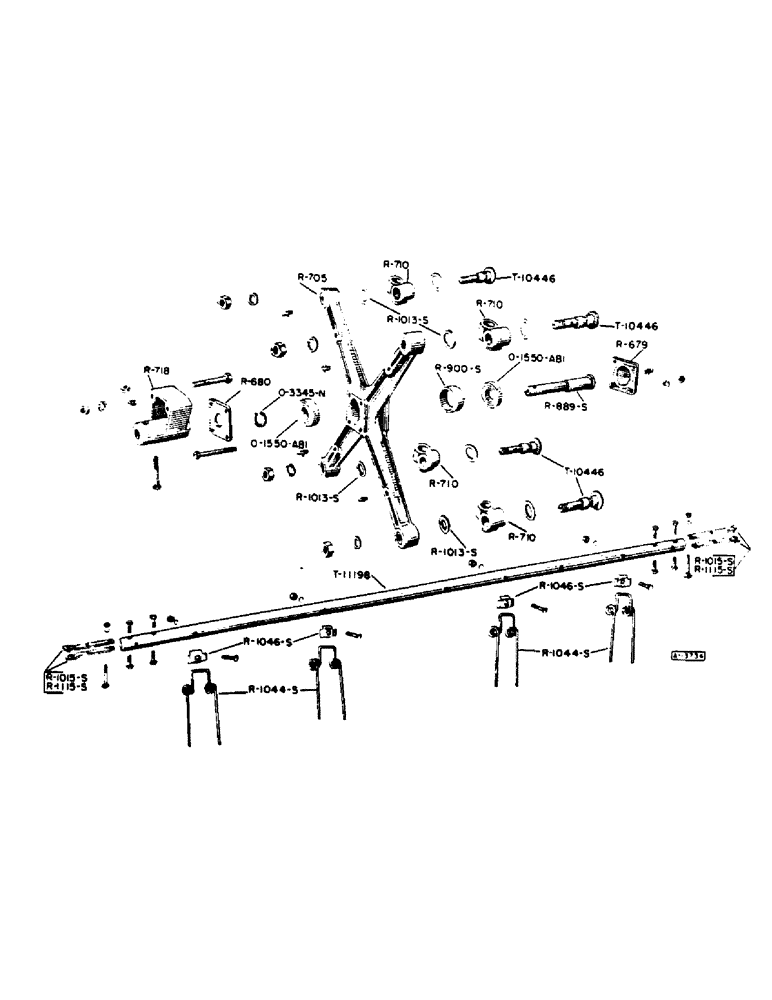

Запчасти Case IH 200 (15) - REEL SPIDER LEFT HAND REAR & TOOTH PIPE

T10446

SHAFT - bearing, tooth bar (YR. 57-)

4шт.

3/4" lockwasher and N.F. hex nut

4шт.

1-3/4" x 1-3/16" x 16 ga. washer

4шт.

T11198

PIPE - tooth (1-1/4" rd. x 79-7/16") (Uses R1115S strap) (YR. 57-)

4шт.

O1550AB1

BEARING - spider hub (N.D. #7206) (YR. 53-)

2шт.

O3345N

RING, SNAP

SNAP RING - rear spider shaft (YR-53-)

1шт.

R679

CAP - hub, rear reel spider (YR. 53-)

1шт.

1/8" straight Lincoln fitting #5000

1шт.

R680

CAP - hub, inner rear reel spider (YR. 53-)

1шт.

3/8" x 3-1/2" N.C. hex bolt w/lockwasher and hex nut

4шт.

R683

MOUNTING - shaft, rear spider (See R718) (YR. 53-55)

1шт.

3/8" x 2-1/2" N.F. hex bolt w/lockwasher and nut

1шт.

1/2" x 3-1/4" N.F. hex bolt w/lockwasher and nut

2шт.

R705

SPIDER - reel, rear (YR. 53-)

1шт.

1/8" straight Lincoln fitting #5000

4шт.

R-710

END - tooth pipe (Use T22772) (YR. 55-59)

8шт.

R718

MOUNTING - shaft, rear spider (See R683) (YR. 55-)

1шт.

3/8" x 2-1/2" N.F. hex bolt w/lockwasher and nut

1шт.

1/2" x 3-1/4" N.F. hex bolt w/lockwasher and nut

2шт.

R889S

SHAFT - rear spider (1-5/8" rd. x 7-1/8") (YR. 55-)

1шт.

R900S

SPACER - bearing, rear spider (YR. 53-)

1шт.

R1013S

WASHER - wrot (1-1/2" x 1-1/16" x 16 ga.) for beam shaft (YR. 53-)

4шт.

RA1014S

SHAFT - bearing, tooth (1-3/4" rd. x 4-5/8") (Use T10446) (YR. 53-57)

4шт.

R1015S

STRAP

- clamp (See R1115S) (External type) (YR. 53-55)

16шт.

3/8" x 2-3/4" N.C. hex bolt w/lockwasher and hex nut

8шт.

7/16" x 2-3/4" carriage bolt w/lockwasher and hex nut

8шт.

7/16" x 2-3/4" N.C. hex bolt w/lockwasher and hex nut

8шт.

R1016S

PIPE - tooth (1-1/4" pipe x 80-5/8") Uses R1015S strap (See T11198 & R1116S) (YR. 53-55)

4шт.

R1044S

TOOTH

- rake (YR. 53-57)

40шт.

R1044S

TOOTH

- rake (YR. 57-)

36шт.

R1046S

CLAMP

- rake tooth (YR. 53-57)

40шт.

3/8" x 2-1/2" carriage bolt w/lockwasher and hex nut

40шт.

R1046S

CLAMP

- rake tooth (YR. 57-)

36шт.

3/8" x 2-1/2" carriage bolt w/lockwasher and hex nut

36шт.

R1115S

STRAP

- clamp (See R1015S) (Internal type) (YR. 55-)

16шт.

3/8" x 5/8" N.F. hex bolt w/lockwasher less nut

32шт.

7/16" x 2-1/2" carriage bolt w/lockwasher and nut

8шт.

R1116S

PIPE - tooth (1-1/4" pipe x 79-3/8") Uses R115S strap (See T11198 & R1016S) (YR. 55-57)

4шт.

T22772

BOX - wheel (Consists of (1) R711 and (2) MT-1297-S) (YR. 60-)

8шт.
