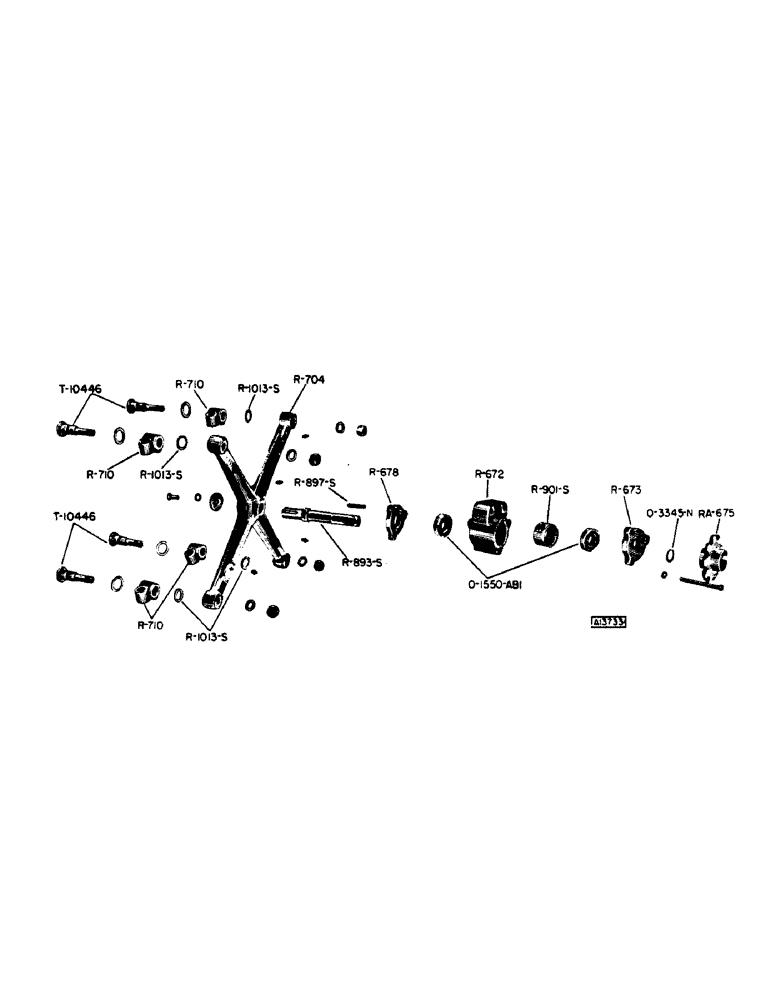

Запчасти Case IH 200 (14) - REEL SPIDER RIGHT HAND FRONT

T10446

SHAFT - bearing, tooth bar (YR. 57-)

4шт.

1-3/4" x 1-3/16" x 16 ga. washer

4шт.

3/4" lockwasher and N.F. hex nut

4шт.

O1550AB1

BEARING - hub (N.D. #7206) (YR. 53-)

2шт.

O3345N

RING, SNAP

SNAP RING - reel drive and spider shaft (YR. 53-)

1шт.

R672

HOUSING - bearing, reel shaft (YR. 53-)

1шт.

1/8" straight Lincoln fitting #5000

1шт.

R673

CAP - bearing, reel shaft (Plain) YR. 53-)

1шт.

3/8" x 4-1/4" N.C. hex bolt w/lockwasher less nuts

3шт.

RA675

SPROCKET - driven, on reel (9 tooth) (YR. 53-)

1шт.

R678

CAP - bearing, reel shaft (Threaded) (YR. 53-)

1шт.

R704

SPIDER - reel, front (YR. 53-)

1шт.

1/8" straight Lincoln fitting #5000

4шт.

R-710

END - tooth pipe (Use T22772) (YR. 53-59)

4шт.

R-893-S

SHAFT - drive, reel (Use T25069) (YR. 53-60)

1шт.

1/2" x 1" N.C. hex bolt w/lockwasher less nut

1шт.

2" x 17/32" x 1/4" washer

1шт.

R897S

KEY - drive, reel sprocket (5/16" square x 2-1/4") (YR. 53-)

1шт.

R901S

SPACER - bearing, front spider (YR. 53-)

1шт.

R1013S

WASHER - wrot (1-1/2" x 1-1/16 x 16 ga.) for bearing shaft (YR. 53-)

4шт.

RA1014S

SHAFT - bearing, tooth bar (1-3/4" rd. x 4-5/8") Use T10446 (YR. 53-57)

4шт.

T22772

BOX - wheel (Consists of (1) R711 and (2) MT-1297-S) (YR. 60-)

4шт.

T25069

SHAFT - drive, reel (YR. 61-)

1шт.
