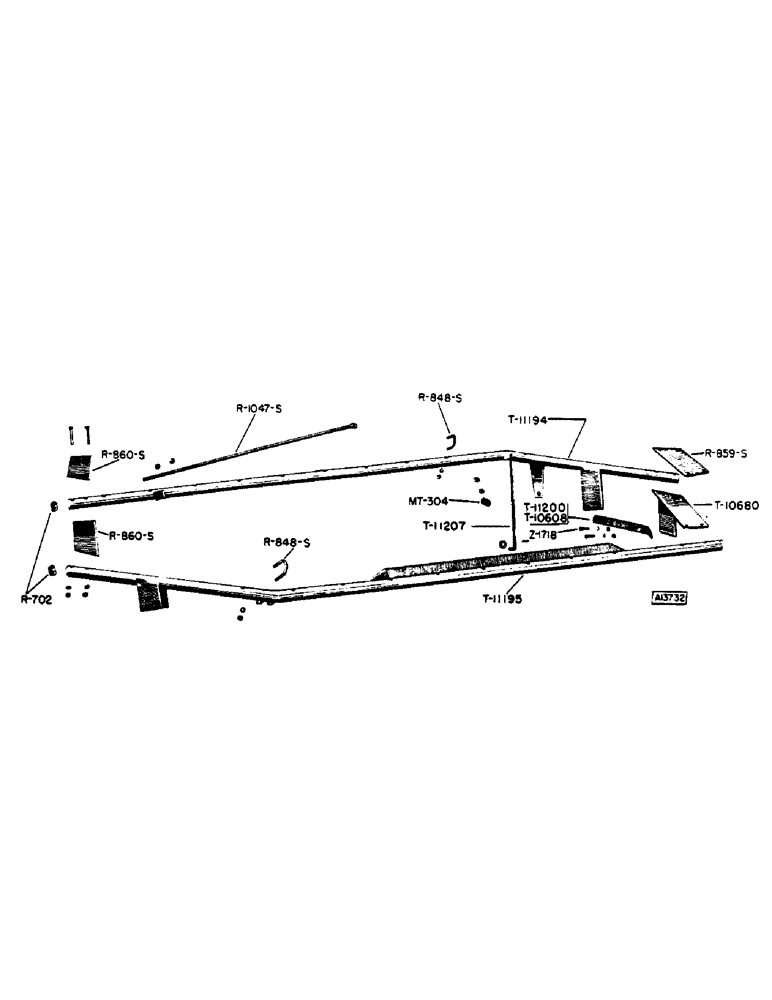

Запчасти Case IH 200 (13) - REEL FRAME

T10608

BRACE - support, drive shaft (Use T11200) (YR. 1955)

1шт.

T10680

PLATE - reel frame, R.H. lower cpt. (YR. 55-)

1шт.

1/2" x 1-1/2" N.C. hex bolt w/lockwasher and hex nut

1шт.

T11194

FRAME - front reel, cpt. (YR. 55-)

1шт.

1/2" x 3-1/4" N.C. hex bolt w/lockwasher and hex nut

1шт.

1/2" x 3-3/4" N.C. hex bolt w/lockwasher and hex nut

1шт.

T11195

FRAME - rear reel, cpt. (See RA878S) (YR. 55-)

1шт.

T11200

BRACE - support, drive shaft (YR. 56-)

1шт.

T11207

ROD - reel support (YR. 57-)

1шт.

1/2" N.C. hex nut

2шт.

1-1/2" x 11/16" x 16 ga. washer

1шт.

3/16" x 1-1/4" cotter pin

1шт.

MT304

WASHER - reel support rod (YR. 53-)

1шт.

R702

SPACER BLOCK - reel pipe end (YR. 53-)

4шт.

R848S

U-BOLT - reel frame (1/2" rd. x 9-3/8") (YR. 53-)

2шт.

1/2" lockwasher and hex nut

4шт.

RA850S

ROD - reel support (5/8" rd. x 18-3/8") Use T11207) (YR. 53-57)

1шт.

1/2" N.C. hex. nut

2шт.

1-1/2" x 11/16" x 16 ga. washer

1шт.

3/16" x 1-1/4" cotter pin

1шт.

R859S

PLATE - reel frame, R.H. upper (YR. 53-)

1шт.

1/2" x 3-1/4" N.C. hex bolt w/lockwasher and hex nut

4шт.

R860S

PLATE - reel frame, L.H. (YR. 53-)

2шт.

1/2" x 3" N.C. hex bolt w/lockwasher and hex nut

4шт.

RA868S

BRACE - support, drive shaft (Use T11200) (YR. 53-55)

1шт.

R875S

PLATE - reel frame, R.H. lower (Use T10680) (YR. 53-55)

1шт.

1/2" x 1-1/2" N.C. hex bolt w/lockwasher and hex nut

1шт.

RA877S

FRAME - reel, front (Use T11194) (YR. 53-55)

1шт.

1/2" x 3-1/4" N.C. hex bolt w/lockwasher and hex nut

1шт.

1/2" x 3-3/4" N.C. hex bolt w/lockwasher and hex nut

1шт.

RA878S

FRAME - reel, rear (See T11195) (YR. 53-55)

1шт.

R1047S

BRACE - front, reel frame (5/8" rd. x 44-1/2") (YR. 53-)

1шт.

5/8" hex nut

2шт.

Z1718

BOLT

- plow (1/2" x 1-3/4" P#3 w/hex nut) for RA868A brace (YR. 53-55)

1шт.
