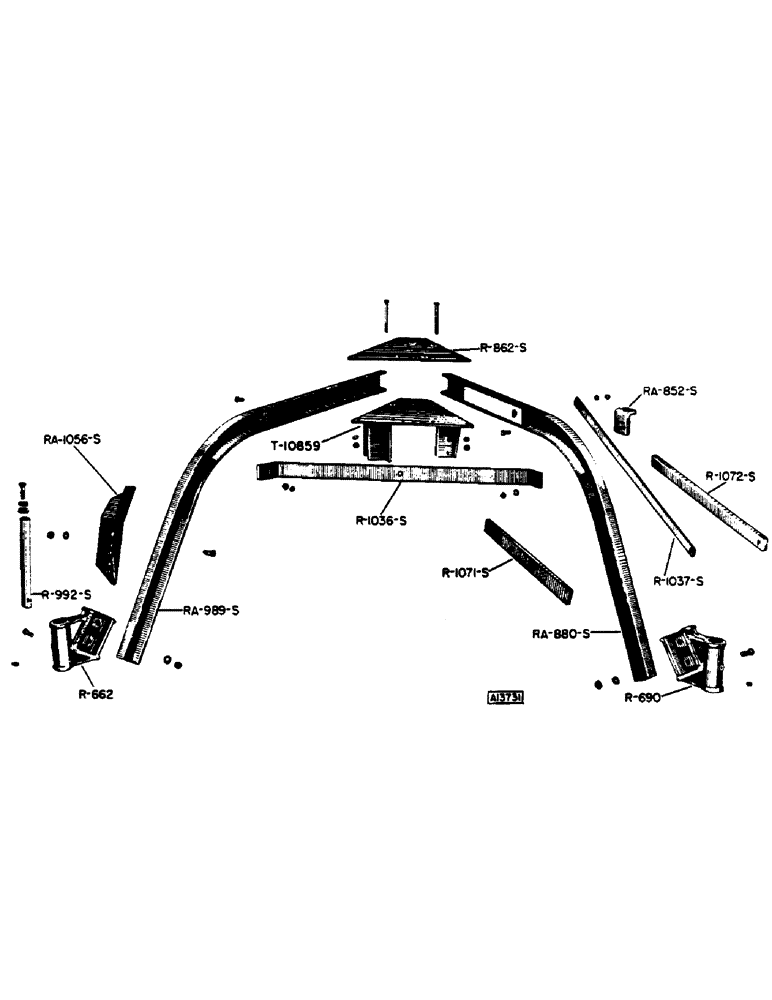

Запчасти Case IH 200 (12) - MAIN FRAME

T10859

PLATE - connecting, main frame, lower (Replaces RA876S - inter.) (YR. 55-)

1шт.

R662

BEARING - frame leg, L.H. (YR. 53-)

1шт.

1/8" straight Lincoln fitting #5000

1шт.

1/2" x 1-1/2" N.C. hex bolt w/lockwasher and hex nut

4шт.

R690

BEARING - frame leg, R.H. (YR. 53-)

1шт.

1/8" straight Lincoln fitting #5000

1шт.

1/2" x 1-1/2" N.C. hex bolt w/lockwasher and hex nut

4шт.

RA852S

BRACKET - reel frame mounting, right rear (YR. 53-)

1шт.

7/16" x 1-3/4" N.C. hex bolt, w/lockwasher and hex nut

2шт.

R862S

PLATE - connecting, main frame, upper (YR. 53-)

1шт.

1/2" x 4-1/2" N.C. hex bolt w/lockwasher and hex nut

3шт.

1/2" x 4-3/4" N.C. hex bolt w/lockwasher and hex nut

1шт.

RA876S

PLATE - connecting, main frame, lower (Use T10859) (YR. 53-55)

1шт.

RA880S

FRAME - main, R.H. (YR. 53-)

1шт.

RA989S

FRAME - main, L.H. (YR. 53-)

1шт.

R992S

SHAFT - height adjusting, Eagle Hitch (1-1/4" rd. x 15") (YR. 53-)

2шт.

5/16" x 3/4" N.C. hex bolt less nut

2шт.

5/16" lockwasher

2шт.

1-3/4" x 5/16" x 16 ga. washer

2шт.

2-1/2" x 1-9/32" x 16 ga. washer

2шт.

R1036S

BRACE - frame, center (YR. 53-)

1шт.

7/16" x 1-1/4" N.C. bolt w/lockwasher and hex nut

2шт.

R1037S

BRACE - frame, R.H. (YR. 53-)

1шт.

7/16" x 1" N.C. hex bolt w/lockwasher and hex nut

2шт.

RA1056S

ANCHOR - frame, reel frame, L.H. (YR. 53-)

1шт.

1/2" x 1-1/4" N.C. hex bolt w/lockwasher and hex nut

2шт.

R1071S

BRACE - frame, R.H. lower (Use w/dual wheels only) (YR. 53-)

1шт.

7/16" x 1-3/4" N.C. hex bolt w/lockwasher and hex nut

1шт.

1/2" x 5" N.C. hex bolt w/lockwasher and hex nut

1шт.

R1072S

BRACE - frame, R.H. upper (Use w/dual wheels only) (YR. 53-)

1шт.
