Запчасти Case IH 200 (11) - ADJUSTING SHAFT PULLEYS CABLES & LIFT RODS, MANUAL & HYDRAULIC CONTROL

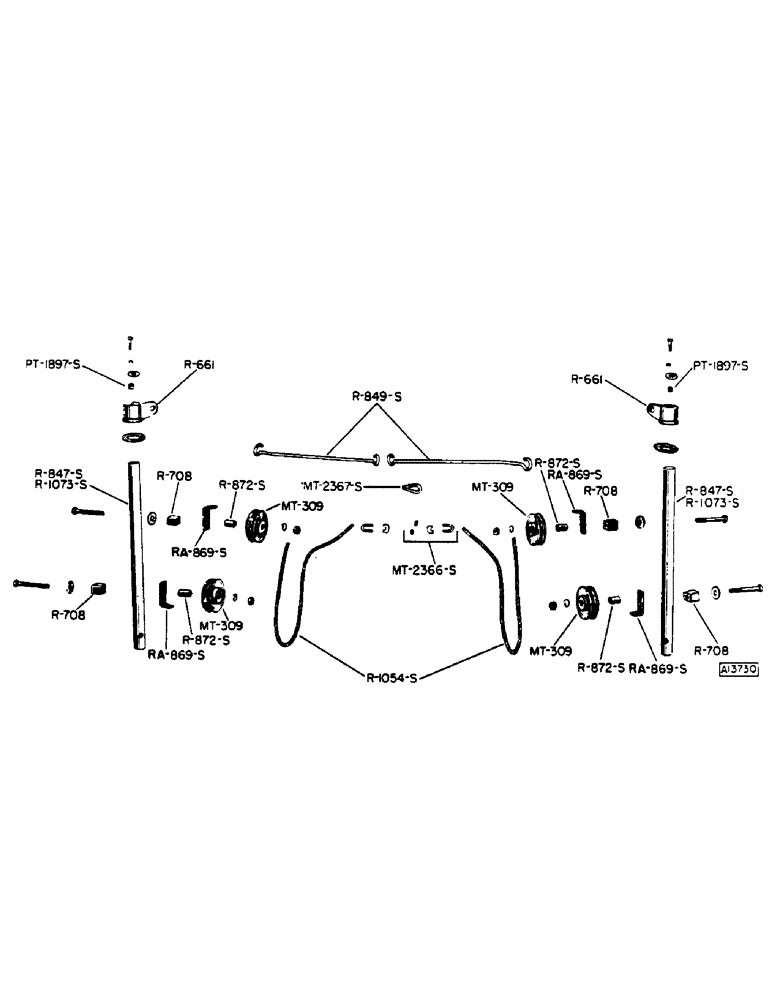

Схема запчастей Case IH 200 - (11) - ADJUSTING SHAFT PULLEYS CABLES & LIFT RODS, MANUAL & HYDRAULIC CONTROL

Артикул

Название

Примечание

Количество

MT309

PULLEY - cable (YR. 53-)

4шт.

MT2366S

CLIP - cable (YR. 53-)

4шт.

MT2367S

THIMBLE - cable (YR. 53-55)

4шт.

PT1897S

BUSHING (1/4" x 7/16" ream to 13/32") on height adjusting shaft (YR. 53-)

2шт.

R661

ANCHOR - cable (YR. 53-)

2шт.

R708

SPACER - pulley (YR. 53-)

4шт.

1-1/2" x 17/32" x 14 ga. washer

4шт.

1/2" x 4" N.C. hex bolt w/lockwasher and hex nut

3шт.

1/2" x 4-1/2" N.C. hex bolt w/lockwasher and hex nut

1шт.

R847S

SHAFT - height adjusting (1-1/4" rd. x 21") Use R1073S (YR. 53-55)

2шт.

R849S

ROD - lift (3/8" rd. 46-1/2") (YR. 53-)

2шт.

RA869S

GUIDE - cable (YR. 53-)

4шт.

R872S

BEARING - pulley (3/4 rd. x 1-1/4") (YR. 53-)

4шт.

R1054S

CABLE - reel elevating (5/16" dia. x 38") (YR. 53-)

2шт.

R1073S

SHAFT - height adjusting (1-1/4" rd. x 18-3/4") (YR. 55-)

2шт.

Выбрано товаров: 15
