Запчасти Case IH 200 (10) - LEVER, MANUAL CONTROL, 53-55

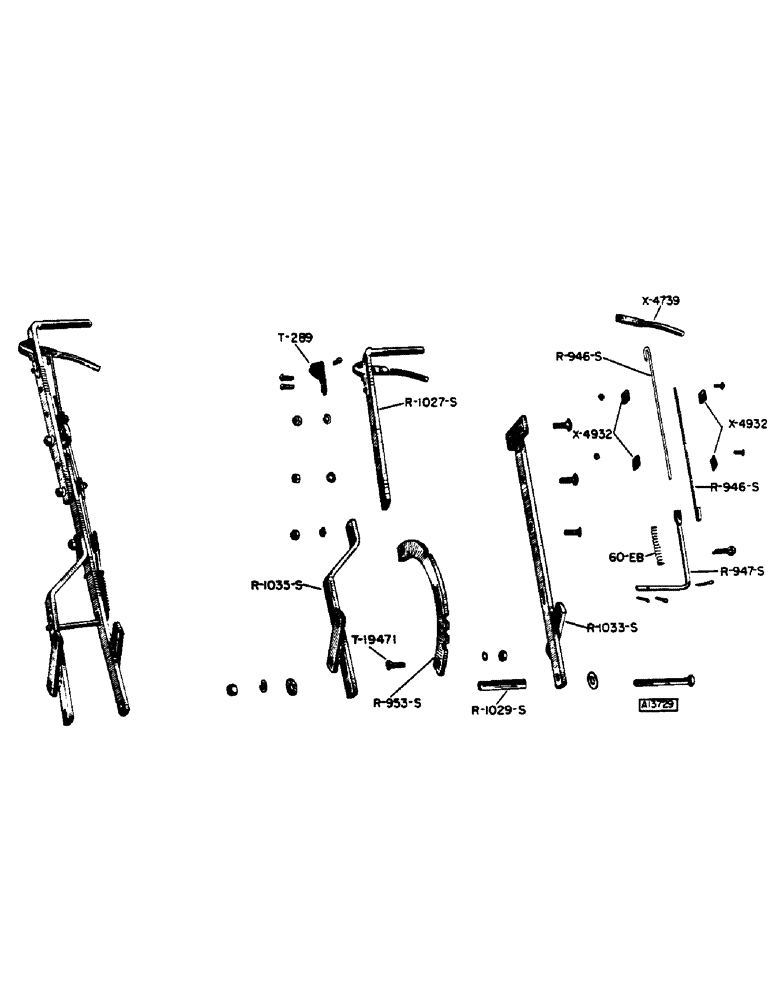

Схема запчастей Case IH 200 - (10) - LEVER, MANUAL CONTROL, 53-55

Артикул

Название

Примечание

Количество

T19471

PLOW BOLT

BOLT - plow (3/8" x 1-1/4" P#3 w/hex nut) for R953S (YR. 53-55)

2шт.

T289

BRACKET - lever latch handle (YR. 53-55)

1шт.

1/4" x 7/8" round head rivet

2шт.

1/4" x 3/4" round head rivet

1шт.

R946S

ROD - latch (3/16" rd. x 13") (YR. 53-55)

2шт.

R947S

PLUNGER - raising lever (3/8" rd. x 10-5/8") (YR. 53-55)

1шт.

1/8" x 3/4" cotter pin

3шт.

5/16" x 3/4" w/13/32 eye cotter pin

1шт.

R953S

QUADRANT (YR. 53-55)

1шт.

R1027S

LEVER - upper w/T289 bracket and X4739 handle (YR. 53-55)

1шт.

R1029S

BEARING AND SPACER - lever (3/8" pipe x 3-5/8" reamed to 1/2") (YR. 53-55)

1шт.

R1033S

LEVER - lower (YR. 53-55)

1шт.

7/16" x 1-1/4" carriage bolt w/lockwasher and N.C. hex nuts

2шт.

3/8" x 1-1/4" carriage bolt w/lockwasher and N.C. hex nut

1шт.

1-1/4" x 9/16" x 16 ga. washer

1шт.

1/2" x 4-1/2" hex head bolt w/lockwasher and hex nut

1шт.

R1035S

BRACE - lever (YR. 53-55)

1шт.

X4739

HANDLE - latch (27/64" rd. x 6-1/4") (YR. 53-55)

1шт.

X4932

CLAMP - latch rod (YR. 53-55)

4шт.

1/4" x 3/4" carriage bolt w/lockwasher and hex nut

2шт.

Z1597

X

BOLT - plow (3/8" x 1-1/4" P#3 w/hex nut) for R953S (Use T19471) (YR. 53-55)

2шт.

3/8" lockwasher

2шт.

60EB

SPRING

- latch rod (7/16" I.D. x 19/32" O.D. x 3" long, 14-1/2 coils, compression) (YR. 53-55)

1шт.

Выбрано товаров: 23
