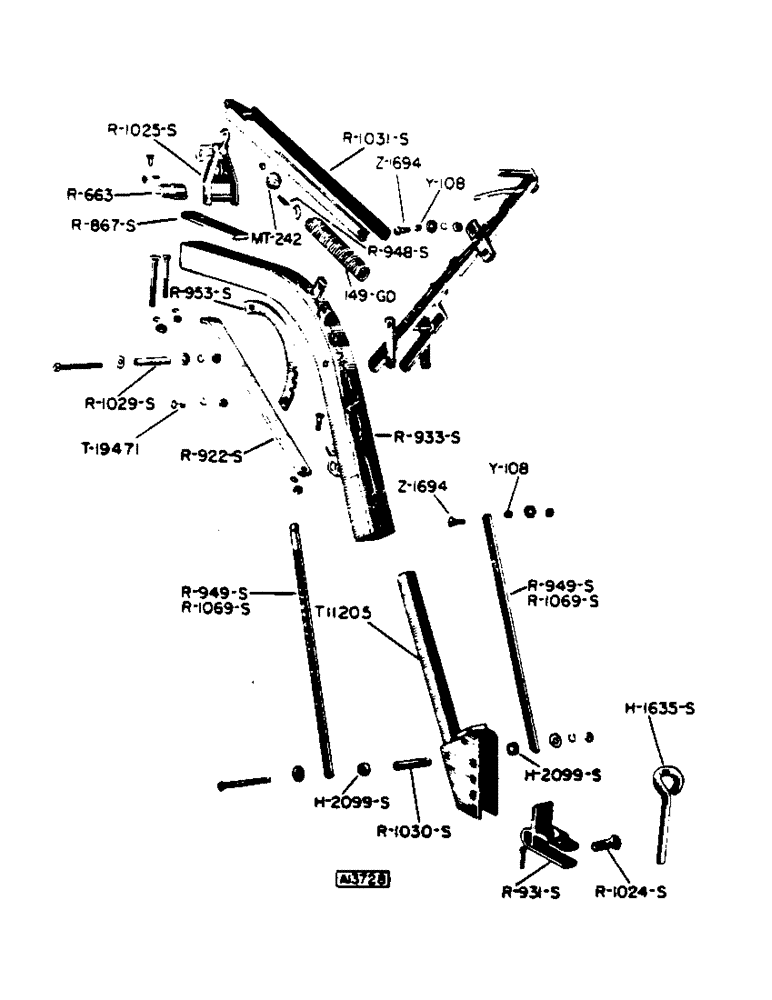

Запчасти Case IH 200 (09) - TRACTOR HITCH, MANUAL CONTROL, 53-55

T11205

PLATE - hitch (YR. 53-55)

1шт.

T19471

PLOW BOLT

BOLT - plow (3/8" x 1-1/4" P#3 w/hex nut) for R953S (YR. 53-55)

2шт.

H1635S

PIN - draft (3/4" rd. x 12") (YR. 53-55)

1шт.

H2099S

SPACER - strap, front (YR. 53-55)

2шт.

MT242

WASHER - eyebolt, lift spring (YR. 53-55)

1шт.

R663

BEARING - pivot, lift link (YR. 53-55)

1шт.

1/8" straight Lincoln fitting #5000

1шт.

1/2" x 1" hex bolt N.F. thread w/lockwasher less nut

2шт.

R867S

SUPPORT - pivot bearing (YR. 53-55)

1шт.

1/2" x 4-1/2" hex head bolt N.F. thread w/lockwasher and hex nut

1шт.

5/8" x 5-1/2" hex head bolt N.F. thread w/lockwasher and hex nut

1шт.

R922S

SUPPORT - tongue (YR. 53-55)

1шт.

1/2" x 1-1/2" hex head bolt N.F. thread w/lockwasher and hex nut

1шт.

CLEVIS - hitch (YR. 53-55)

1шт.

R933S

TONGUE (YR. 53-55)

1шт.

R948S

EYEBOLT - assisting spring (1/2" rd. x 7-3/16") (YR. 53-55)

1шт.

1/2" hex nut

1шт.

R949S

STRAP - lever (1-1/4" x 3/8" x 21") Use R1069S in pairs (YR. 53-54)

2шт.

1/2" x 5" hex head bolt N.F. thread w/lockwasher and hex nut

1шт.

1-1/4" x 9/16" x 16 ga. washer

2шт.

RA-953-S

QUADRANT - lever (YR. 53-55)

1шт.

R1024S

PIN - rivet (3/4" x 2-1/2" drilled) for R931S clevis (YR. 53-55)

1шт.

3/16" x 1-1/2" cotter pin

1шт.

R1025S

ARM - pivot, lift link (YR. 53-55)

1шт.

R1029S

PIPE - lever bearing (3/8" x 3-5/8" reamed to 1/2") (YR. 53-55)

1шт.

R1030S

PIPE - lever strap (3/8" x 3-7/8" reamed to 1/2") (YR. 53-55)

1шт.

R1031S

STRAP - saddle (YR. 53-55)

1шт.

1-1/4" x 9/16" x 16 ga. washer

2шт.

R1032S

PLATE - hitch (Use T11205) (YR. 53-55)

1шт.

R1069S

STRAP - lever (1-1/4" x 3/8" x 24-3/4") See R949S (YR. 53-55)

2шт.

Y108

SPACER - pivot (3/8" pipe x 13/32" reamed to 1/2") (YR. 53-55)

4шт.

Z1597

X

BOLT - plow (3/8" x 1-1/4" P#3 w/ hex nut) for R953S (Use T19471) (YR. 53-55)

2шт.

Z1694

BOLT

- plow (1/2" x 1-1/2" P#3 N.C. thread w/lockwasher and hex nut) for R949S and R1031S (YR. 53-55)

2шт.

149GD

SPRING - assisting lift (YR. 53-55)

1шт.
