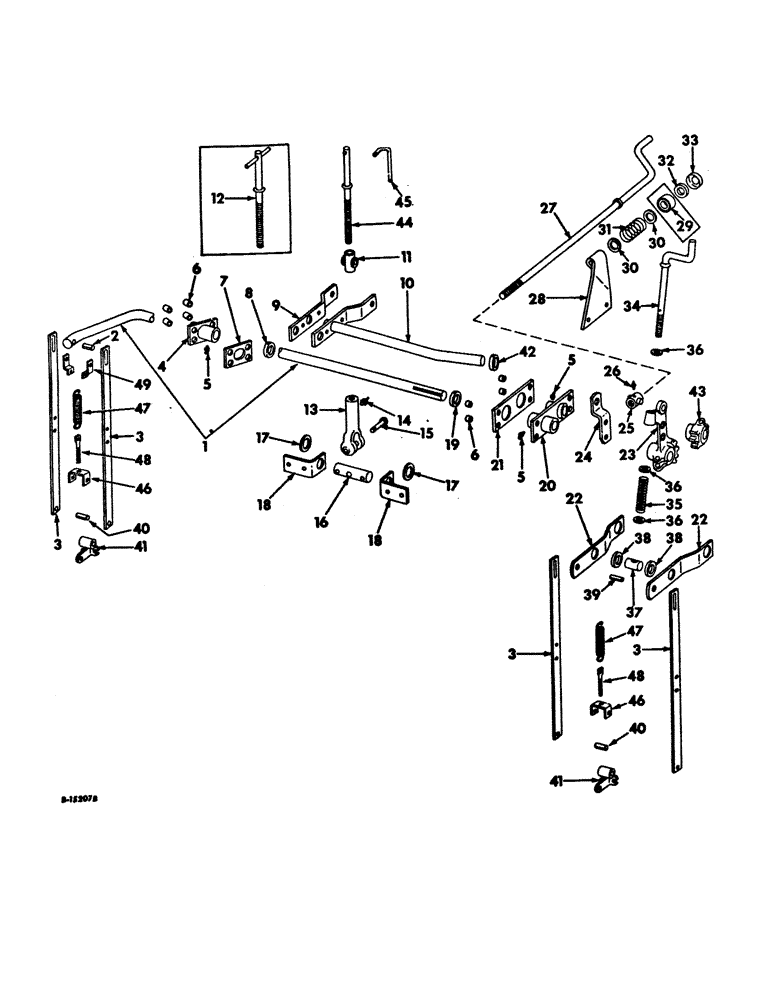

Запчасти Case IH 16 (A-20) - LIFT AND RELATED PARTS

1

473874R1

SHAFT, lift

1шт.

20341R1

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

2

473875R1

SPACER, lift shaft, 1963 to 1966, rakes w/o basket float

1шт.

2

473895R1

SPACER, basket lift strap, 1967 and since

1шт.

3

473278R2

STRAP, basket lift

4шт.

21946R1

PIN, 1/2 x 2-11/16 C-Z std-hd

1шт.

22895R1

PIN,1/2" x 2 7/8"

1/2 x 2-7/8 C-Z std-hd

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

9шт.

4

473876R91

BEARING ASSY, lift shaft, LH

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

4шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

4шт.

608085R1

WASHER

1-13/32 x 2 x 16 ga C-Z

1шт.

5

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 self-tap, 45 deg lub

3шт.

6

473291R1

SPACER, bearing support

8шт.

7

473878R1

PAD, LH bearing assembly

1шт.

8

473223R1

COLLAR, lift shaft

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

9

473880R1

STRAP, front lift

1шт.

10

473879R11

SHAFT ASSY, front lift

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 C-Z hex-hd mach

2шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

2шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

2шт.

11

518609R1

SWIVEL, tilt

1шт.

12

SCREW, tilt, order ref nos. 44 & 45

1шт.

13

473881R1

YOKE, tilt screw

1шт.

14

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap, lub, in tilt screw yoke

1шт.

15

522856R1

PIN,12.7mm OD x 63.5mm L

1/2 x 2-1/2 std hd

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

16

473882R1

BAR, front pivot

1шт.

17

473883R1

PAD

2шт.

20885R1

WASHER

1-5/32 x 2 x 16 ga C-Z

2шт.

18

473884R1

BRACKET, front pivot

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

4шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

4шт.

19

473223R1

COLLAR, lift shaft

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

20

473885R91

BEARING ASSY, lift shaft, RH

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

4шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

4шт.

608085R1

WASHER

1-13/32 x 2 x 16 ga C-Z

3шт.

21

473889R1

PAD, RH bearing assembly

1шт.

22

473890R1

STRAP, rear lift

2шт.

608085R1

WASHER

1-13/32 x 2 x 16 ga C-Z, between rear lift arm and pin

1шт.

23

473891R1

LEVER, rear gear

1шт.

18825R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 2

5/8-11 x 2-3/4 C-Z hex-hd mach

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 C-Z hex. lock

1шт.

24

473277R1

ARM, bellcrank

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

2шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

2шт.

25

661415R1

SWIVEL

1шт.

26

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, straight drive type lub, in swivel

1шт.

27

473285R2

SCREW ASSY, lift

1шт.

22913R1

PIN, 5/32 x 1-1/4 C-Z cot.

1шт.

28

473288R1

SUPPORT, lift crank

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2-13 x 1 C-Z hex-hd mach

2шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

2шт.

29

473287R91

BEARING, lift thrust, Serial Range: 1963-1965

1шт.

30

21715R1

WASHER

29/32 x 1-3/4 x 11 ga

3шт.

31

H1252M

SPRING

compression

1шт.

32

473286R1

ABSORBER, shock

1шт.

33

M23538

WASHER

cup

1шт.

34

473892R1

SCREW, leveling

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

35

F122

SPRING, compression

1шт.

36

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

3шт.

37

473893R1

BAR, leveling pivot

1шт.

38

473883R1

PAD

2шт.

39

473894R1

SPACER, rear lift arms

1шт.

40

473895R1

SPACER, basket hanger

2шт.

41

473369R1

BRACKET, hanger & stabilizer

2шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2-13 x 2-3/4 C-Z hex-hd mach

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

2шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

4шт.

42

473223R1

COLLAR, front lift shaft

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

43

473896R1

SECTOR, front gear

1шт.

18825R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 2

5/8-11 x 2-3/4 C-Z hex-hd mach

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 C-Z hex. lock

1шт.

608085R1

WASHER

1-13/32 x 2 x 16 ga C-Z

2шт.

20341R1

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

44

473282R1

SCREW, tilt

1шт.

656049R1

WASHER

29/32 x 1-1/2 x 7 ga

1шт.

21714R1

WASHER

29/32 x 1-1/2 x 11 ga C-Z

1шт.

22921R1

PIN, 3/16 x 1-3/8 znd slt spring

1шт.

22917R1

PIN, 3/16 x 7/8 znd slt spring

1шт.

45

473283R2

HANDLE, tilt screw

1шт.

473443R1

COTTER PIN

quick attachable cot.

1шт.

46

480764R1

YOKE, eyebolt

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

611344R1

WASHER

11/32 x 7/8 x 16 ga C-Z

4шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 C-Z hex. lock

4шт.

47

481400R1

VALVE SPRING

SPRING, basket float

2шт.

48

462289R1

EYEBOLT

2шт.

120376

NUT,5/16"-18, G5

4шт.

49

481401R1

BRACKET, float spring

2шт.
