Запчасти Case IH 16 (A-16) - STRIPPER FRAME, STRIPPERS AND BRACE

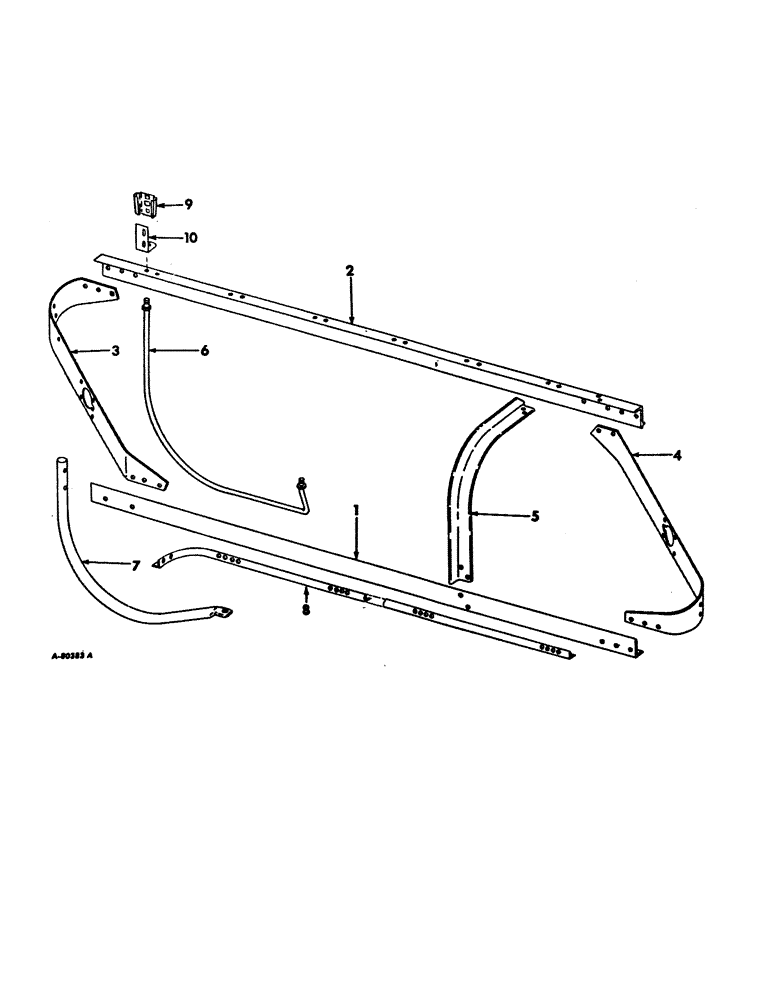

Схема запчастей Case IH 16 - (A-16) - STRIPPER FRAME, STRIPPERS AND BRACE

Артикул

Название

Примечание

Количество

1

473506R2

ANGLE, rear frame, 14 rake

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

4шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 znd hex-hd cap

2шт.

473361R1

NUT, 1/2-13 hex. flange lock

6шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

6шт.

1

473507R1

ANGLE, rear frame, 16 rake, Serial Range: 1963-1965

1шт.

1

483146R1

ANGLE, rear frame, 16 rake, 1965 & since

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

5шт.

473361R1

NUT, 1/2-13 hex. flange lock

5шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

5шт.

2

473504R2

ANGLE, front frame, 14 rake

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

4шт.

477913R1

BOLT, 1/2-13 x 1-1/2 long neck crg

1шт.

473361R1

NUT, 1/2-13 hex. flange lock

5шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

4шт.

2

473505R1

ANGLE, front frame, 16 rake, Serial Range: 1963-1965

1шт.

2

483145R1

ANGLE, front frame, 16 rake, 1965 & since

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

9шт.

477913R1

BOLT, 1/2 x 1-1/2 long neck crg

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

9шт.

473361R1

NUT, 1/2-13 hex. flange lock

10шт.

3

473367R1

FRAME, left end

1шт.

4

473368R2

FRAME

right end

1шт.

5

473370R1

ANGLE, basket stiffener

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Hex, 3/8"-16 x 1", G5

4шт.

473371R1

FLANGE NUT

NUT, 3/8-16 C-Z hex. flange lock

4шт.

6

473373R1

STRIPPER

14 rake

5шт.

667927R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-16 hex. 2-way lock

10шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

10шт.

6

473373R1

STRIPPER

16 rake

6шт.

667927R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-16 hex. 2-way lock

12шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

12шт.

7

473374R1

ROD

STRIPPER, end, left

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 C-Z hex-hd mach

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z hex-hd mach

1шт.

473361R1

NUT, 1/2-13 hex. flange lock

3шт.

8

473901R1

ANGLE, stripper brace, 14 rake

1шт.

8

473902R2

ANGLE, stripper brace, 16 rake, Serial Range: 1963-1965

1шт.

8

483147R1

ANGLE

stripper brace, 16 rake, 1965 & since

1шт.

23272K

BOLT,3/8" - 16 x 1 3/8"

U-BOLT, 5 used on 14 rakes, 6 used on 16 rakes

1шт.

473371R1

FLANGE NUT

NUT, 3/8-16 C-Z flange lock, 10 used on 14 rakes, 12 used on 16 rakes

1шт.

645151R1

BOLT,3/8" - 24

U-BOLT

1шт.

666639R1

LOCK NUT,3/8"-24, GB

NUT, 3/8-24 hex. lock

2шт.

9

398976R1

BRACKET

SOCKET, light bracket

1шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 C-Z hex-hd mach, for 14 rake

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z, for 14 rake

2шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 C-Z hex. 2-way lock, for 14 rake

2шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd mach, for 16 rake

1шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z, for 16 rake

1шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. 2-way lock, for 16 rake

1шт.

10

460821R1

CLIP

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

1шт.

473361R1

NUT, 1/2-13 hex. flange lock

1шт.

480093R1

TOOL

stripper straightening

1шт.

473913R91

PACKAGE, stripper brace, 16 rake, 1963 to 1965, consists of

1шт.

473902R2

BRACE

1шт.

473371R1

FLANGE NUT

NUT

12шт.

666639R1

LOCK NUT,3/8"-24, GB

NUT

2шт.

23272K

BOLT,3/8" - 16 x 1 3/8"

U-BOLT

6шт.

645151R1

BOLT,3/8" - 24

U-BOLT

1шт.

Выбрано товаров: 60
