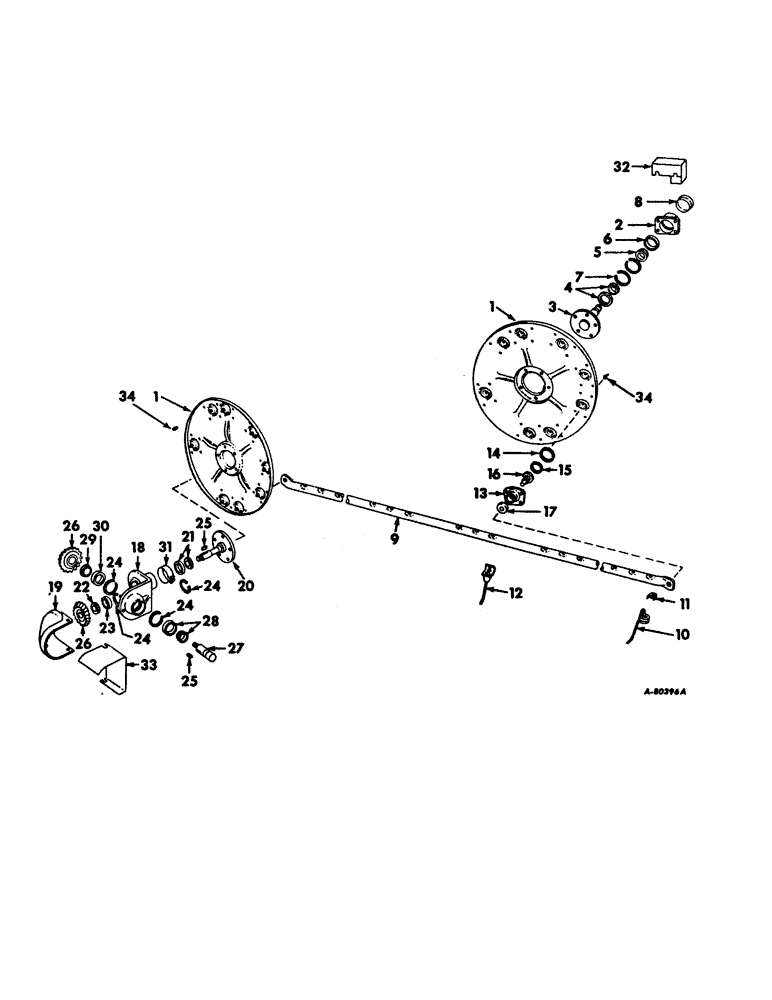

Запчасти Case IH 16 (A-14) - SPIDER, TOOTH BAR & GEAR BOX, 16 RAKE

1

473358R2

DISC

spider

2шт.

2

473363R1

HOUSING

HUB, spider wheel bearing, RH

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2-13 x 1-3/4 C-Z hex-hd mach

4шт.

473361R1

NUT, 1/2-13 hex. flange lock

4шт.

3

473364R91

SHAFT

ASSY, basket, RH

1шт.

446257

WASHER,3/4" x 1 3/4" x .148"

13/16 x 1-3/4 x .148 C-Z

1шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 C-Z slt hex.

1шт.

137228

COTTER PIN,5/32" x 1 1/2"

PIN, SPLIT (COTTER), 5/32" x 1 1/2"

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd mach

5шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. 2-way lock

5шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

5шт.

4

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL, RH hub

1шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, RH hub roller bearing

1шт.

6

651817R1

BEARING CUP

CUP, RH hub roller bearing

1шт.

6

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

7

457381R1

RING

bearing retaining snap

2шт.

8

663906R1

CAP

spider wheel hub

1шт.

9

473394R91

PIPE ASSY, tooth, Serial Range: 1963-1965

5шт.

9

483148R91

PIPE ASSY, tooth, 1965 & since

5шт.

10

462978R1

SPRING

TOOTH, coil spring, see note A

1шт.

20231R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/8", Gr 2

BOLT, 3/8-16 x 2-1/8 C-Z sq-nk crg, 1 per tooth

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z hex. flange lock, 1 per tooth

1шт.

11

473520R2

CLIP

coil spring tooth, see note A

1шт.

12

473378R91

TOOTH

ASSY, rubber mounting, see note A

1шт.

20231R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/8", Gr 2

BOLT, 3/8-16 x 2-1/8 C-Z sq-nk crg, 1 per tooth

1шт.

473371R1

FLANGE NUT

NUT, 3/8-16 C-Z hex. flange lock, 1 per tooth

1шт.

13

473381R1

HOUSING

tooth pipe bearing, order housing assy, 545574R91

10шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

40шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 C-Z hex. two-way lock

40шт.

14

473382R1

GASKET

housing

10шт.

15

473383R1

RING

tooth pipe bearing

10шт.

16

ST437

BALL BEARING,1.27" ID x 1.8504" OD x 0.5512"

BEARING, tooth pipe ball

10шт.

473873R1

LOCK NUT,3/4"-16, GB

NUT, 3/4-16 C-Z hex. two-way lock

10шт.

477243R1

WASHER,25/32" x 2" x .060"

21/32 x 2 x 16 ga C-Z

10шт.

17

473385R1

CAP WASHER

SEAL, housing, for steel housing, 473381R1

10шт.

18

473386R1

HOUSING, gear and bearing

1шт.

17497R1

BOLT, 1/2 x 1-3/4 C-Z hex-hd mach

4шт.

473361R1

NUT, 1/2-13 hex. flange lock

4шт.

19

473387R1

COVER, gear box

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

1шт.

20141R1

BOLT,Hex, 3/8" - 16 x 7 1/2", Gr 2

3/8 x 7-1/2 C-Z hex-hd mach

1шт.

473371R1

FLANGE NUT

NUT, 3/8-16 C-Z flange lock

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20

473389R91

SHAFT ASSY, gear, Serial Range: box-wheel

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd mach

5шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

5шт.

446257

WASHER,3/4" x 1 3/4" x .148"

13/16 x 1-3/4 x .148 C-Z

1шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. lock

5шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 C-Z hex. jam

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

21

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL, gear box shaft roller

1шт.

22

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, gear box shaft roller

1шт.

23

651817R1

BEARING CUP

BEARING, gear box shaft roller cup

1шт.

24

457381R1

RING

bearing retaining snap

4шт.

25

Q42

KEY,5/16" Sq x 1 3/8", Par

5/16 x 1-3/8 sq parallel

2шт.

26

473391R1

GEAR

wheel shaft

2шт.

27

473392R1

SHAFT, jack

1шт.

446257

WASHER,3/4" x 1 3/4" x .148"

13/16 x 1-3/4 x .148 C-Z

1шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 C-Z slt hex. jam

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

28

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL, jackshaft roller

1шт.

29

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, jackshaft roller cone

1шт.

30

651817R1

BEARING CUP

BEARING, jackshaft roller cup

1шт.

31

473393R1

SHIELD

shaft

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

1шт.

21549R1

WASHER

9/32 x 3/4 x 18 ga C-Z

1шт.

9413946

LOCK NUT,1/4"-20, GA

NUT, 1/4-20 cdp hex. lock

1шт.

32

473297R1

SHIELD

RH jackshaft

1шт.

33

473301R1

SHIELD, gear box knuckle

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8-16 x 3/4 C-Z hex-hd mach

1шт.

473371R1

FLANGE NUT

NUT, 3/8-16 C-Z hex. flange lock

1шт.

34

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 special tapper drive thd self-tap. lub

10шт.

545574R91

HOUSING

ASSY, replaces 473381R1, composed of

10шт.

545568R1

RETAINER

HOUSING

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Hex, 3/8"-16 x 1", G5

4шт.

545569R1

SEAL

1шт.

469668R1

WASHER

4шт.

477243R1

WASHER,25/32" x 2" x .060"

1шт.
