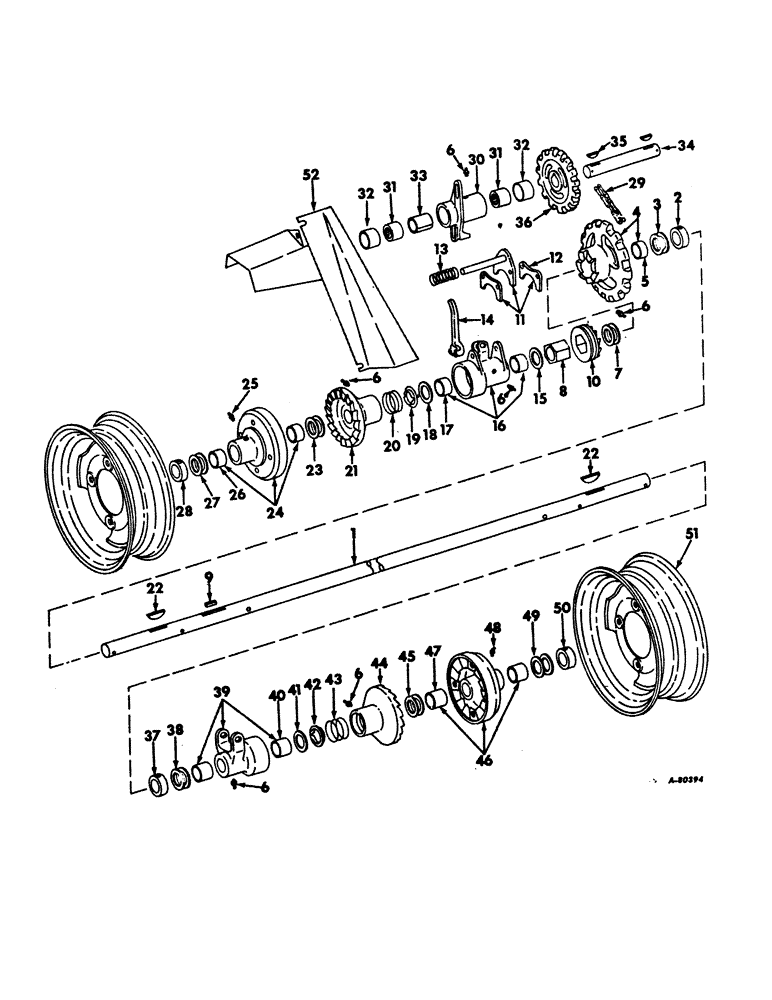

Запчасти Case IH 16 (A-10) - AXLE AND WHEELS, 16 RAKE

1

473222R1

AXLE, wheel

1шт.

2

473223R1

COLLAR, axle, LH inner

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

3

473224R1

WASHER

1-13/32 x 2 x 16 ga, between collar & sprocket (or as required)

5шт.

4

473264R11

SPROCKET W/BUSHING, driver

1шт.

5

473226R1

BUSHING

drive sprocket

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 special taper drive thd self-tapping lub

6шт.

7

473224R1

WASHER

1-13/32 x 2 x 16 ga, between sleeve & sprocket

2шт.

8

473227R1

HUB

SLEEVE, hex.

1шт.

9

619720R1

KEY,5/16" Sq x 1 1/8", Par

5/16 x 1-1/8 sq parallel, replaces 581306R1

1шт.

10

473263R1

CLUTCH

sprocket drive

1шт.

11

473229R11

FORK

ASSY, shifter

1шт.

12

473231R1

PAD

FACE, declutching fork

2шт.

473232R1

RIVET

ov-hd tubular

2шт.

13

473233R1

SPRING, clutch

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 C-Z (or as required)

1шт.

14

473234R1

ARM, clutch release, used w/rakes not equipped w/remote control

1шт.

21831R1

LOCK PIN,1/4" x 1 1/8", Slotted

Pin, 1/4" x 1 1/8", Slotted

1шт.

15

473224R1

WASHER

1-13/32 x 2 x 16 ga, between sleeve & axle support

2шт.

16

473236R11

SUPPORT W/BUSHINGS, axle left

1шт.

17

457802R1

BUSHING,34.95mm ID x 38.13mm OD x 31.75mm L

axle left support

2шт.

18

473224R1

WASHER

1-13/32 x 2 x 16 ga, between support & flange washer

2шт.

19

473237R1

WASHER

flange

1шт.

22101R1

PIN, 1/4 x 1-5/8 C-Z slt spring

1шт.

22927R1

PIN, 5/32 x 1-5/8 C-Z slt spring

1шт.

20

473238R1

SPRING

wheel clutch

1шт.

21

473262R1

CLUTCH, drive, LH

1шт.

22

473260R1

KEY

hypro

2шт.

23

473224R1

WASHER

1-13/32 x 2 x 16 ga, between clutch & hub

2шт.

24

473261R11

HUB

W/BUSHINGS, wheel, LH

1шт.

25

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 45 deg lub, wheel hub LH

1шт.

26

457802R1

BUSHING,34.95mm ID x 38.13mm OD x 31.75mm L

wheel hub

2шт.

27

473224R1

WASHER

1-13/32 x 2 x 16 ga, between hub & collar (or as required)

5шт.

28

473223R1

COLLAR, axle, LH outer

1шт.

21951R1

PIN,5/16" x 2 1/4"

5/16 x 2-1/4 C-Z std-hd

1шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

1шт.

29

CHAIN, drive, use 35 links of 1-1/2 extended pitch agricultural transmission roller chain from 10-ft roll marked, 569090R91, one connecting link, 567007R91 and three offset links, 567009R91

1шт.

567007R91

DRAG LINK

LINK, #2060 double pitch connecting

1шт.

567009R91

CHAIN LINK

LINK, #2060 double pitch offset

1шт.

30

473267R1

BRACKET, jackshaft

1шт.

477906R1

BOLT

1/2-13 x 1-1/4 cd or zn-pltd long-sq-nk crg

2шт.

473197R1

FLANGE NUT

1/2-13 cd or zn-pltd hex. flange lock

2шт.

31

457867R91

BEARING ASSY,28.5mm ID x 41.4mm OD x 31.75mm W

jackshaft roller

2шт.

32

457868R1

RACE

RING, split outer

2шт.

33

80074C1

SPACER

jackshaft ( replaced CA5651/2 )

1шт.

21716R1

WASHER

1-5/32 x 1-3/4 x 16 ga C-Z, 1 each side of spacer

2шт.

34

473268R1

SHAFT, jack

1шт.

21832R1

LOCK PIN,1/4" x 2", Slotted

Pin, 1/4" x 2", Slotted

1шт.

22067R1

PIN

1/4 x 2-1/16 C-Z std-hd

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21748R1

WASHER

1-5/32 x 2-1/4 x 16 ga C-Z (or as required)

8шт.

35

457805R1

KEY

hypro

2шт.

36

473514R1

SPROCKET ASSY.

SPROCKET, driven, 10 T

1шт.

36

473270R1

SPROCKET, driven, 12 T, for changing speed of reel to 93 RPM

1шт.

36

473515R1

SPROCKET, driven, 13 T, for changing speed of reel to 86 RPM

1шт.

36

480206R1

SPROCKET, driven, 9T, for changing speed of reel to 116 RPM

1шт.

36

480207R1

SPROCKET ASSY.

SPROCKET, driven, 8T, for changing speed of reel to 126 RPM

1шт.

37

473223R1

COLLAR, axle, RH inner

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

38

473224R1

WASHER

1-13/32 x 2 x 16 ga, between collar & support (or as required)

4шт.

39

473266R11

SUPPORT W/BUSHINGS, axle, RH

1шт.

40

457802R1

BUSHING,34.95mm ID x 38.13mm OD x 31.75mm L

axle support

2шт.

41

473224R1

WASHER

1-13/32 x 2 x 16 ga, between support & flange washer

2шт.

42

473237R1

WASHER

flange

1шт.

22101R1

PIN, 1/4 x 1-5/8 C-Z slt spring

1шт.

22927R1

PIN, 5/32 x 1-5/8 C-Z slt spring

1шт.

43

473238R1

SPRING

wheel clutch

1шт.

44

473239R1

CLUTCH

drive, RH

1шт.

45

473224R1

WASHER

1-13/32 x 2 x 16 ga, between clutch & hub

2шт.

46

473240R11

HUB

W/BUSHINGS, wheel, RH

1шт.

47

457802R1

BUSHING,34.95mm ID x 38.13mm OD x 31.75mm L

wheel hub

2шт.

48

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 45 deg lub, wheel hub, RH

1шт.

49

473224R1

WASHER

1-13/32 x 2 x 16 ga, between hub & collar (or as required)

5шт.

50

473223R1

COLLAR, axle, RH outer

1шт.

21951R1

PIN,5/16" x 2 1/4"

5/16 x 2-1/4 C-Z std-hd

1шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

1шт.

51

463036R1

WHEEL (STEERING)

WHEEL ASSY, 14 x 5 KB rim for 7.00 x 14 or 7.50 x 14 tires

2шт.

51

662994R91

WHEEL

ASSY, 15 x 4 J rim for 5.00 x 15 tires

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel hub

8шт.

52

473298R91

SHIELD ASSY, sprocket & knuckle

1шт.
