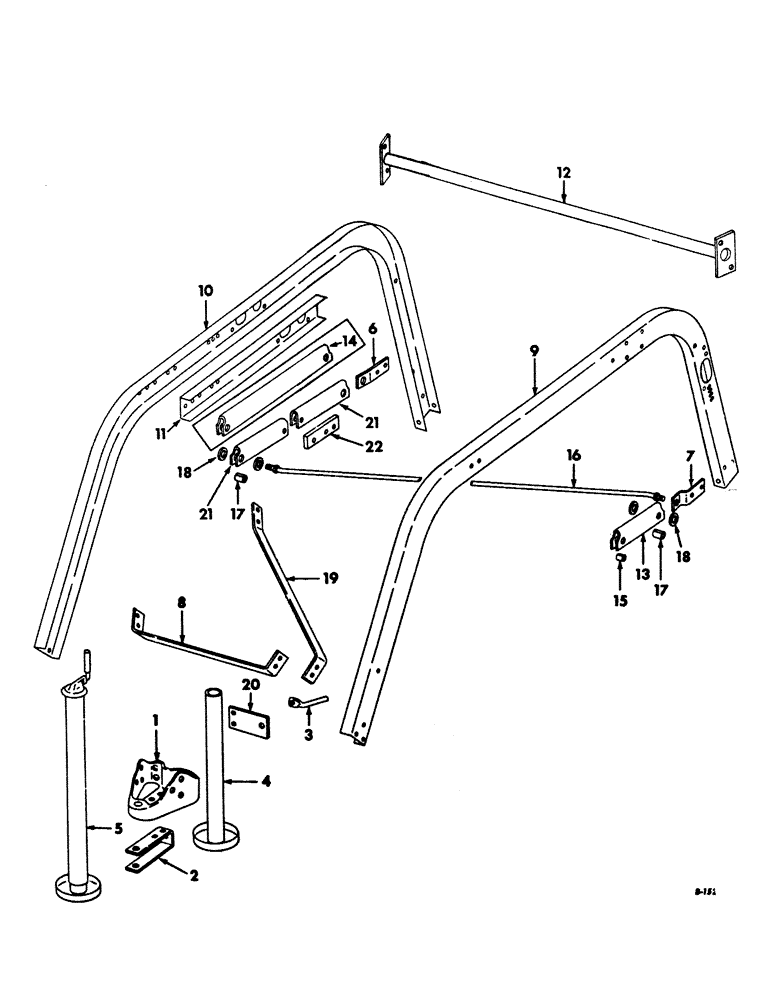

Запчасти Case IH 16 (A-06) - MAIN FRAME AND RELATED PARTS, 16 RAKE

1

473196R1

HITCH, frame coupling

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1 C-Z hex-hd mach

6шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

6шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

6шт.

2

473198R2

PLATE, hitch

1шт.

19285R1

BOLT

1/2-13 x 1-1/4 C-Z sq-nk crg

2шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

2шт.

3

473200R1

CRANK, jack

1шт.

4

473201R91

JACK ASSY, stand, regular

1шт.

5

473202R91

JACK ASSY, special

1шт.

6

473208R1

BRACKET, RH stabilizer

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

2шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

2шт.

7

473867R1

BRACKET, LH stabilizer

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

2шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

2шт.

8

473214R1

BRACE, front

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 C-Z hex-hd mach

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2-13 x 1-3/4 C-Z hex-hd mach

3шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

4шт.

9

473215R1

BEAM, left

1шт.

19460R1

BOLT, 5/8-11 x 4-3/4 C-Z hex-hd mach

2шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 C-Z hex. lock

2шт.

10

473216R1

BEAM, right

1шт.

19460R1

BOLT, 5/8-11 x 4-3/4 C-Z hex-hd mach

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 C-Z hex. lock

1шт.

11

477655R1

CHANNEL, beam reinforcing

1шт.

12

473217R11

BRACE ASSY, rear

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

4шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

4шт.

13

473218R1

STABILIZER, basket LH

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8-11 x 1-3/4 C-Z hex-hd mach

2шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 C-Z

4шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 C-Z hex. lock

1шт.

14

473219R1

STABILIZER, basket RH, Serial Range: 1963-1964

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8-11 x 1-3/4 C-Z hex-hd mach

2шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 C-Z

4шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 C-Z hex. lock

1шт.

15

473210R1

SPACER, split

2шт.

16

473220R1

BRACE, rear diagonal

1шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

4шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 C-Z hex. lock

2шт.

17

473868R1

SPACER, diagonal brace

2шт.

18

473286R1

ABSORBER, shock

4шт.

19

473872R1

BRACE, front diagonal

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 C-Z hex-hd mach

2шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

2шт.

20

474752R1

PLATE, jack clamp

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

2шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

4шт.

18573R1

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2

BOLT, 5/8-11 x 1-1/2 C-Z sq-nk crg

1шт.

21

480210R1

STABILIZER, basket RH, 1965 up

2шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8-11 x 1-3/4 C-Z hex-hd mach

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 C-Z hex. lock

1шт.

22

480208R1

BAR, stabilizer extension, 1965 up

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap

2шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

667927R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. lock

2шт.
