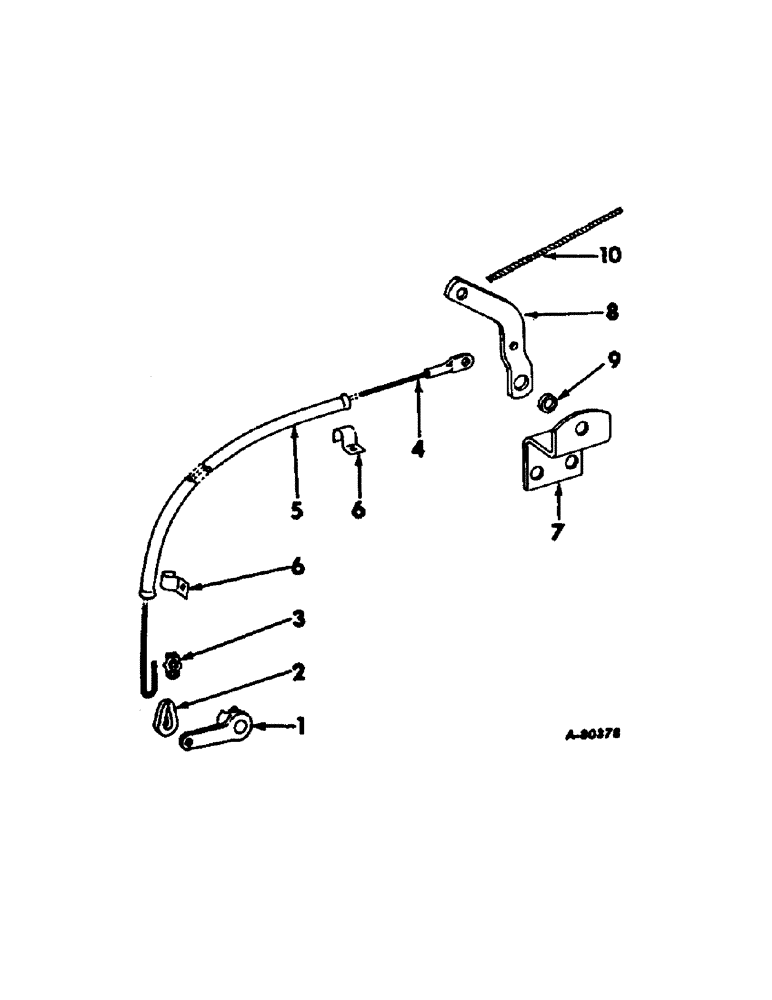

Запчасти Case IH 16 (A-22[A]) - REMOTE CONTROL CLUTCH ATTACHMENT

1

473351R1

ARM, clutch release, 14 rake

1шт.

1

473352R1

ARM, clutch release, 16 rake

1шт.

2

457796R1

EYE

THIMBLE, clutch wire rope

1шт.

3

480472R1

CLIP

1/8 in. wire rope, replaces 457797R1

1шт.

4

457798R91

CABLE

W/EYE, throwout clutch

1шт.

21987R1

PIN, 1/4 x 1-1/8 C-Z std-hd

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

97865H

WASHER

9/32 x 7/8 x 16 ga

1шт.

5

473353R1

CONDUIT, 14 rake

1шт.

5

473354R1

CONDUIT, 16 rake

1шт.

6

473355R1

CLAMP, conduit pipe

2шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4-20 x 3/4 C-Z hex-hd mach

2шт.

9413946

LOCK NUT,1/4"-20, GA

NUT, 1/4-20 cdp hex. lock

2шт.

97865H

WASHER

9/32 x 7/8 x 16 ga

2шт.

7

473357R1

STRIP, clutch handle

1шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2-13 x 2 C-Z hex-hd mach

1шт.

8

457794R1

SUPPORT

LEVER, clutch throwout

1шт.

9

518083R1

WASHER

SPACER, pipe

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

1шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. lock

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

22906R1

HEADED PIN,1/4" x 3/4"

PIN, HEADED, 1/4" x 3/4"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

10

ROPE, clutch throwout, 3/8 x 12 feet, purchase locally

1шт.
