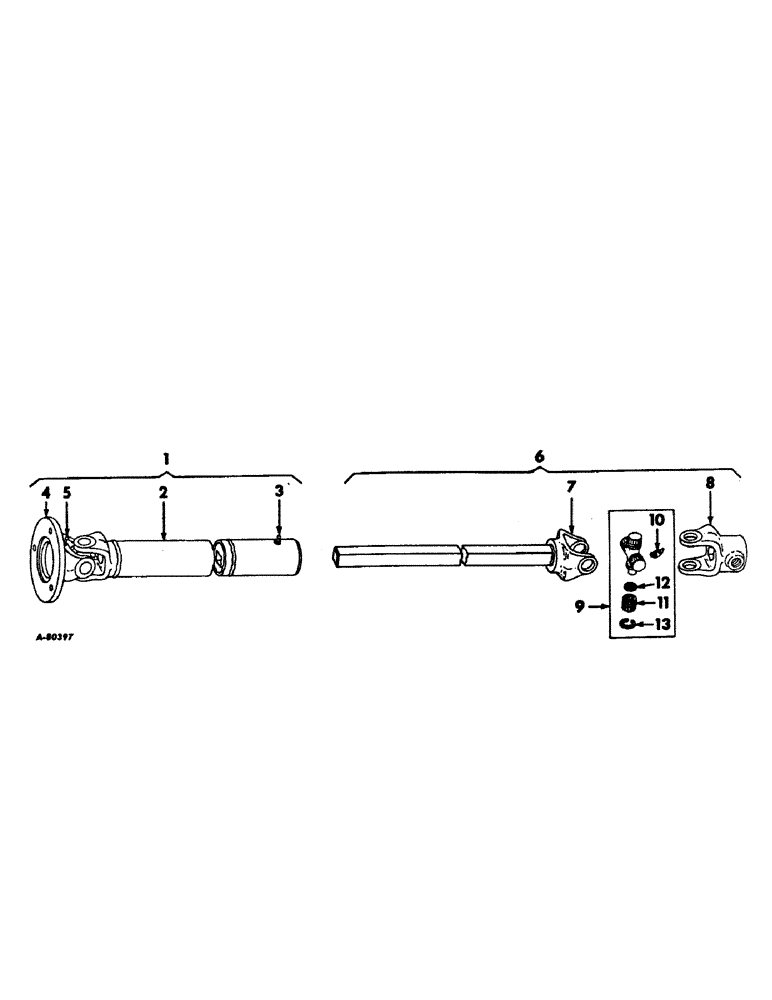

Запчасти Case IH 14 (A-18) - UNIVERSAL JOINTS, 14 RAKE

1

473905R91

SHAFT ASSY, drive joint & tube half-driver end, composed of ref nos. 2, 3, 4 and 9 through 13

1шт.

2

473906R91

YOKE W/TUBE

1шт.

3

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4-28 NF, 2 straight lub

1шт.

4

473907R91

YOKE ASSY, flange

1шт.

5

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 straight drive type lub

1шт.

6

473661R91

SHAFT ASSY, drive joint & shaft, driven end, composed of ref nos. 7 through 13

1шт.

7

473663R91

YOKE W/SHAFT

1шт.

8

473664R91

YOKE W/SET SCREW & NUT

1шт.

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, 1/2-20 x 1-3/16 sq-hd cone pt set

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex. jam

1шт.

9

659262R91

U-JOINT SPIDER

KIT, center cross service

2шт.

10

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 65 deg angle lubrication

2шт.

11

661655R91

BEARING ASSY,0.59375" ID x 1.0625" OD x 0.4375"

ASSY, needle

8шт.

12

661656R1

SEAL, cork oil

8шт.

13

661657R1

RING

snap

8шт.
