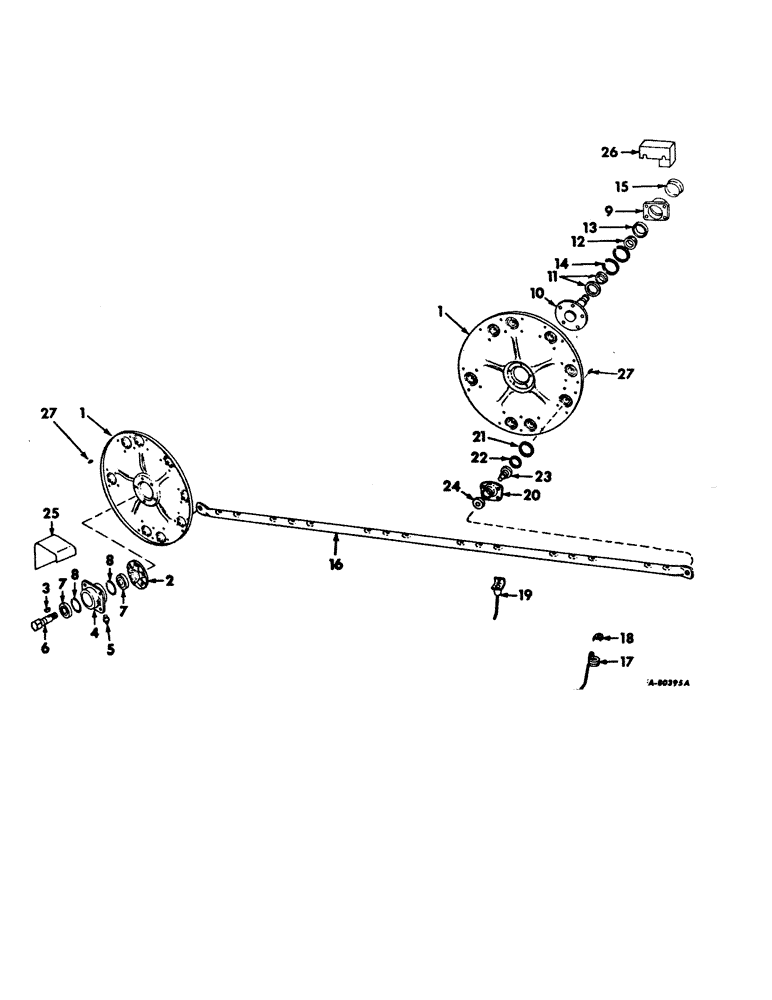

Запчасти Case IH 14 (A-12) - SPIDER, TOOTH BAR & JACK SHAFT, 14 RAKE

1

473358R2

DISC

spider

2шт.

2

473359R1

HUB

spider wheel

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16-14 x 1-1/4 C-Z hex-hd mach

5шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

5шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. lock

5шт.

3

117979

KEY

5/16 x 1-1/8 Woodruff C

1шт.

4

473360R1

HOUSING

HUB, spider wheel bearing, LH

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 C-Z hex-hd mach

4шт.

473361R1

NUT, 1/2-13 hex. flange lock

4шт.

5

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 special taper drive thd self-tapping lub, spider wheel bearing hub

1шт.

6

473362R1

SHAFT

jack

1шт.

446257

WASHER,3/4" x 1 3/4" x .148"

13/16 x 1-3/4 x .148 C-Z

1шт.

69442D

NUT

3/4-16 slt hex. jam

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

7

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL, jackshaft roller

2шт.

8

457381R1

RING

bearing retaining snap

2шт.

9

473363R1

HOUSING

HUB, spider wheel bearing, RH

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 C-Z hex-hd mach

4шт.

473361R1

NUT, 1/2-13 hex. flange lock

4шт.

10

473364R92

NOZZLE HOLDER

SHAFT ASSY, basket RH

1шт.

446257

WASHER,3/4" x 1 3/4" x .148"

13/16 x 1-3/4 x .148 C-Z

1шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 C-Z slt hex.

1шт.

137228

COTTER PIN,5/32" x 1 1/2"

PIN, SPLIT (COTTER), 5/32" x 1 1/2"

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd mach

5шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. 2-way lock

5шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

5шт.

11

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL, RH hub

1шт.

12

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, RH hub roller cone

1шт.

13

651817R1

BEARING CUP

BEARING, RH hub roller cup

1шт.

13

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

14

457381R1

RING

bearing retaining snap

2шт.

15

663906R1

CAP

spider wheel hub

1шт.

16

544151R91

PIPE W/INSTALLING INSTRUCTIONS, tooth, 5 w/fifth tooth pipe att

4шт.

17

462978R1

SPRING

TOOTH, coil spring, 80 w/fifth tooth pipe att

64шт.

20231R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/8", Gr 2

BOLT, 3/8-16 x 2-1/8 C-Z sq-nk crg, 1 per tooth

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z hex. flange lock, 1 per tooth

1шт.

18

473520R2

CLIP

coil spring tooth, 80 w/fifth tooth pipe att

64шт.

19

473378R91

TOOTH

ASSY, rubber mounted, 80 w/fifth tooth pipe att

64шт.

20231R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/8", Gr 2

BOLT, 3/8-16 x 2-1/8 C-Z sq-nk crg, 1 per tooth

1шт.

473371R1

FLANGE NUT

NUT, 3/8-16 C-Z hex. flange lock, 1 per tooth

1шт.

20

473381R1

HOUSING

tooth pipe bearing, 10 used w/fifth tooth pipe att, order housing assy, 545574R91

8шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex. lock, 4 per housing

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap, 4 per housing

1шт.

20

545568R1

RETAINER

HOUSING, tooth pipe bearing, 10 used w/fifth tooth pipe att

8шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. flange lock, 4 per housing

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Hex, 3/8"-16 x 1", G5, 4 per housing

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z, 4 per housing

1шт.

21

473382R1

GASKET

housing, 10 used w/fifth tooth pipe att, used only w/housing, 473381R1

8шт.

22

473383R1

RING

tooth pipe bearing, 10 used w/fifth tooth pipe att

8шт.

23

ST437

BALL BEARING,1.27" ID x 1.8504" OD x 0.5512"

BEARING, tooth pipe ball, 10 used w/fifth tooth pipe att

8шт.

477243R1

WASHER,25/32" x 2" x .060"

21/32 x 2 x 16 ga C-Z, 1 per bearing

1шт.

473873R1

LOCK NUT,3/4"-16, GB

NUT, 3/4-16 C-Z hex. two-way lock, 1 per bearing

1шт.

24

473385R1

CAP WASHER

SEAL, housing, 10 used w/fifth tooth pipe att, for steel housing, 473381R1

1шт.

24

545569R1

SEAL

housing, 10 used w/fifth tooth pipe att, for aluminum housing

1шт.

25

473296R11

SHIELD W/PRODUCT GRAPHIC, knuckle drive

1шт.

26

473297R1

SHIELD

RH jackshaft

1шт.

27

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 special taper drive thd self-tap, lub, 10 used w/fifth tooth pipe att

8шт.

545574R91

HOUSING

ASSY, 10 w/fifth tooth pipe attachment, replaces 473381R1, composed of

1шт.

545568R1

RETAINER

HOUSING

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Hex, 3/8"-16 x 1", G5

4шт.

547569R1

SEAL

1шт.

469668R1

WASHER

4шт.

447243R1

WASHER

1шт.
