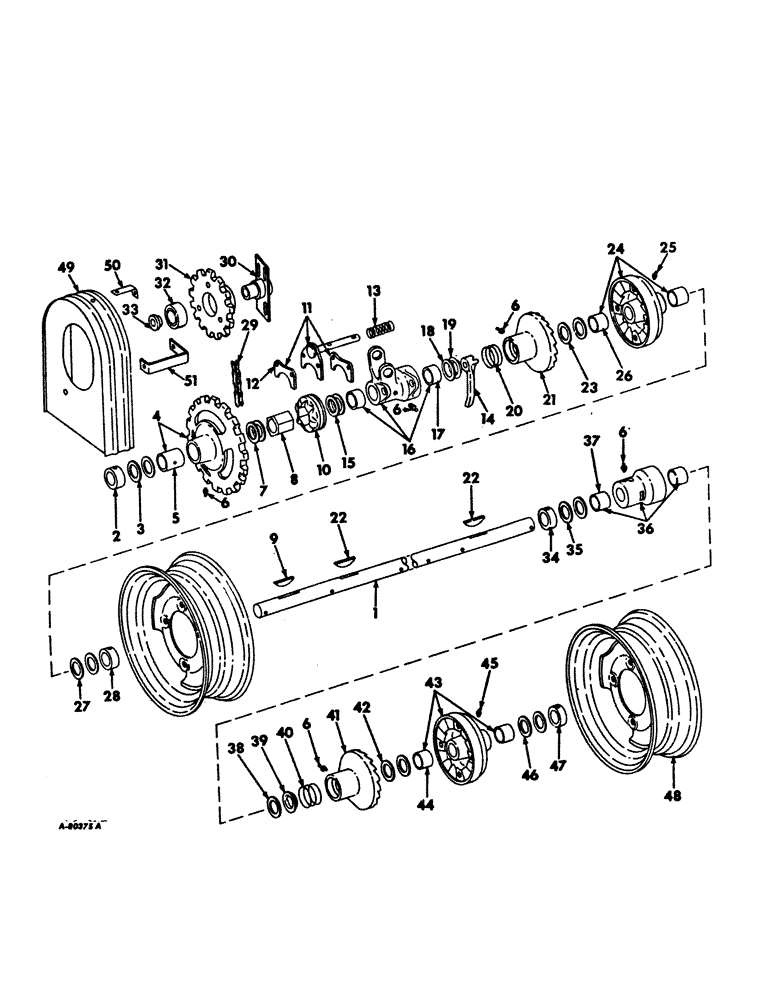

Запчасти Case IH 14 (A-08) - AXLE AND WHEELS, 14 RAKE

1

473221R1

AXLE, wheel

1шт.

2

473223R1

COLLAR, axle, LH outer

1шт.

21951R1

PIN,5/16" x 2 1/4"

5/16 x 2-1/4 C-Z std-hd

1шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

1шт.

3

473224R1

WASHER

1-13/32 x 2 x 16 ga, between collar and sprocket (or as required)

10шт.

4

473225R11

SPROCKET ASSY.

SPROCKET W/BUSHING, driver

1шт.

5

473226R1

BUSHING

driver sprocket

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 special taper drive thd self-tapping lub

5шт.

7

473224R1

WASHER

1-13/32 x 2 x 16 ga, between sleeve & sprocket

2шт.

8

473227R1

HUB

SLEEVE, hex.

1шт.

9

619720R1

KEY,5/16" Sq x 1 1/8", Par

5/16 x 1-1/8 sq parallel, replaces 581306R1

1шт.

10

473228R1

CLUTCH

sprocket drive

1шт.

11

473229R11

FORK

ASSY, shifter

1шт.

12

473231R1

PAD

FACE, declutching fork

2шт.

473232R1

RIVET

ov-hd tubular

2шт.

13

473233R1

SPRING, clutch

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

14

473234R1

ARM, clutch release, used w/rakes not equipped w/remote control

1шт.

21831R1

LOCK PIN,1/4" x 1 1/8", Slotted

Pin, 1/4" x 1 1/8", Slotted

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z (or as required)

1шт.

15

473224R1

WASHER

1-13/32 x 2 x 16 ga, between sleeve & axle support

2шт.

16

473235R11

SUPPORT W/BUSHINGS, axle left

1шт.

17

457802R1

BUSHING,34.95mm ID x 38.13mm OD x 31.75mm L

axle left support

2шт.

18

473224R1

WASHER

1-13/32 x 2 x 16 ga, between support & flange washer

1шт.

19

473237R1

WASHER

flange

1шт.

22101R1

PIN, 1/4 x 1-5/8 C-Z slt spring

1шт.

22927R1

PIN, 5/32 x 1-5/8 znp slt spring

1шт.

20

473238R1

SPRING

wheel clutch

1шт.

21

473239R1

CLUTCH

drive, LH

1шт.

22

473260R1

KEY

hypro

2шт.

23

473224R1

WASHER

1-13/32 x 2 x 16 ga, between clutch & hub

2шт.

24

473240R11

HUB

W/BUSHINGS, wheel

1шт.

25

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 45 deg lub, wheel hub LH

1шт.

26

457802R1

BUSHING,34.95mm ID x 38.13mm OD x 31.75mm L

wheel hub

2шт.

27

473224R1

WASHER

1-13/32 x 2 x 16 ga, between hub and collar (or as required)

11шт.

28

473223R1

COLLAR, axle, LH inner

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

29

CHAIN, drive, use 31 links of 1-1/2 extended pitch agricultural transmission roller chain from 10-ft roll marked, 569090R91, one connecting link, 567007R91 and one offset link, 567009R91

1шт.

567007R91

DRAG LINK

LINK, #2060 double pitch connecting

1шт.

567009R91

CHAIN LINK

LINK, #2060 double pitch offset

1шт.

30

473897R11

BAR ASSY, bearing journal

1шт.

477906R1

BOLT

1/2-13 x 1-1/4 C-Z long-sq-nk crg

3шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

3шт.

31

473899R1

SPROCKET, driven, 13T

1шт.

31

473904R1

SPROCKET, driven, 15T, for changing speed of reel to 102.4 RPM w/15 in. wheels

1шт.

31

473903R1

SPROCKET, driven, 18T, for changing speed of reel to 85.5 RPM w/15 in. wheels

1шт.

31

480205R1

SPROCKET, driven, 12T, for changing speed of reel to 120 RPM w/14 in. wheels

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8-16 x 1-1/4 C-Z hex-hd mach

3шт.

473371R1

FLANGE NUT

NUT, 3/8-16 C-Z hex. flange lock

3шт.

32

473243R91

BEARING, jackshaft double row ball

1шт.

33

473900R1

RETAINER, bearing

1шт.

430645

BOLT, 3/8-24 x 7/8 C-Z hex. socket head

1шт.

21748R1

WASHER

1-5/32 x 2-1/4 x 16 ga C-Z

8шт.

34

473223R1

COLLAR, axle, RH inner

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

35

473224R1

WASHER

1-13/32 x 2 x 16 ga, between collar and support (or as required)

4шт.

36

473248R11

SUPPORT W/BUSHINGS, axle, RH

1шт.

37

457802R1

BUSHING,34.95mm ID x 38.13mm OD x 31.75mm L

axle support

2шт.

38

473224R1

WASHER

1-13/32 x 2 x 16 ga, between support & flange washer

1шт.

39

473237R1

WASHER

flange

1шт.

22101R1

PIN, 1/4 x 1-5/8 C-Z slt spring

1шт.

22927R1

PIN, 5/32 x 1-5/8 znp slt spring

1шт.

40

473238R1

SPRING

wheel clutch

1шт.

41

473239R1

CLUTCH

drive, RH

1шт.

42

473224R1

WASHER

1-13/32 x 2 x 16 ga, between clutch & hub

2шт.

43

473240R11

HUB

W/BUSHINGS, wheel, RH

1шт.

44

457802R1

BUSHING,34.95mm ID x 38.13mm OD x 31.75mm L

wheel hub

2шт.

45

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 45 deg lub, wheel hub RH

1шт.

46

473224R1

WASHER

1-13/32 x 2 x 16 ga, between hub and collar (or as required)

5шт.

47

473223R1

COLLAR, axle, RH outer

1шт.

21951R1

PIN,5/16" x 2 1/4"

5/16 x 2-1/4 C-Z std-hd

1шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

1шт.

48

463036R1

WHEEL (STEERING)

WHEEL ASSY, 14 x 5 KB rim for 7.00 x 14 or 7.50 x 14 tires

2шт.

48

662994R91

WHEEL

ASSY, 15 x 4 J rim for 5.00 x 15 tires

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel hub

8шт.

49

473292R11

SHIELD ASSY, sprocket drive

1шт.

50

473294R1

BRACKET, sprocket drive shield, upper

1шт.

19428R1

BOLT, 5/16-18 x 5/8 C-Z sq-nk crg

1шт.

611344R1

WASHER

11/32 x 7/8 x 16 ga C-Z

1шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 C-Z hex. lock

1шт.

51

473295R1

BRACKET, sprocket drive shield, lower

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16-18 x 3/4 C-Z sq-nk crg

1шт.

611344R1

WASHER

11/32 x 7/8 x 16 ga C-Z

1шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 C-Z hex. lock

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2-13 x 1 C-Z hex-hd mach

1шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

1шт.
