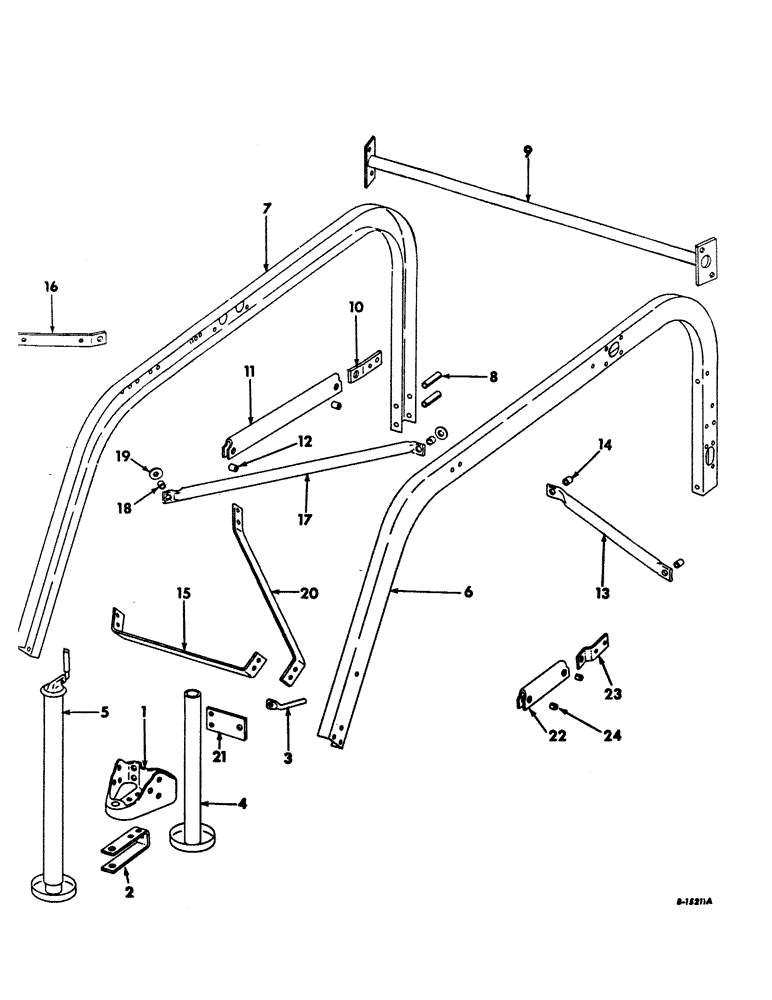

Запчасти Case IH 14 (A-04) - MAIN FRAME AND RELATED PARTS, 14 RAKE

1

473196R1

HITCH, frame coupling

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

6шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

6шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

6шт.

2

473198R2

PLATE, hitch

1шт.

19285R1

BOLT

1/2-13 x 1-1/4 C-Z sq-nk crg

2шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

2шт.

3

473200R1

CRANK, jack

1шт.

4

473201R91

JACK ASSY, stand, regular

1шт.

5

473202R91

JACK ASSY, special

1шт.

6

473203R1

BEAM, left

1шт.

19460R1

BOLT, 5/8-11 x 4-3/4 C-Z hex-hd mach

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 C-Z hex. lock

1шт.

7

473205R1

BEAM, right

1шт.

19278R1

BOLT, 1/2-13 x 4-3/4 C-Z hex-hd mach

2шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

2шт.

8

473204R1

SPACER, split

2шт.

9

473206R11

BRACE ASSY, rear

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

3шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 C-Z hex-hd mach

1шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

4шт.

10

473208R1

BRACKET, RH stabilizer

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

2шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

2шт.

11

473209R1

STABILIZER, basket

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8-11 x 1-3/4 C-Z hex-hd mach

2шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 C-Z hex. lock

2шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

4шт.

12

473210R1

SPACER, split

2шт.

13

473212R1

BRACE, stabilizer LH

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16-14 x 1 C-Z hex-hd mach

1шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16-14 x 1-1/2 C-Z hex-hd mach

1шт.

496-21047

WASHER

15/32 x 59/64 x .065 C-Z

2шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 C-Z hex. lock

2шт.

14

S5375

SPACER,3/8" Pipe x 3/8"

3/8 x 3/8 pipe

2шт.

15

473214R1

BRACE, front

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 C-Z hex-hd mach

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2-13 x 1-3/4 C-Z hex-hd mach

2шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

4шт.

16

473869R1

BRACKET, diagonal brace

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

2шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

2шт.

17

473870R1

PIPE, basket brace

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 C-Z hex-hd mach

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2-13 x 2-3/4 C-Z hex-hd mach

1шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

2шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

1шт.

18

376567R1

BUSHING

2шт.

19

473871R1

WASHER

PAD, basket brace

2шт.

20

473872R1

BRACE, front diagonal

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

1шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

2шт.

21

474752R1

PLATE, jack clamp

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

2шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z, between block & hitch

4шт.

18573R1

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2

BOLT, 5/8-11 x 1-1/2 C-Z sq-nk crg

1шт.

22

480356R1

STABILIZER, basket LH

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8-11 x 1-3/4 C-Z hex-hd mach

2шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

4шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 C-Z hex. lock

2шт.

23

473867R1

BRACKET, LH stabilizer

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 C-Z hex-hd mach

1шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flange lock

2шт.

24

473210R1

SPACER, split

2шт.
