Запчасти Case IH 14 (A-22) - DUAL WHEELS

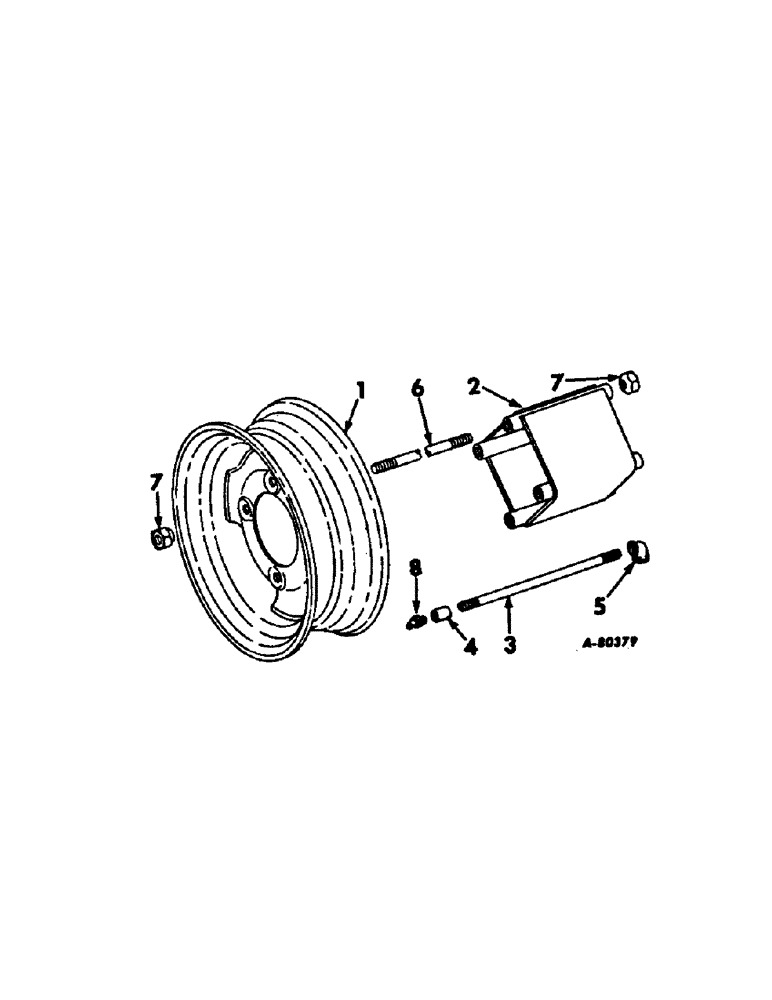

Схема запчастей Case IH 14 - (A-22) - DUAL WHEELS

Артикул

Название

Примечание

Количество

1

473242R91

WHEEL ASSY, 15 x 4J rim for 5.00 x 15 tires

2шт.

1

463036R1

WHEEL (STEERING)

WHEEL ASSY, 14 x 5KB rim for 7.00 x 14 or 7.40 x 14 tires

2шт.

2

457857R11

SPACER ASSY, dual wheel

2шт.

3

187746

NIPPLE, 1/8 x 7-1/2 pipe

2шт.

4

187394

CONNECTOR, ELEC,1/8" NPT, Fem

COUPLING, 1/8 pipe

2шт.

5

19385R1

ADAPTER,90 Degree, 1/8"-27

1/8-27 PTF-90 deg angle elbow

2шт.

6

473241R1

STUD

8шт.

7

453770R1

WHEEL NUT

wheel hub bolt

16шт.

8

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 45 deg lub, not included in attachment

1шт.

102594

SCREW, 3/8-16 x 5/8 hex-soc-hd cup-pt set, for use in collar on LH axle 14 rake

1шт.

Выбрано товаров: 10
