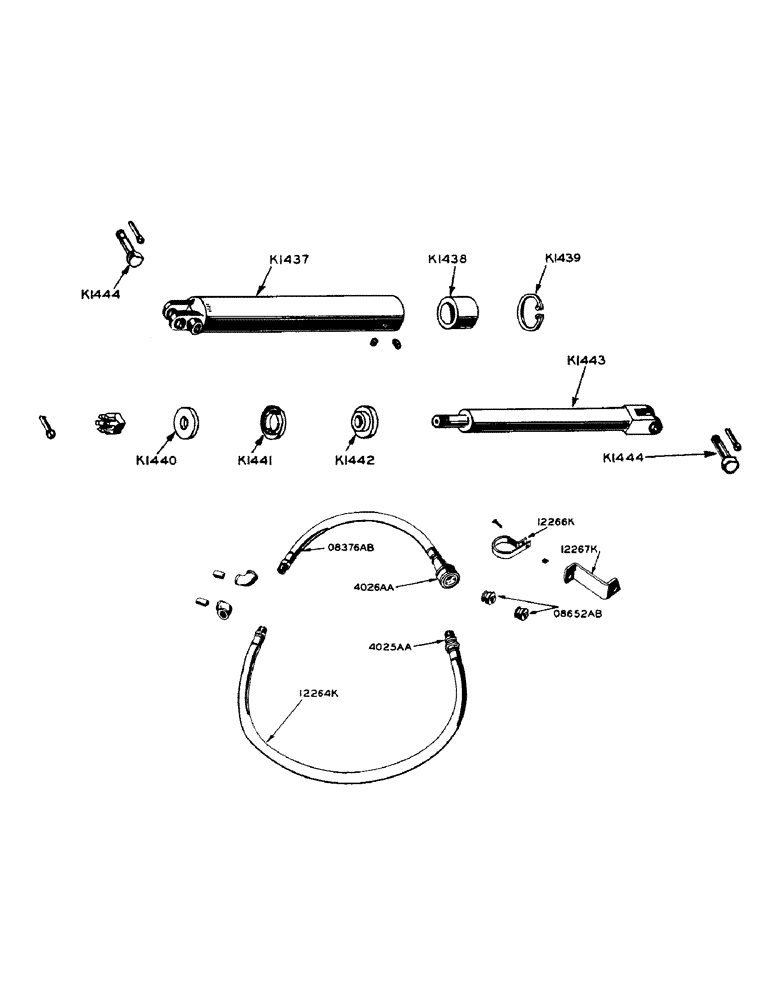

Запчасти Case IH 100 (11) - 2 INCH X 8 INCH HYDRAULIC CYLINDER

K1437

CYLINDER

1шт.

5/16" x 5/16" Allen hex-socket cup point set screw NC

2шт.

K1438

BUSHING - bronze

1шт.

K1439

LOCK RING

1шт.

K1440

WASHER - piston

1шт.

K1441

PACKING - piston

1шт.

K1442

PISTON

1шт.

K1443

SHAFT - cylinder

1шт.

3/4" N.F. hex. castle nut

1шт.

1/8" x 1-1/4" cotter pin

1шт.

K1444

PIN - yoke

2шт.

3/16" x 2" cotter pin

2шт.

413K

2" x 8" single acting hydraulic cylinder (Machinery item)

1шт.

O8376AB

HOSE - female coupling (1/2" inside dia. x 23-1/4" long)

1шт.

O8652AB

X

PLUG - dust, break-away coupling

2шт.

12264K

HOSE - male coupling (1/2" inside dia. x 43"long)

1шт.

1/2" x 3/8" 90 degree elbow

1шт.

3/8" close nipple

1шт.

12266K

CLAMP - female break-away coupling

1шт.

1/4" x 1" carr. bolt w/hex. nut

1шт.

12267K

BRACKET - mounting

1шт.
