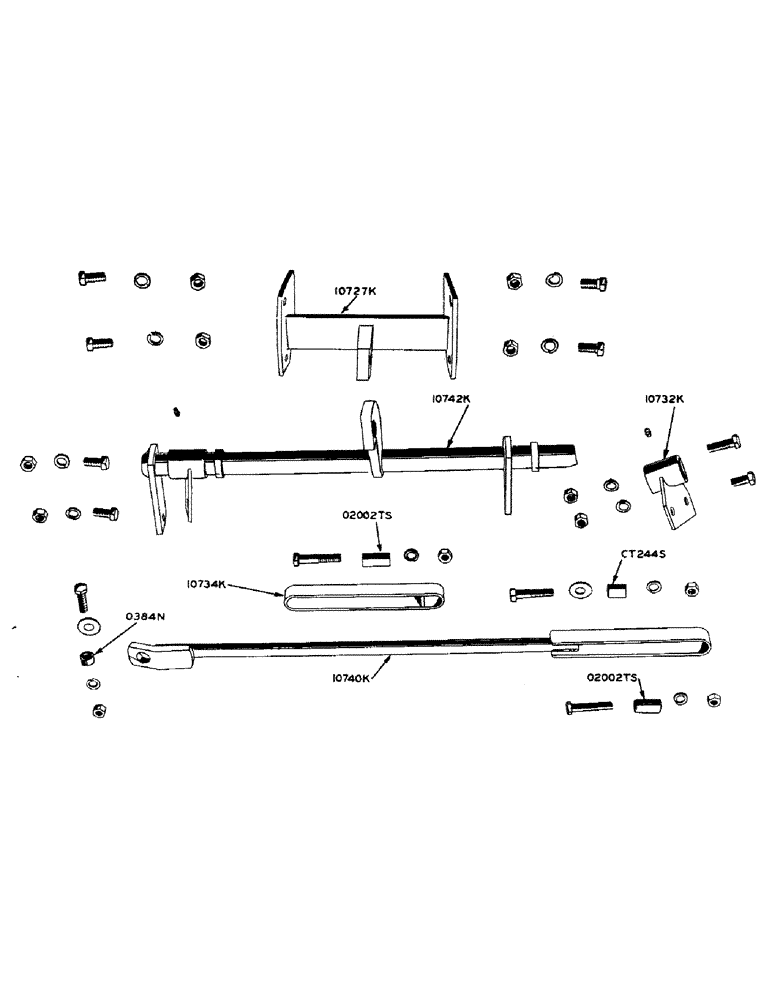

Запчасти Case IH 100 (10) - HYDRAULIC REEL LIFT ATTACHMENT, 1954 & AFTER

CT244S

SPACER - 10742K shaft

1шт.

10727K

MOUNT - hydraulic control

1шт.

1/2" x 1" hex. hd. bolt w/hex. nut and lockwasher

3шт.

1/2" x 1-1/2" hex. hd. bolt w/hex. nut and lockwasher

1шт.

1-3/8" x 9/16" x 12 ga. washer

1шт.

10732K

BEARING - hydraulic control shaft

1шт.

1/2" x 1" hex. hd. bolt w/hex. nut and lockwasher

1шт.

1/2" x 1-1/2" hex. hd. bolt w/hex. nut and lockwasher

1шт.

1/4" - 28 str. Lincoln fitting #5010

1шт.

10734K

LINK - hydraulic lift, R.H.

1шт.

10740K

LINK - hydraulic lift, L.H.

1шт.

1/2" x 1-3/4" hex. hd. bolt w/hex. nut and lockwasher

1шт.

1-3/8" x 9/16" x 12 ga. washer

1шт.

10742K

SHAFT - hydraulic control

1шт.

1/2" x 1" hex. hd. bolt w/hex. nut and lockwasher

2шт.

1/2" x 1-3/4" hex. hd. bolt w/hex. nut and lockwasher

1шт.

1/2" x 2-1/4" hex. hd. bolt w/hex. nut and lockwasher

1шт.

1-3/8" x 9/16" x 12 ga. washer

2шт.

1/4" - 28 str. Lincoln fitting #5010

1шт.

O384N

SPACER

BUSHING - 10727K and 10742K

2шт.

O2002TS

SPACER - 10734K and 10740K

2шт.

1/2" x 2-1/2" hex. hd. bolt w/hex. nut and lockwasher

2шт.
