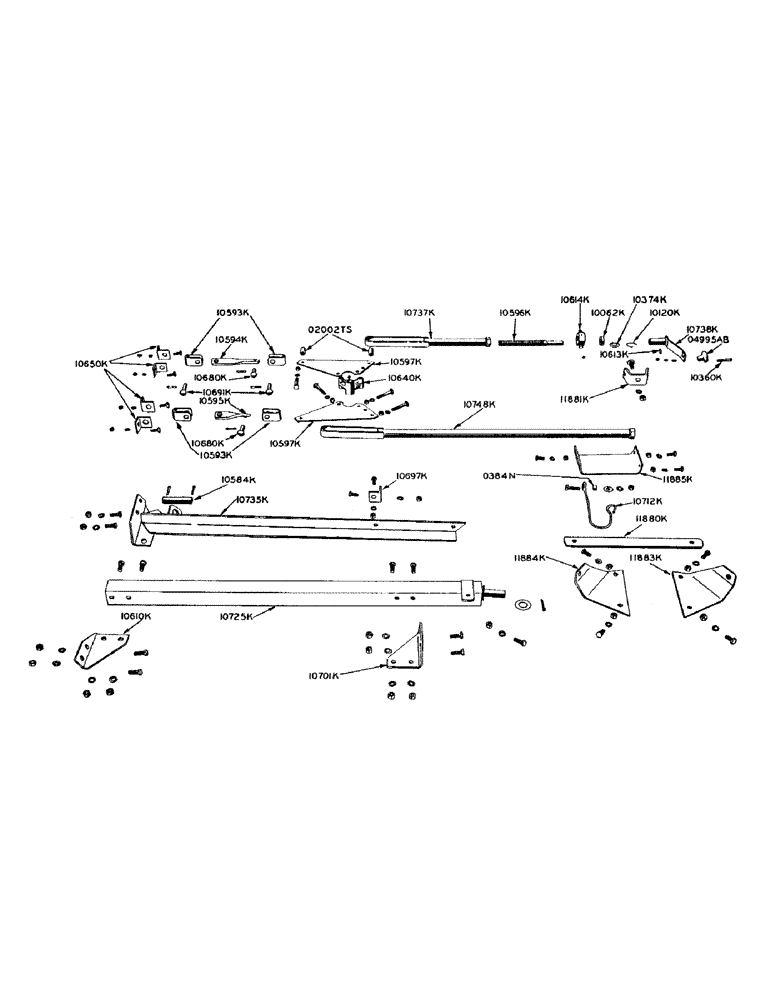

Запчасти Case IH 100 (08) - TOP FRAME & LINKAGE, 1954 & AFTER

O4995AB

X

KNOB - leveling crank

2шт.

O384N

SPACER

BUSHING - 10712K hook

1шт.

O2002TS

SPACER - crank

4шт.

10062K

BEARING (Timken #T83) - adjusting screw shaft

2шт.

10120K

SNAP RING - thrust bearing, adjusting screw shaft

2шт.

10360K

BOLT - shoulder, crank knob

2шт.

3/8" N.C. hex. nut

2шт.

3/8" lockwasher

2шт.

13/16" x 13/32" x 16 ga. washer

2шт.

10374K

WASHER (1-21/32" O.D. x 1-1/8" I.D. x 3/32" thick) - thrust bearing

2шт.

10584K

PIN - pivot bell crank

1шт.

1/4" x 1-1/2" cotter pin

2шт.

10593K

STIRRUP

4шт.

10594K

LINK - connecting, R.H. reel lift

1шт.

10595K

LINK - connecting, L.H. reel lift

1шт.

10596K

SHAFT - adjusting screw

2шт.

10597K

PLATE - bell crank

4шт.

1/2" x 2-3/4" hex. hd. bolt w/hex. nut and lockwasher

8шт.

10610K

BRACKET - top frame, R.H.

1шт.

1/2" x 1-1/4" hex. hd. bolt w/hex. nut and lockwasher

4шт.

10613K

GROOV PIN (5/16" x 1-1/4" type 3) - 10738K crank

2шт.

10614K

HOUSING - 10062K adjusting screw shaft bearing

2шт.

1/8" str. Lincoln fitting #5000

2шт.

10640K

BELL CRANK

2шт.

1/8" str. Lincoln fitting #5000

2шт.

10650K

CLIP - reel lift

4шт.

7/16" x 1-1/4" carr. bolt w/hex. nut and lockwasher

4шт.

10680K

PIN (5/8" x 2" rd. hd.) - 2 for 10593K stirrup and 2 for 10594K link

4шт.

1/4" x 1" cotter pin

4шт.

10691K

PIN (5/8" x 2-5/8" rd. hd.) - 10593K stirrup

2шт.

1/4" x 1" cotter pin

2шт.

10697K

BRACKET - top frame angle

1шт.

1/2" x 1" hex. hd. bolt w/hex. nut and lockwasher

2шт.

10701K

BRACKET - top frame, L.H.

1шт.

1/2" x 1-1/4" hex. hd. bolt w/hex. nut and lockwasher

4шт.

10712K

HOOK - stand

1шт.

10725K

ANGLE - rear, top frame

1шт.

1/2" x 1" hex. hd. bolt w/hex. nut and lockwasher

1шт.

2" x 1-1/16" x 10 ga. washer

1шт.

1/4" x 1-1/2" cotter pin

1шт.

10735K

ANGLE - front, top frame

1шт.

1/2" x 1-1/4" hex. hd. bolt w/hex. nut and lockwasher

1шт.

10737K

TUBE - adjusting screw, right

1шт.

10738K

CRANK - leveling

2шт.

10748K

TUBE - adjusting screw, left

1шт.

11880K

BAR - tie

1шт.

11881K

BRACKET - thrust bearing

2шт.

11883K

BRACKET - mount, R.H.

1шт.

1/2" x 1" hex. hd. bolt w/hex. nut and lockwasher

2шт.

11884K

BRACKET - mount, L.H.

1шт.

1/2" x 1" hex. hd. bolt w/hex. nut and lockwasher

2шт.

11885K

BRACKET - tie

1шт.

1/2" x 1" hex. hd. bolt w/hex. nut and lockwasher

3шт.

1/2" x 1-3/4" hex/ hd. bolt w/hex. nut and lockwasher

1шт.

1-3/8" x 9/16" x 12 ga. washer

1шт.
