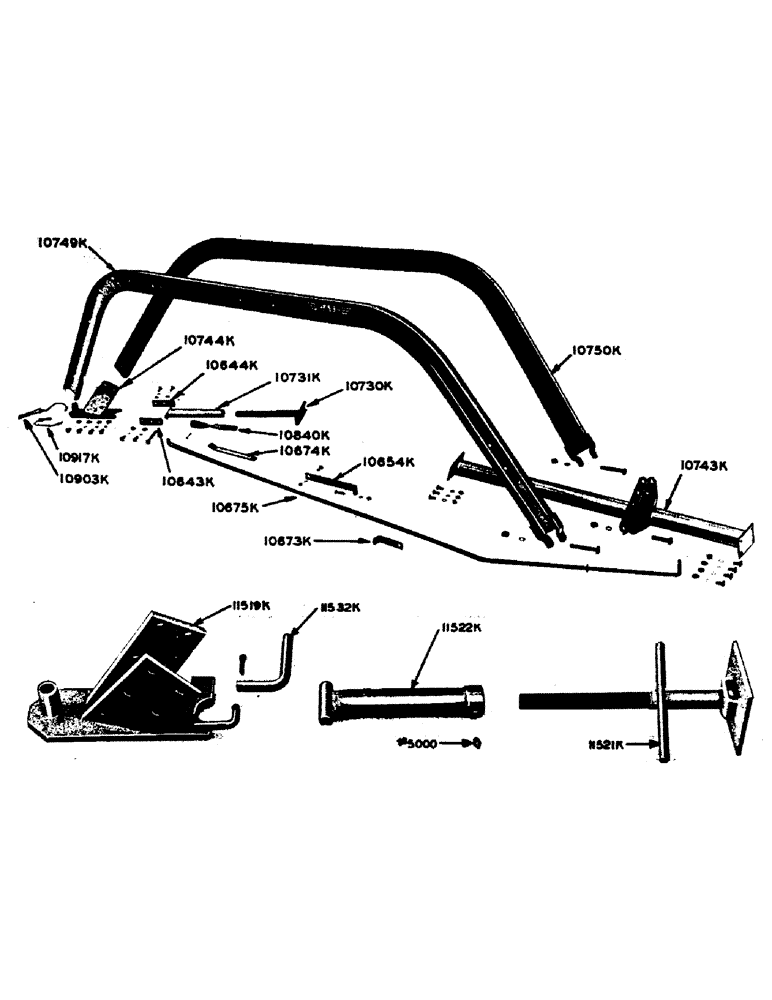

Запчасти Case IH 100 (04) - MAIN FRAME HITCH & STAND

10643K

STRAP - stand, L.H.

1шт.

1/2" x 1-1/2" hex. hd. bolt w/hex. nut and lockwasher

2шт.

10644K

STRAP - stand, R.H.

1шт.

1/2" x 1-1/2" hex. hd. bolt w/hex. nut and lockwasher

2шт.

10654K

STRAP - gear box

1шт.

1/2" x 1-1/2" hex. hd. bolt w/hex. nut and lockwasher

1шт.

1/2" x 2" hex. hd. bolt w/hex. nut and lockwasher

1шт.

10673K

BRACKET - shifter rod

1шт.

1/2" x 1-1/2" hex. hd. bolt w/hex. nut and lockwasher

1шт.

10674K

GUIDE - shifter rod

1шт.

10675K

ROD - shifter

1шт.

10730K

FOOT - stand (Prior to 1953) See 11521K

1шт.

10731K

PIPE - stand (Prior to 1953) See 11522K

1шт.

1/2" x 5-1/2" hex. hd. bolt w/hex. nut and lockwasher

1шт.

10743K

BRACE - cross, rear

1шт.

1/2" x 1" hex. hd. bolt w/hex. nut and lockwasher

7шт.

5/8" x 3" hex. hd. bolt w/hex. nut and lockwasher

1шт.

10744K

HITCH - (Prior to 1953) See 11519K

1шт.

1/2" x 1-1/4" hex. hd. bolt w/hex. nut and lockwasher

4шт.

10749K

FRAME - main, L.H.

1шт.

5/8" x 4-1/2" hex. hd. bolt w/hex. nut and lockwasher

1шт.

10750K

FRAME - main, R.H.

1шт.

5/8" x 4-1/2" hex. hd. bolt w/hex. nut and lockwasher

1шт.

10840K

STRAP - lock, stand, Serial Range: (Prior-1953)

1шт.

3/8" x 2-1/2" hex. hd. bolt w/hex. nut and lockwasher

1шт.

10903K

PIN - hitch

1шт.

10917K

PIN - spring lock

1шт.

11519K

HITCH - (1953 and after) See 10744K

1шт.

1/2" x 1-1/4" hex. hd. bolt w/hex. nut and lockwasher

4шт.

1/2" x 1-1/2" hex. hd. bolt w/hex. nut and lockwasher

2шт.

11521K

SCREW - jack stand (1953 and after) See 10730K

1шт.

11522K

TUBE - jack stand (1953 and after) See 10731K

1шт.

1/8" PT pressure relief str. Lincoln fitting #5099

1шт.

1/2" x 5-1/2" hex. hd. bolt w/hex, nut and lockwasher

1шт.

11532K

BAR - latch, jack stand (1953 and after)

1шт.

1/4" x 1" cotter pin

1шт.
