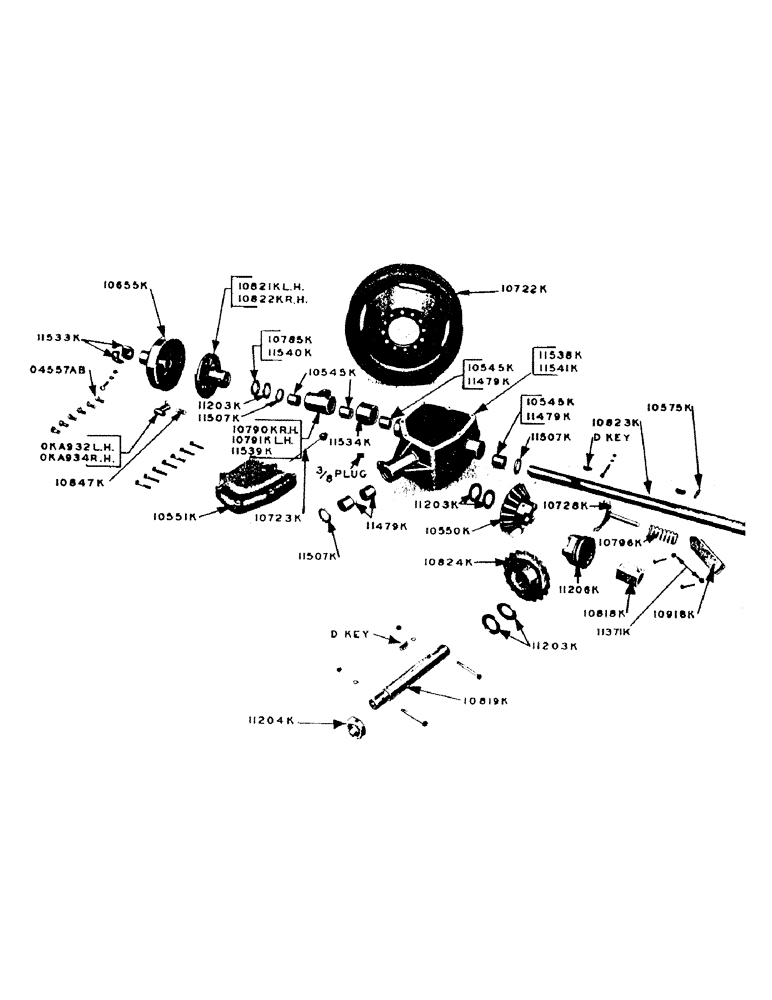

Запчасти Case IH 100 (26) - REAR AXLE WHEELS & GEAR BOX, KEY CONSTRUCTION, 1951 THRU 1953

O4557AB

BOLT - wheel hub

12шт.

OKA932

PAWL - left, wheel hub pawl plate

3шт.

OKA934

PAWL right, wheel hub pawl plate

3шт.

10545K

BUSHING

- bronze (2 for 10635K or 10791K and 2 for 11536K or 11539K)

4шт.

10547K

PLATE - cam (Use 10918K)

1шт.

10550K

GEAR (18T) - drive

1шт.

10551K

COVER - gear box

1шт.

3/8" x 1-3/4" N.C. hex. hd. bolt

7шт.

10552K

GEAR BOX (Use 11541K gear box, 11539K bearing, 11204K collar)

1шт.

10575K

X

GROOV PIN (5/16" x 1-3/4" - type 3) - for 10818 clutch sleeve

1шт.

10623K

COLLAR - thrust (Use 11204K)

1шт.

10625K

HOUSING (Use 10790K)

1шт.

10635K

HOUSING (Use 10791K)

1шт.

10655K

HUB - wheel

2шт.

1/8" str. Lincoln fitting #5000

2шт.

10722K

WHEEL - for 6.00 x 16 tire

2шт.

10723K

OIL STICK - gear box

1шт.

17028K

FORK - clutch

1шт.

10780K

SEAL (Use 11507K)

1шт.

10785K

WASHER (2-1/2" O.D. x 1-3/8" I.D. x 1/16") - axle

1шт.

10790K

BEARING - axle R.H. (Includes 2-10545K bronze bushings and 2-11507K seals) Use only with 10522K gear box

1шт.

10791K

BEARING - axle L.H. (Includes 2-10545K bronze bushings and 2-11507K seals)

1шт.

10795K

CLUTCH (Cast iron) Use 11206K

1шт.

10796K

SPRING - clutch

1шт.

10818K

SLEEVE - clutch

1шт.

"D" Woodruff key

1шт.

10819K

SHAFT - stub, gear box

1шт.

7/16" x 2-1/2" hex. hd. bolt w/hex. nut and lockwasher

1шт.

10821K

PAWL PLATE - L.H. wheel hub

1шт.

"D" Woodruff key

1шт.

10822K

PAWL PLATE - R.H. wheel hub

1шт.

"D" Woodruff key

1шт.

10823K

AXLE

1шт.

"D" Woodruff key

1шт.

10824K

GEAR (18T) - driver

1шт.

5/16" x 2-3/4" hex. hd. bolt w/light hex. nut

1шт.

"D" Woodruff key

1шт.

10847K

SPRING - pawl

6шт.

10918K

CAM ASSEMBLY - clutch rod

1шт.

1/4" x 1-1/2" hex. hd. bolt (Uses 11371K nut)

2шт.

11203K

WASHER (2-1/2" O.D. x 1-3/8" I.D. x 1/8") - for 10819K stub shaft and 10823K axle

5шт.

11204K

COLLAR - thrust, stub shaft

1шт.

5/16" x 3" hex. hd. bolt w/hex. nut

1шт.

11206K

CLUTCH - cast steel

1шт.

11371K

NUT (1/4"-20) - elastic stop for bolt in 10918K cam

2шт.

11475K

GEAR BOX (Use 11538K gear box assembly)

1шт.

11479K

BUSHING - bronze, for 11475K gear box

4шт.

11507K

SEAL - bearing (2 for 10635K L.H. bearing, 2 for 11475K gear box and 1 for 11539K R.H. bearing)

5шт.

11533K

CAP - adjusting, wheel

4шт.

3/8" x 2-3/4" carr. bolt w/hex. nut and lockwasher

2шт.

11534K

SEAL - gear box and right axle bearing

1шт.

11536K

HOUSING - use 11539K

1шт.

11538K

GEAR BOX ASSEMBLY (Includes 4-11479K bronze bushings, 2-11507K seals, 1-11534K seal, 1-3/8" pipe plug and 1-1/8" str. Lincoln fitting #5000

1шт.

11539K

BEARING - axle, R.H. - short (Includes 2-10545K bronze bushings and 1-11507K seal) To be used only with 11475K gear box

1шт.

11540K

WASHER (2-1/2" O.D. x 1-3/8" I.D. x 1/32") - axle

1шт.

11541K

GEAR BOX REPAIR ASSEMBLY (Use 11538K, 11539K, 11204K, 5/16" x 3" bolt)

1шт.
