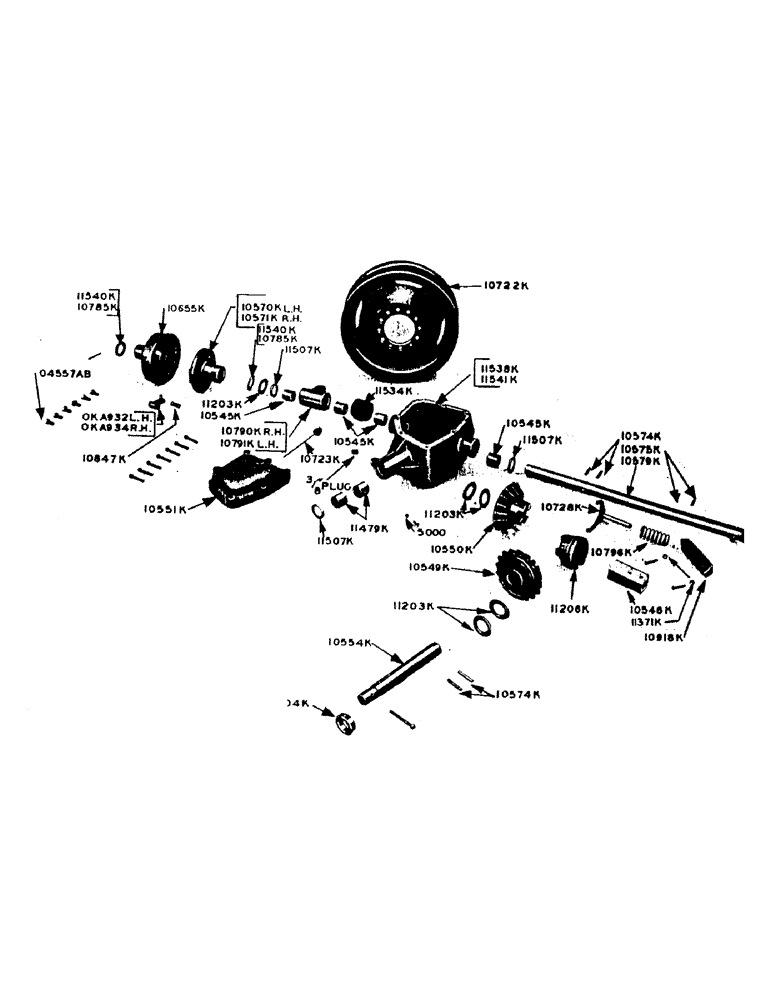

Запчасти Case IH 100 (24) - REAR AXLE WHEELS & GEAR BOX, PIN CONSTRUCTION, PRIOR TO 1951

O4557AB

BOLT - wheel hub

12шт.

OKA932

PAWL - left, wheel hub pawl plate

3шт.

OKA934

PAWL - right, wheel hub pawl plate

3шт.

10545K

BUSHING

- bronze (2 for 10625K or 10790K and 2 for 10635K or 10791K 4 for 11541K)

8шт.

10546K

SLEEVE - clutch

1шт.

10547K

PLATE (Use 10918K)

1шт.

10548K

CLUTCH - cast iron (Use 11206K)

1шт.

10549K

GEAR (18T) - driver

1шт.

10550K

GEAR (18T) - drive

1шт.

10551K

COVER - gear box

1шт.

3/8" x 1-3/4" N.C. hex. hd. bolt

7шт.

10552K

GEAR BOX (Use 11538K gear box, 11539K bearing, 11204K collar)

1шт.

10554K

SHAFT - stub, gear box

1шт.

1/2" x 2-3/4" hex. hd. bolt w/hex. nut and lockwasher

1шт.

10570K

PAWL PLATE - R.H. wheel hub

1шт.

10571K

PAWL PLATE - L.H. wheel hub

1шт.

10574K

X

GROOV PIN - (5/16" x 2-1/2" - type 3) - 2 for 10554K stub shaft and 4 for 10579K axle

6шт.

10575K

X

GROOV PIN (5/16" x 1-3/4" - type 3) - for 10570K and 10571K pawl plates

2шт.

10576K

GROOV PIN (5/16" x 2" - type 3) - for 10623K thrust collar

1шт.

10579K

AXLE

1шт.

3/8" x 2" cotter pin

2шт.

10623K

COLLAR - use 11204K

1шт.

10625K

HOUSING (Use 10790K)

1шт.

10635K

HOUSING (Use 10791K)

1шт.

10653K

SPRING - clutch (Use 10796K)

1шт.

10655K

HUB - wheel

2шт.

1/8" str. Lincoln fitting #5000

2шт.

10709K

CHAIN (AG)

SPACER - cam plate (Use 10918K)

1шт.

10722K

WHEEL - for 6.00 x 16" tire

2шт.

10723K

OIL STICK - gear box

1шт.

10728K

FORK - clutch

1шт.

10780K

SEAL - (Use 11507K)

1шт.

10785K

WASHER (2-1/2" O.D. x 1-3/8" I.D. x 1/16") - axle

1шт.

10789K

GEAR BOX (Use 11538K gear box, 11539K bearing, 11204K collar)

1шт.

10790K

BEARING - axle R.H. (Includes 2-10545K bronze bushings and 2-11507K seals) Use only with 10552K gear box

1шт.

10791K

BEARING - axle L.H. (Inlcudes 2-10545K bronze bushings and 2-11507K seals)

1шт.

10795K

CLUTCH - cast iron (Use 11206K)

1шт.

10796K

SPRING - clutch

6шт.

10847K

SPRING - pawl

1шт.

10918K

CAM - clutch rod

1шт.

1/4" x 1-1/2" hex. hd. bolt (Uses 11371K nut)

2шт.

11203K

WASHER (2-1/2" O.D. x 1-3/8" I.D. x 1/8") - 10554K stub shaft and 10579K axle

5шт.

11204K

COLLAR - thrust, for stub shaft

1шт.

5/16" x 3" hex. hd. bolt w/hex. nut

1шт.

11206K

CLUTCH (Cast steel)

1шт.

11371K

NUT (1/4-20) - elastic stop, for bolt in 10981 cam

2шт.

11475K

GEAR BOX - (Use 11538K)

1шт.

11479K

BUSHING - bronze, for 11475K gear box

4шт.

11507K

SEAL - axle bearing

4шт.

11533K

CAP - adjusting, wheel (Use in place of 10785K washer)

4шт.

3/8" x 2-3/4" carr. bolt w/hex. nut and lockwasher

2шт.

11534K

SEAL - gear box and right axle bearing

1шт.

11536K

HOUSING - use 11539K

1шт.

11538K

GEAR BOX (Includes 4-11479K bronze bushings, 2-11507K seals, 1-11534K seal, 1-3/8" pipe lug and 1-1/8" Lincoln fitting #5000)

1шт.

11539K

BEARING - axle, R.H. - short (Includes 2-10545K bushings and 1-11507K seal) Use only with 11475K gear box

1шт.

11540K

WASHER (2-1/2" O.D. x 1-3/8" I.D. x 1/32") - axle

1шт.

11541K

GEAR BOX REPAIR ASSEMBLY (Use 11538K, 11539K, 11204K, 5/16" x 3" bolt)

1шт.
