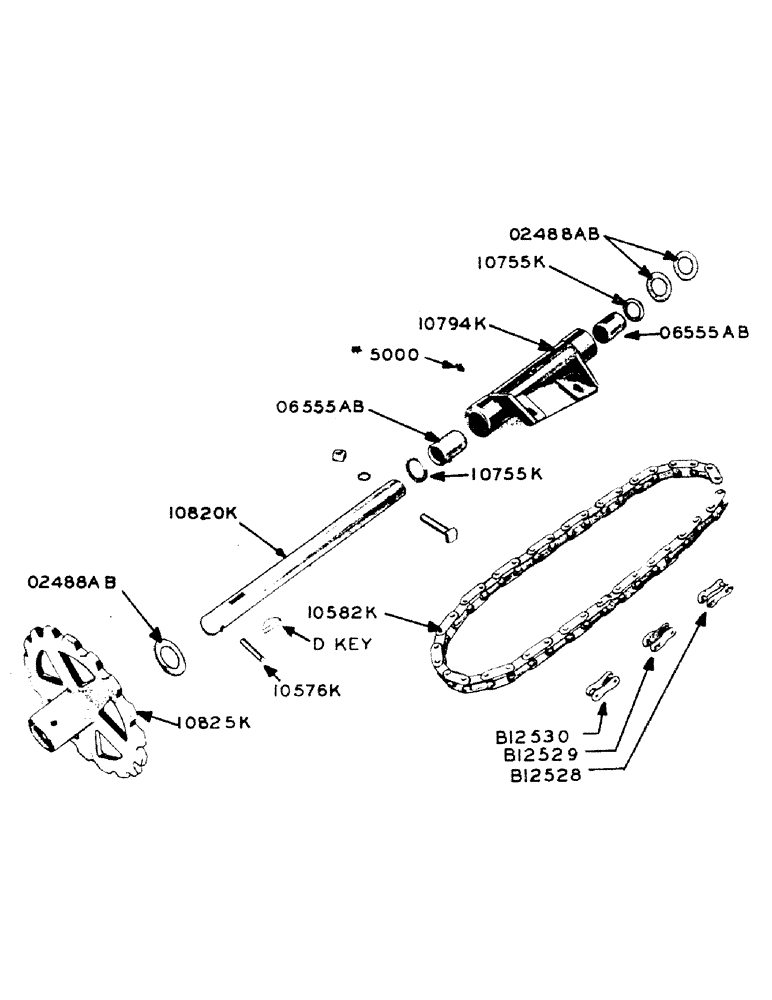

Запчасти Case IH 100 (23) - DRIVE SPROCKEY SHAFT & CHAIN, KEY CONSTRUCTION, 1951 & AFTER

B12494

CHAIN - contains 20 #C2060 1-1/2" double or extended pitch roller chain

1шт.

B12495

CHAIN - contains 10 #C2060 1-1/2" double or extended pitch roller chain

1шт.

B12496

CHAIN - contains 6 #C2060 1-1/2" double or extended pitch roller chain

1шт.

B12528

LINK

- connecting #C2060 1-1/2" extended pitch roller chain

1шт.

B12529

LINK

- offset, #C2060 1-1/2" extended pitch roller chain

1шт.

B12530

LINK

- roller, #C2060 1-1/2" extended pitch roller chain

1шт.

B12533

COTTERS - package of 25 hardened cotters for C2060 roller chain

1шт.

O2488AB

WASHER (2-1/8" O.D. x 1-9/32" I.D. x 11 ga.) - sprocket shaft

3шт.

O6555AB

BUSHING - bronze, bearing housing

2шт.

10576K

GROOV - pin (5/16" x 2" - type 3) - for 10820K sprocket shaft

1шт.

10582K

CHAIN - roller, main drive (Use 1-B12494 chain, 1-B12495 chain, 1-B12496 chain and 1-B12529 offset link #C2060)

1шт.

10656K

HOUSING - (Use 10794K)

1шт.

10755K

SEAL - drive shaft bearing

2шт.

10794K

BEARING - drive shaft (Includes 1-10656K housing, 2-O6555AB bushings and 2-10755K seals)

1шт.

1/8" str. Lincoln fitting #5000

1шт.

10820K

SHAFT - sprocket

1шт.

7/16" x 2-1/2" hex. hd. heat treated cap screw w/hex. nut and lockwasher

1шт.

10825K

SPROCKET (17T) - drive

1шт.

"D" Woodruff key

1шт.
