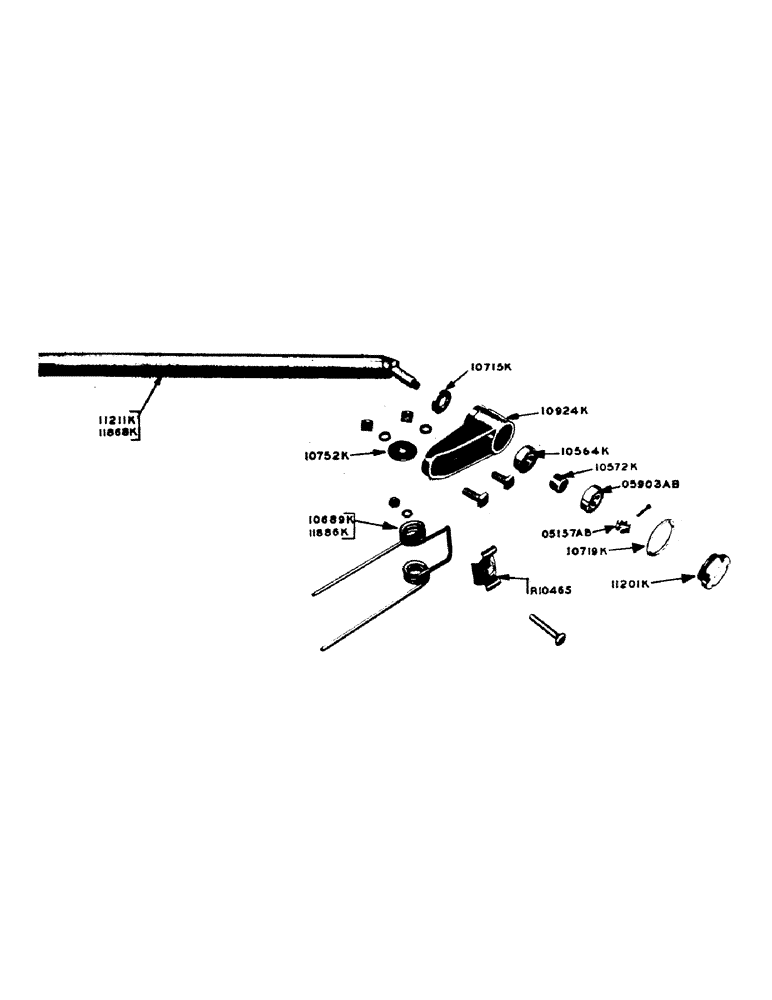

Запчасти Case IH 100 (21) - TOOTH BAR & BEARING, EXTERNAL THREAD & NUT, 1952 & AFTER

O5157AB

NUT (5/8" N.F. hex. slotted jam) - 11211K

8шт.

O5903AB

BEARING, BALL

BEARING (N.D. #3204) - tooth bar

8шт.

R590S

CLAMP

- tooth (Use R1046S)

1шт.

R1046S

CLAMP

- tooth

52шт.

3/8" x 2-1/2" carr. bolt w/hex. nut and lockwasher

52шт.

10564K

X

BEARING (N.D. #9504) - tooth bar

8шт.

10572K

SPACER - tooth bar bearing

8шт.

10689K

SPRING

TOOTH - rake (Regular)

52шт.

10689KGV

TEETH

TOOTH - rake (Regular)

52шт.

10715K

WASHER - thrust, tooth bar bearing

8шт.

10719K

LOCKWASHER (2-5/8" O.D. x 2-1/32" I.D. x 20 ga.) - bearing cap

8шт.

10752K

WASHER

(2" O.D x 1/2" I.D. x 3/16") - reel plate

8шт.

10924K

HOUSING - tooth bar bearing

8шт.

1/2" x 1-1/4" sq. hd. bolt w/hex. nut and lockwasher

8шт.

1/2" x 1-1/2" sq. hd. bolt w/hex. nut and lockwasher

8шт.

11201K

CAP - tooth bar bearing housing

8шт.

11211K

BAR - tooth (For 13 teeth) Use 11868K

1шт.

11868K

BAR - tooth (For 13 teeth)

4шт.

1/8" x 1" cotter pin

8шт.

11886K

TOOTH - rake (For peanuts)

52шт.
