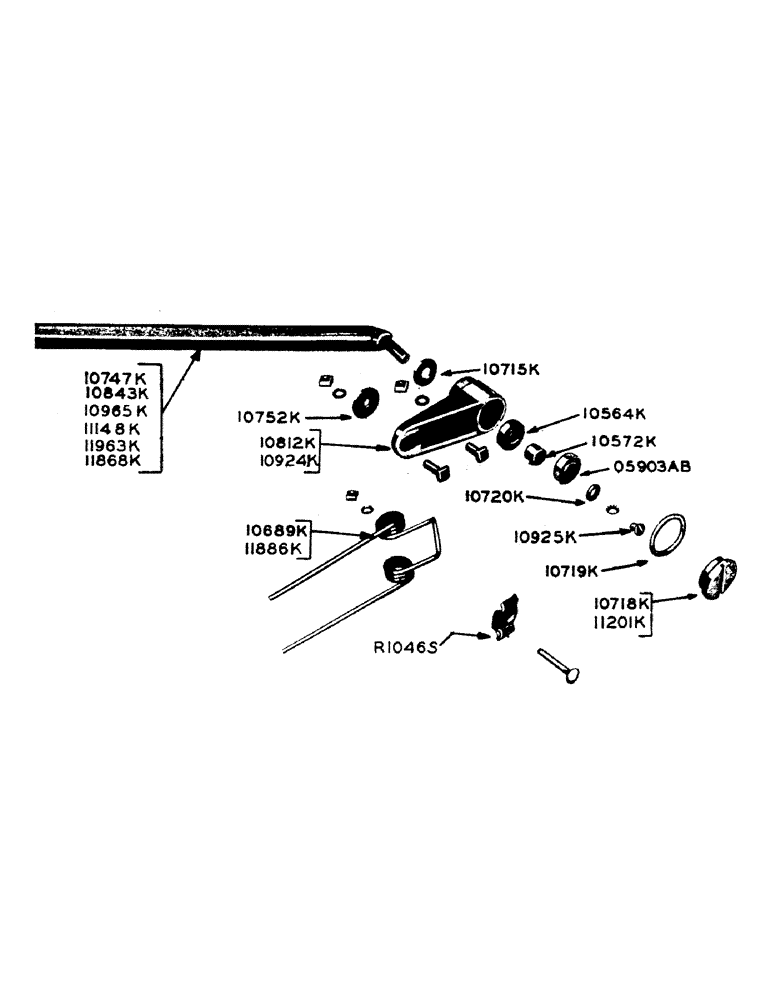

Запчасти Case IH 100 (20) - TOOTH BAR & BEARING INTERNAL THREAD & SCREW, PRIOR TO 1952

O5157AB

NUT (5/8" N.F. hex. slotted jam) - for 11868K and 11963K

8шт.

O5903AB

BEARING, BALL

BEARING (N.D. #3204) - tooth bar

8шт.

O935CK

SNAP RING - internal, tooth bearing (For 10714K)

8шт.

R590S

CLAMP

- tooth (Use R1046S)

1шт.

R1046S

CLAMP

- tooth

56шт.

3/8" x 2-1/2" carr. bolt w/hex. nut and lockwasher

56шт.

10564K

X

BEARING (N.D. #9504) - tooth bar

8шт.

10572K

SPACER - tooth bar bearing

8шт.

10689K

SPRING

TOOTH - rake (Regular)

56шт.

10689KGV

TEETH

TOOTH - rake (Regular)

56шт.

10714K

HOUSING - tooth bar bearing (Use 10924K)

1шт.

10715K

WASHER - thrust tooth bar bearing

8шт.

10718K

CAP - tooth bar bearing housing (For 10714K or 10812K) Use 11201K

1шт.

10719K

LOCKWASHER (2-5/8" O.D. x 2-1/32" I.D. x 20 ga.) - bearing cap

8шт.

10720K

WASHER - tooth bar shaft

8шт.

3/8" x 3/4" N.C. flat hd. mach. screw (L.H. tooth bar bearing)

4шт.

3/8" external tooth lockwasher

4шт.

10747K

BAR - tooth (For 14 teeth) Use 11963K bar, 2-O675H nuts and 2-11201K caps

1шт.

10752K

WASHER

(2" O.D. x 1/2" I.D. x 3/16") - reel plate

8шт.

10812K

HOUSING - tooth bar bearing (Use 10924K)

1шт.

10838K

SHIM - bearing cap (For 10714K)

8шт.

10843K

BAR - tooth (For 13 teeth) Use 11868K bar, 2-O675CH nuts and 2-11201K caps

1шт.

10924K

HOUSING - tooth bar bearing

8шт.

1/2" x 1-1/4" sq. hd. bolt w/hex. nut and lockwasher

8шт.

1/2" x 1-1/2" sq. hd. bolt w/hex. nut and lockwasher

8шт.

10925K

SCREW - hex. hd. (7/16" - 14 L.H. thread) R.H. tooth bar bearing

4шт.

3/8" external tooth lockwasher

4шт.

10965K

BAR - tooth (For 14 teeth) Use 11963K bar, 2-O675CH nuts and 2-11201K caps

1шт.

11148K

BAR - tooth (For 13 teeth) Use 11868K bar, 2-O675CH nuts and 2-11201K caps

1шт.

11201K

CAP - tooth bar bearing housing (For 10714K, 10812K or 10924K housing)

8шт.

11211K

BAR - tooth (For 13 teeth) Use 11868K

1шт.

11543K

BAR - tooth (For 14 teeth) Use 11963K

1шт.

11868K

BAR - tooth (For 13 teeth) 2-O675CH nuts and 2-11201K cap required to replace 10843K and 11148K

4шт.

1/8" x 1" cotter pin

8шт.

11886K

TOOTH - rake (For peanuts)

56шт.

11963K

BAR - tooth (For 14 teeth) 2-O675CH nuts and 2-11201K caps required to replace 10747K and 10965K and 11543K

4шт.

1/8" x 1" cotter pin

8шт.
