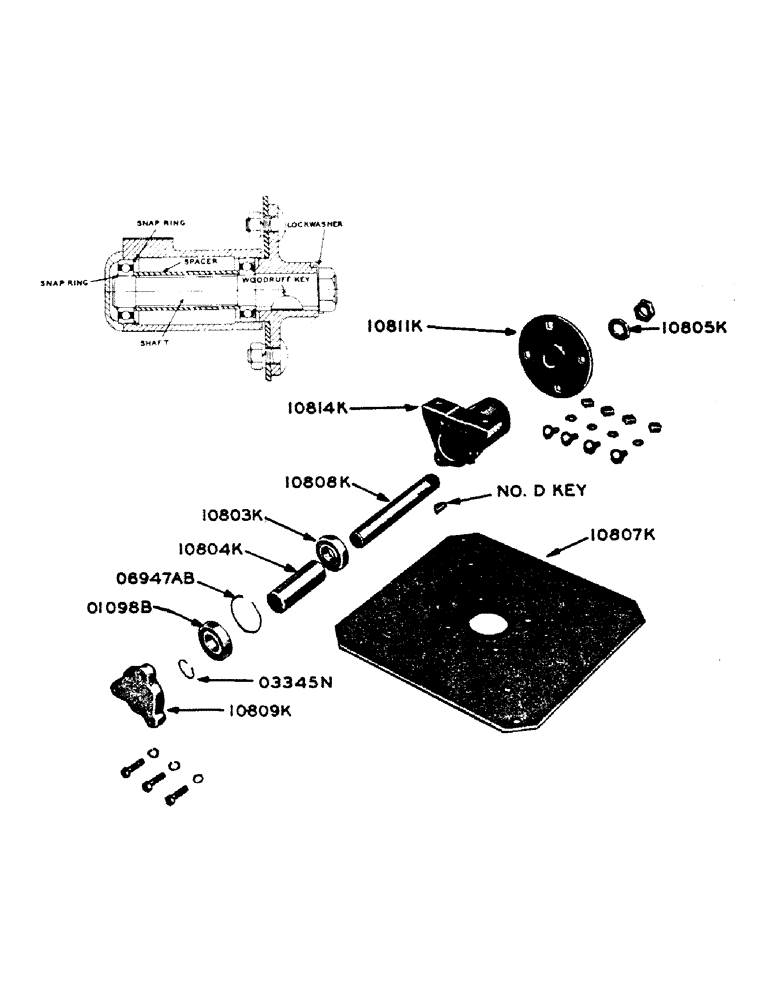

Запчасти Case IH 100 (17) - LEFT HAND REEL BEARING, BALL BEARING

O6947AB

X

SNAP RING - internal, L.H. reel head

1шт.

O1098B

BEARING (N.D. #3206) PLAIN - L.H. reel head

1шт.

O3345N

RING, SNAP

SNAP RING - external, L.H. reel head

1шт.

10803K

BEARING (N.D. #9506) SEALED - L.H. reel head

1шт.

10804K

SPACER - long, L.H. bearing

1шт.

10805K

WASHER (2" O.D. x 1-5/32" I.D. 16 ga.) - lock, reel bearing

1шт.

10807K

PLATE - reel

1шт.

10808K

SHAFT - L.H. reel head

1шт.

No D. Woodruff key

1шт.

1-1/8" N.F. hex. jam nut

1шт.

10809K

CAP - L.H. bearing

1шт.

3/8" x 1-1/4" N.C. hex. hd. cap screw

3шт.

3/8" lockwasher

3шт.

10811K

HUB - reel

1шт.

1/2" x 1-1/4" carr. bolt w/nut and lockwasher

4шт.

10814K

HOUSING - L.H. bearing

1шт.
