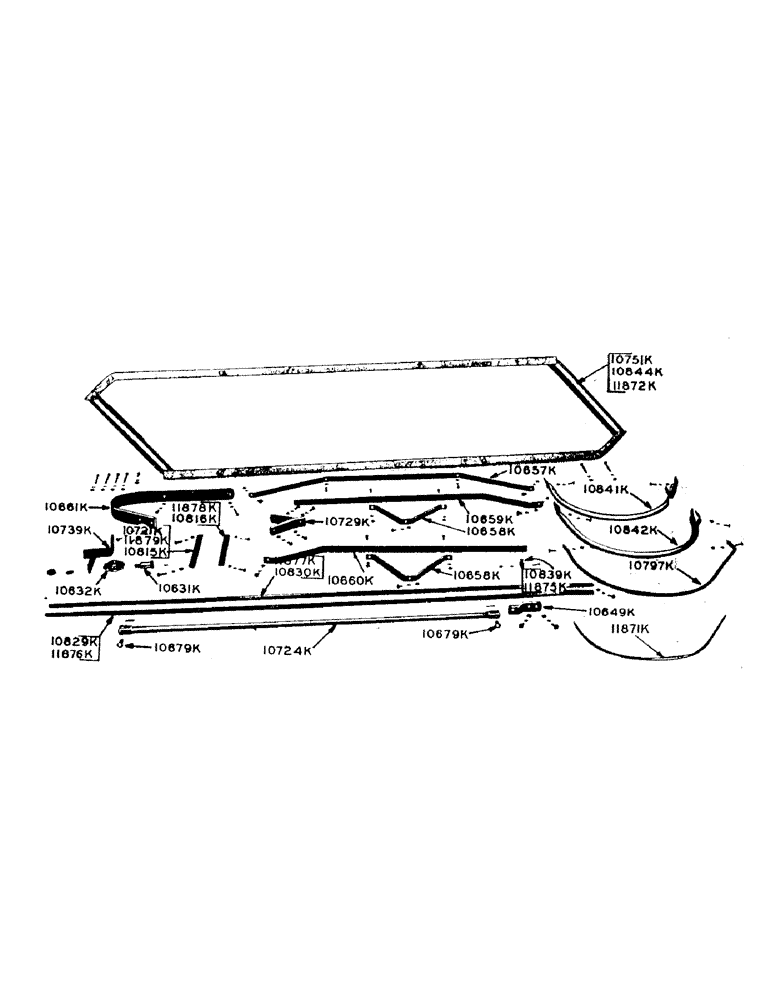

Запчасти Case IH 100 (14) - REEL FRAME
№
Артикул
Название
Примечание
Количество
10631K
STUD - idler sprocket
1шт.
1/8" str. Lincoln fitting #5000
1шт.
7/8" N.C. hex. nut
1шт.
7/8" lockwasher
1шт.
10632K
SPROCKET (8T) - idler
1шт.
10649K
CLIP - radius rod
1шт.
7/16" x 1-1/4" carr. bolt w/hex. nut and lockwasher
2шт.
10657K
BAR - tie, reel "A" frame
1шт.
7/16" x 1-1/2" hex. hd. bolt w/hex. nut and lockwasher
4шт.
10658K
BRACKET - reel "A" frame
2шт.
7/16" x 1" hex. hd. bolt w/hex. nut and lockwasher
6шт.
10659K
MEMBER - left, reel "A" frame
1шт.
7/16" x 1" hex. hd. bolt w/hex. nut and lockwasher
2шт.
10660K
MEMBER - right, reel "A" frame
1шт.
7/16" x 1" hex. hd. bolt w/hex. nut and lockwasher
2шт.
10661K
GUARD - chain
1шт.
7/16" x 1" hex. hd. bolt w/hex. nut and lockwasher
2шт.
7/16" x 1-3/4" hex. hd. bolt w/hex. nut and lockwasher
1шт.
7/16" x 3-1/2" hex. hd. bolt w/hex. nut and lockwasher
1шт.
10662K
STRIPPER - front horizontal (Used 1950 only) See 10829K and 11876K
1шт.
3/8" x 1" carr. bolt w/hex. nut and lockwasher
1шт.
10663K
STRIPPER - rear horizontal (Used 1950 only) See 10830K and 11877K
1шт.
3/8" x 1-1/4" carr. bolt w/hex. nut and lockwasher
1шт.
10664K
CLIP - guard (Used 1950 only)
4шт.
10679K
PIN - (5/8" x 1-5/8" rd. hd.) - radius rod
2шт.
1/4" x 1" cotter pin
2шт.
10721K
BRACE - front horizontal stripper (Used 1950 only) See 10815K and 11879K
1шт.
3/8" x 2-1/4" carr. bolt w/hex. nut and lockwasher
1шт.
10724K
ROD - radius
1шт.
10729K
JOINT - ball and socket
1шт.
1/2" x 1-1/4" hex. hd. bolt w/hex. nut and lockwasher
4шт.
10739K
BRACKET - idler sprocket
1шт.
10751K
FRAME - reel (For rake with 14 teeth on each bar) (Prior to 1954) See 10844K and 11872K
1шт.
1/2" x 1-1/4" hex. hd. bolt w/hex. nut and lockwasher
1шт.
1/2" x 4-1/2" hex. hd. bolt w/hex. nut and lockwasher
1шт.
10797K
STRIPPER - (Prior to 1954) See 11871K
13шт.
7/16" x 1-1/2" hex. hd. bolt w/hex. nut and lockwasher
1шт.
7/16" x 1-1/2" carr. bolt w/hex. nut and lockwasher
23шт.
7/16" x 1-3/4" carr. bolt w/hex. nut and lockwasher
2шт.
10815K
BRACE - front horizontal stripper (1951-53) See 10721K and 11879K
1шт.
3/8" x 2-1/4" carr. bolt w/hex. nut and lockwasher
1шт.
10816K
BRACE - rear horizontal stripper (Prior to 1954) See 11878K
1шт.
3/8" x 1-3/4" carr. bolt w/hex. nut and lockwasher
1шт.
10829K
STRIPPER - front horizontal (1951-53) See 10662K and 11876K
1шт.
3/8" x 1" carr. bolt w/hex. nut and lockwasher
1шт.
10830K
STRIPPER - rear horizontal (1951-53) See 10663K and 11877K
1шт.
3/8" x 1-1/4" carr. bolt w/hex. nut and lockwasher
1шт.
10839K
CLAMP - stripper (Prior to 1954) See 11875K
26шт.
3/8" x 1-1/2" carr. bolt w/hex. nut and lockwasher
24шт.
10841K
GUARD - reel, L.H.
1шт.
7/16" x 1" carr. bolt w/hex. nut and lockwasher
2шт.
10842K
GUARD - reel, R.H.
1шт.
7/16" x 1" carr. bolt w/hex. nut and lockwasher
2шт.
10844K
FRAME - reel (For rake with 13 teeth on each bar) (Prior to 1954) See 10751K and 11872K
1шт.
1/2" x 1-1/4" hex. hd. bolt w/hex. nut and lockwasher
1шт.
1/2" x 4-1/2" hex. hd. bolt w/hex. nut and lockwasher
6шт.
11871K
STRIPPER - (1954 and after) See 10797K
13шт.
11872K
FRAME - reel (For rake with 13 teeth on each bar) (1954 and after) See 10751K and 10844K
1шт.
1/2" x 1-1/4" hex. hd. bolt w/hex. nut and lockwasher
1шт.
1/2" x 4-1/2" hex. hd. bolt w/hex. nut and lockwasher
6шт.
11875K
CLAMP - stripper (1954 and after) See 10839K
52шт.
7/16" x 1-1/2" carr. bolt w/hex. nut and lockwasher
49шт.
7/16" x 1-3/4" carr. bolt w/hex. nut and lockwasher
49шт.
11876K
STRIPPER - front horizontal (1954 and after) See 10662K and 10829K
1шт.
7/16" x 1" carr. bolt w/hex. nut and lockwasher
1шт.
7/16" x 2-1/4" carr. bolt w/hex. nut and lockwasher
1шт.
11877K
STRIPPER - rear horizontal (1954 and after) See 10663K and 10830K
1шт.
11878K
BRACE - rear horizontal stripper (1954 and after) See 10816K
1шт.
7/16" x 2" carr. bolt w/hex. nut and lockwasher
1шт.
11879K
BRACE - front horizontal stripper (1954 and after) See 10815K and 10721K
1шт.
7/16" x 1-3/4" carr. bolt w/hex. nut and lockwasher
1шт.
Выбрано товаров: 71
